Home > Products > plate compactor > Best selling forward and backward vibratory plate compactorPC60/80/100

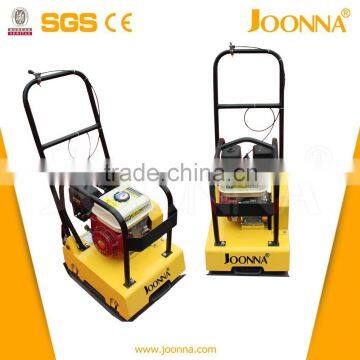

Best selling forward and backward vibratory plate compactorPC60/80/100

FOB Price

USD $500 - $1,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Road mahinery
Power Type	Gasoline	Brand Name	Joonna
Model Number	JN/PC160 Plate compactor	Place of Origin	Henan, China
Power(W)	5500	Dimension(LWH)	10005001200mm
Weight	180kg	Certification	CE,SGS,ISO,PV
Warranty	12 Months	After-sales Service Provided	Engineers available to service machinery overseas

vibrating plate compactor
1.Ductile iron base plate
2.Honda engine
3.Hydraulic system for forward & reverse
4.SGS,CE,ISO,PV

Best selling forward and backward vibratory plate compactor

Product Description

Production features:

1. Ductile iron base plate provides better durability

2. Open plate provides self cleaning

3. Easy-remove water tank with built-in valve and no hose connection is available as optional

4. Radius base plate for easy access to corners

5. Centrally located lifting bar allows easy transportation

6. Sealed belt cover to prevent sand and soil in

7.Built-in wheel for easy transportation

8.Throttle control is available as optional

Technical Specification:

Model	JN/PC90	JN/PC125	JN/PC160		JN/PC330
Engine	Single cylinder. Four stroke, Air Cooled
Engine model	Honda GX160	Honda GX160		Honda GX160	Honda GX390
Power(hp)	5.5	5.5		5.5	13
Weight(kg)	90	127		156	320
Vibration Frequency(rpm)	5500	4000		4000	7000
Compactor Force(KN)	13	25		30.5	38
Compaction Depth(mm)	300	300		500	900
Max Forward Speed(cm/s)	40	25		25	35
Efficiency(m³/h, ft²/hr)	660,7100	500,5400		570,6100	650,6950
Plat size(mm)	530*500	630*400		730*370	890*670
Package size(mm)	780540700	7504501020		8004101050	10205101350

Plate compactor will be packed by wooden case with Hob fixed to protect machine without rain and moist.
