RAMWAY RELAY DS908A-70A Remote Control Outlay Relay,solid State Latching Relay
- Shenzhen
- T/T Credit Card
You May Like
-
RAMWAY RELAY DS908A-70A Remote Control Outlay Relay,wireless Energy Meter Relay
-
RAMWAY RELAY DS908A-70A Intelligent Home Appliance,power Compensation
-
RAMWAY RELAY DS908A-70A Intelligent Home Appliance,wireless Control Relay
-
RAMWAY RELAY DS908A-70A Intelligent Home Appliance,OBU
-
RAMWAY RELAY DS908A-70A Intelligent Home Appliance,modular
-
RAMWAY RELAY DS908A-70A Pulse Control Outlay Relay,coil Relay
Product Details
| Place of Origin | Guangxi, China | Brand Name | RAMWAY | |
| Model Number | DS908A-70A | Theory | Electromagnetic Relay | |
| Usage | Protective | Size | Miniature | |
| Protect Feature | Epoxy | Contact Load | High Power |
Product Description
CONTACT DATA
Contact form | 2A & 2B |
Contact resistance | Max.2mΩ(12VDC 1A) |
Contact material | Silver alloy |
Resistance load | 70A/250VAC |
Max. switching current | 70A |
Max. switching power | 15000VA |
Electrical life | 1x104 OPS |
Mechanical life | 1x106 OPS |
CHARACTERISTICS
Insulation resistance | 1000MΩ (at 500VDC) | |
Dielectric strength | Between contact & coil | 4000VAC 1min |
Between contacts | 1800VAC 1min | |
Operation time | Max.20msec. | |
Comeback time | Max.20msec. | |
Vibration resistance | 10-55Hz, 1.5mm(DA) | |
Humidity | 98%RH, +40°C | |
Termination | PCB&QC | |
Weight | 80g | |
COIL DATA
Nominal coil voltage | Single coil resistance | Dual coil resistance |
6VDC | 20Ω | 2X10Ω |
9VDC | 36 or 55Ω | 2X18 or 2x30Ω |
12VDC | 96Ω | 2X50Ω |
|
|
|
ORDER INFO
----------------------- | DS908A | A | 70A | 9V | D | T |
Relay Model |
|
|
|
|
|
|
Connecting form | A/B/C/D/E | |||||
Terminal Type | 60A 80A 100A | |||||
Coil Voltage | 6/9/12VDC | |||||
Coil Type | Single-No mark Double-D | |||||
Contact Material | D – AgCdO12 T – AgSnO2 | |||||
Plant of latching relay

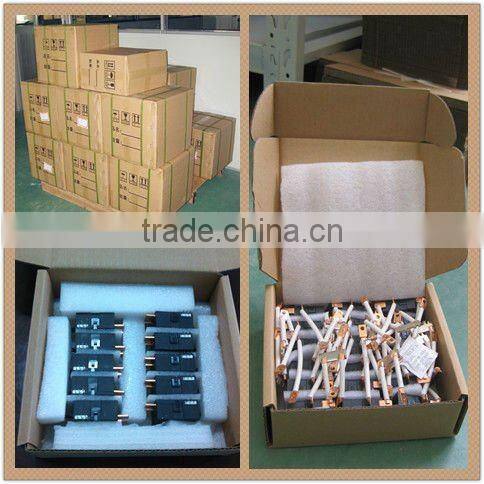

Packing
