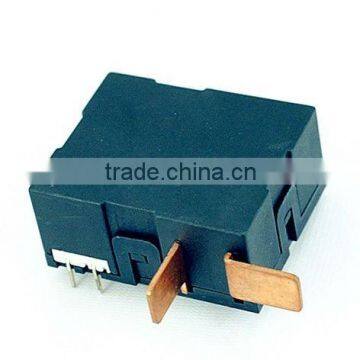

RAMWAY DS902E 9v 60a Relay Copper Wire Terminal
- Shenzhen
- T/T Credit Card
You May Like
-
DS902E-B1-60A Latching Relay With Shunt
-
RAMWAY Mini 60amps Switching Capacity Relay
-
RAMWAY Mini Relay 12v, DS902E SPST Epoxy ac Relay, Meter Switch, INA Meter Relay
-
RAMWAY Mini Relay 12v, DS902E Remote Pulse Control Switch, Meter Switch, INA Meter Relay
-
RAMWAY Mini Relay 12v, DS902E Remote Control Switch, Meter Switch, INA Meter Relay
-
RAMWAY Mini Relay 12v, DS902E 60 Amps 220v ac Relay, Asia Power Meter Realy
Product Details
| Place of Origin | Guangxi, China | Brand Name | RAMWAY | |
| Model Number | DS902E 60A | Theory | Electromagnetic Relay | |
| Usage | Protective | Size | Miniature | |
| Protect Feature | Epoxy | Contact Load | High Power |
Product Description
Contact Data | |
Contact current | 60A 250VAC |
Contact form | 1A&1B |
Contact resistance | Max.2mΩ(12VDC 1A) |
Max. switching current | 60A |
Max. switching voltage | 250VAC/110VDC |
Max. switching power | 15000VA |
Electrical life | 1X104 OPS |
Mechanical life | 1X105 OPS |
Characteristics | ||
Insulation resistance | 1000MΩ(at 500VDC) | |
Dielectric strength | Between contact& coil | 4000VAC 1min |
Between contacts | 1500VAC 1min | |
Operation time | Max.20ms | |
Comeback time | Max.20ms | |
Ambient temp. | -40°C~+70°C | |
Humidity | 98%RH,+ 40°C | |
Vibration resistance | 10-55Hz,1.5mm(DA) | |
Termination | PCB | |
Weight | 39g | |
