Ceramic Brake Pads, Brake Pads Peugeot Cars

1.Mechanial Retention

  An integral steel mesh,stud welded to the backing plate through and around which  the friction material flows.

When the friction material is cured the mechanical shear strength is greatly  enhanced.

2.Adhesive Retention

The backing plate (and the steel mesh) is coated with thermosetting phenolic  adhesive.

 This delivers the standard industry strong resistant to thermal stress.

3.Formulated Retention

The best compound for brake performance may not be the best for bonding.

In order to ensure a perfect bond we insert an “interlayer” of material.

Pecifically formulated for bonding between the backing plate and he main friction block.during molding and curing this interlayer flows andfuses organically into the main friction block,adhering perfectly to the backing plate and steel mesh.

The resulting final bond is fully secure.

1.the biggest factor affecting the life of the brake pad is the driver's high speed and frequent brake, which will make the brake pads and brake disc comprehensive service life of 15%-30%, so in order to your driving safety must maintain good driving habits;

2.disc brake slice thickness of friction materials should not be <3.5mm, brake vehicles with sensor wiring warning lamp. When the thickness of friction material <3.5mm, brake pad warning lantern lit, prompt replacement brake; brake slice thickness of friction materials should not <3mm, once reached thickness more than is necessary to change the new brake pads.

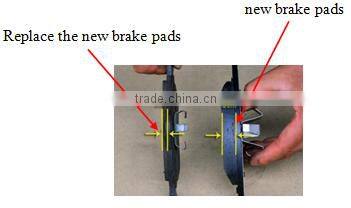

3.the replacement of the brake pad should be left and right wheel at the same time to replace

4. When the brake disc is contaminated by oil, please remove the surface of the oil and check the oil circuit system, to avoid the surface of the brake pads are contaminated, the need to change the brake pads.

the biggest difference between the ceramic brake pads and the half metal brake pads is that there is no metal, which avoids the friction between the traditional metal brake pads and the brake discs.

2, ceramic brake graphite sheet and the brake the biggest difference is used does not produce black powder is attached on the surface of the wheel hub, the steel ring oxidation so as to reduce the life affect the appearance.

3, the stability of the friction coefficient, even when the brake disc temperature up to 650 degrees, the friction coefficient of the ceramic brake pad is still maintained at around 0.45, to ensure that the vehicle has excellent braking performance, the average braking performance of more than 20%, shorten the braking distance, improve the safety of the driver.

4, ceramic has excellent thermal stability and low thermal conductivity, good wear resistance to extend the service life of the brake pads.Ordinary brake pads use life of about 30000 kilometers, while the use of ceramic brake pads for more than 50000 kilometers, but also to extend the service life of more than 20%.

1.package:

Neutral packing;

we can also pack according to customer's special request.

2.Shipping:

Within 45 days after receiving deposit.

Laizhou Haichen Machinery Co., Ltd is located in Shangdong province of China,specializing in producing brake discs, brake drums, brake pads and brake rotors. It was established in 2014. With a large workshop, professional production equipment, a world-leading technology and formulations. Blanks from the furnace to the production, processing, packaging and cleaning stop production, including the balance,the line of drilling, decromet, painting, galvanizing production and processing. OEM number or sample can be processed production. We have a strict and complete quality contral system which ensures that each product can meet customers' requiremnts.

     Our plant and equipment

Contact us
