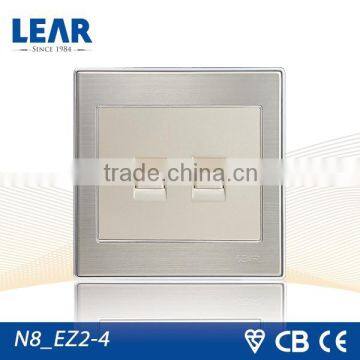

N8 Series 2 Gang Telphone Wall Socket
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Shanghai Port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | LEAR | |
| Model Number | N8 Series | Size | 86*86cm | |
| Max. Voltage | 250V | Mechanical Life | More than 50,000 times On-Off |
Product Description
Product Feature
• The faceplate is made of prime 304 grade stainless steel with HL polish
• More safety and reliable by using 1mm steel back frame
• High grade PC material with fire resistance capability keep good figure and color
• High quality copper applied for low insulation resistance and good conductivity
Outline size: | 80X80,86X86mm |
| Installation size: | 60 |
| Faceplate Material: | PC POM PA66 and 304 grade stainless steel |
| Contact of switch: | Extensive silver alloy point |
| Way of installation | Concealed installation |
| Copper: | QSn5.6-0.1 H62 Hpb59 |
Switch Specification
| Mechanical lifetime | ≥40000 |
| Heat-resistant | 100 • C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision | ≤0.05M Ω |
Socket Specification
| Mechanical lifetime | ≥5000 |
| Heat-resistant | 100 • C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision | ≤0.05M Ω |
| Electric Strength | 2000 V ~1 min |
