On Sales N7 Series Electrical Outlet Multiple Socket
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Shanghai port
- T/T Credit Card
You May Like
Product Details
| Brand Name | LEAR | Model Number | N7_DH-13 | |
| Size | 86mm*86mm | Max. Current | 13AX | |
| Max. Voltage | 250V AC | Mechanical Life | 40000 times |
Product Description
Characteristics
N7 series switches&sockets 7MM Ultra-Slim Profile with Streamline Appearance, Various Colors Available For Your Choice. • The faceplate is made of first class PC material • More safety and reliable by using 1mm steel back frame • High grade PC material with fire resistance capability keep good figure and color • High quality copper applied for low insulation resistance and good conductivity |
Main | |
Range of product | N7 series |
| Product code | N7_DH-13 |
| Product name | N7 series electrical outlet multiple socket |
| Product or component type | Socket-outlet |
| Device presentation | Complete mechanism |
| Outlet standard | Universal |
| Complementary | |
| Outlet poles configuration | 2P+E |
| Pilot light | None |
| Number of gangs | 1 gang |
| Colour tint | White,Silver ,Champagne,Off-white color |
| Projecting depth | 7 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | >= 35 mm |
| Rated current | 13 AX |
| Rated operational voltage | 250 V AC |
| Network frequency | 50-60HZ |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Brass pillar terminal |
Terminal identifier
| L N E |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 2 x 4 mm² 3 x 2.5 mm² |
| Width | 86mm |
| Height | 86mm |
| Material | |
| Front-plate | Polycarbonate |
| Back-frame | 1mm steel with insulation varnish |
| Back-base | Polycarbonate |
| Switch contacts material | Silver |
| Conductive parts | Brass and phosphor bronze |
| Environment | |
Standards
| IEC 60884 |
| Ambient air temperature for operation | -5...40 °C |
| Relative humidity | 0...95 % |
| Environmental characteristic | Indoor use |
| Contractual warranty | |
| Period | 12 YEARS |

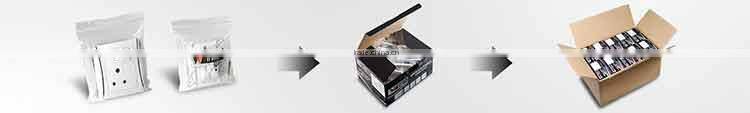

Packaging & Shipping
Packaging&Shipping
| Quantity per Carton | 10PCS/Box,100PCS/Carton |
| Carton Dimension | 50.5x33x22.8cm |
| G.W/Carton | |
| N.W/Carton |
Certifications
Customers
Company Information
Contact us
Our Services
Our Services
- We provide 24 hours whole day online service. your inquiry will be on our prority attention.
- More than 10 years warranty for our switches and sockets.
- We can customise your own brand imagin with professional team for design and promotion.
- Our principle is one solo agent in a country, so protect your profit at the largest extent.
We strive to provide more best support for you.
