Home > Products > Powered by Perkins Engine > High quality 20KVA water cooled diesel generator powered by 404D-22G engine
High quality 20KVA water cooled diesel generator powered by 404D-22G engine
- Shanghai
- T/T L/C D/P D/A
You May Like
-
25KVA power diesel generator prices 404D-22TG engine
-
Original 350kva water cooled open diesel generators diesel price
-
Generator 300kva water cooled diesel generator open genset
-
Generator 500kva water cooled diesel open generators diesel price
Quality Choice
-
200KW water cooled diesel generator open diesel genset
-
UK PKS diesel generator
Product Details
| Place of Origin | Jiangsu, China | Brand Name | KANGDONG | |
| Model Number | KD-16GF | Output Type | AC Three Phase | |
| Speed | 1500RPM/1800RPM | Frequency | 50HZ/60HZ | |
| Rated Power | 16KW | Rated Voltage | 400V | |
| Rated Current | 28.8A |
Product Description

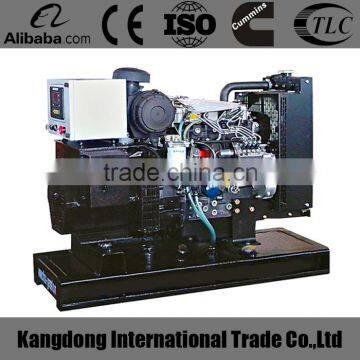

20KVA water cooled diesel generator powered by 404D-22G engine
The main parameters of the set | |
The model of the unit: | KD-16GF |
Power: | 20KVA/16KW |
Rated voltage: | 400V |
Rated current: | 28.8A |
Rated frequency: | 50Hz |
The factor of rated power | COS=0.8lagging |
The regulating rate of steady voltage: | ≤1% |
The regulating rate of instantaneous voltage: | -15%~ +20% |
The time of steady voltage: | ≤1.5sec |
The waving rate of voltage: | ≤1.0% |
The regulating rate of steady frequency: | ≤3% |
The regulating rate of instantaneous frequency: | ≤±10% |
The time of steady frequency: | 3sec |
The waving rate of frequency: | ≤1% |
The waste of fuel with full load: | ≤228g/kwh |
Dimension (open type) (L×W×H) (mm): | 1350*530*1000 |
Package(plywood case) dimension (open type) (L×W×H)(mm) | 1500*730*1200 |
Net weight (open type) (kg): | 480 |
Gross weight (open type) (kg): | 580 |
The main parameters of the diesel engine | |
Brand: | PERKINS |
Model: | 404D-22G |
Type: | four strokes, waste gas turbine boost,direct spurting type |
Cylinder: | 4 vertical cylinders |
Cooling way: | water cooling |
Rotating speed: | 1500r/min |
The regulation of rotating speed: | Electric speed regulator |
Starting way: | DC12V starting with electricity |
The main parameters of the generator | |
Brand: | Stamford (British wholly foreign-owned enterprise) |
Model : | |
Type: | Brushless ,Self-excite, AVR automatic voltage regulating |
The connecting way of the phase: | three phases four lines |
Insulation degree: | H degree |
Enclosure degree: | IP21-IP23 |
PE Plastic wrapped or plywood cases for option
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
FAQ:
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
