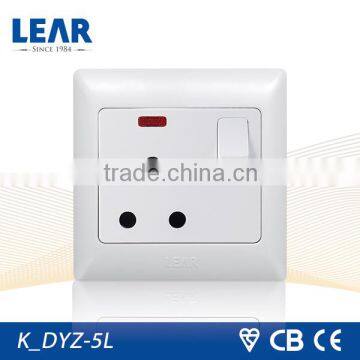

Hot selling copper socket

FOB Price

Negotiable / Piece

1000 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	LEAR	Model Number	K_DYZ-15L
Size	86mm*86mm	Max. Current	15AX
Max. Voltage	250V AC	Mechanical Life	40000 times

Product Description

_{Characteristics}

Knight series switches&sockets

4mm ultra-slim profile for the modern home or commercial space.A wide variety of standard, metallic or customized colours to choose from; providing design solutions for any decor. High-qualitypolycarbonate switch plates that provide our widest variety of functions and value-added features.

1, PC and stainless steel front-plate with Carbon Grey, Metallic Sliver, Rose Colors can be offered for your choice

2, Top quality polycarbonate design with Ultra-slim profiles ( Only 6 mm depth)

3, Easy replaceable switch plates to renew your modern decor anytime

5, Inside Electric Conductive Parts Used Top Class Phosphor Bronze, And Brass, Ensure Our Switch & Socket To Have A Good Electrical Conductivity And Lasting Elasticity

6, Extra large wiring terminals for easy connections

7, Ultra-slim steel switch base(1.3 mm depth ), prolonging its using time, and easy for installation

8, A ultra-large frame can be offered to seamlessly hold many sockets and switches in installation

Main
Range of product	Knight series
Product code	K_DYZ-15L
Product name	Hot selling copper socket
Product or component type	Socket-outlet
Device presentation	Complete mechanism
Outlet standard	BS standard,Indian standard,Sri Lanka standart
Complementary
Outlet poles configuration	2P+E
Pilot light	Neon
Number of gangs	1 gang
Colour tint	White,Silver ,Champagne,Off-white color
Projecting depth	6 mm
Device mounting	Flush
Mounting support	Wall mounted
Fixing mode	By screw M3.5
Fixing center	60.3 mm
Embedding depth	>= 35 mm
Rated current	13 AX
Rated operational voltage	250 V AC
Network frequency	50-60HZ
Contacts material	Brass and phosphor bronze
Connections - terminals	Brass pillar terminal
Terminal identifier	L N E
Tightening torque	0.4 N.m
Clamping connection capacity	2 x 4 mm² 3 x 2.5 mm²
Width	86mm
Height	86mm
Material
Front-plate	Polycarbonate
Back-frame	1.3mm steel with insulation varnish
Back-base	Polycarbonate
Switch contacts material	Silver
Conductive parts	Brass and phosphor bronze
Environment
Standards	IEC 60884 BS 546
Ambient air temperature for operation	-5...40 °C
Relative humidity	0...95 %
Environmental characteristic	Indoor use
Contractual warranty
Period	15 YEARS

Packaging & Shipping

Packaging&Shipping

Quantity per Carton	10PCS/Box,100PCS/Carton
Carton Dimension	50.5x33x22.8cm
G.W/Carton
N.W/Carton
