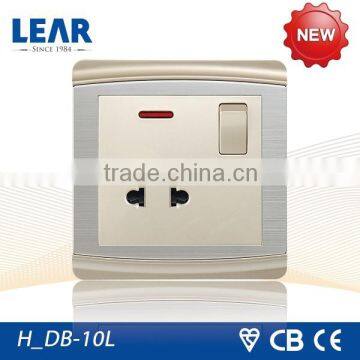

New arrival Honor range switch socket with neon
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Shanghai port
- T/T Credit Card
You May Like
Product Details
| Brand Name | LEAR | Model Number | H_DB-16L | |
| Size | 86mm*86mm | Max. Current | 16AX | |
| Max. Voltage | 250V AC | Mechanical Life | 40000 times |
Product Description
Product Description
Characteristics
Honor series switches&sockets Concise and simple profile, easy installation. Fire resistant by adopting high strength PC materisal. Inside electric struction using top class Phosphor copper for good electric conduction. |
Main | |
Range of product | Honor series |
| Product code | H_DB-16L |
| Product name | 1 gang switched socket with neon (2 pins universal socket) |
| Product or component type | Socket-outlet |
| Device presentation | Complete mechanism |
| Outlet standard | Universal |
| Complementary | |
| Outlet poles configuration | 2P |
| Pilot light | Neon indicator |
| Number of gangs | 1 gang |
| Colour tint | White,champagne,silver |
| Projecting depth | 8 mm |
| Device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | >= 35 mm |
| Rated current | 16 AX |
| Rated operational voltage | 250 V AC |
| Network frequency | 50-60HZ |
| Contacts material | Brass and phosphor bronze |
| Connections - terminals | Brass pillar terminal |
Terminal identifier
| N L |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | 2.5 mm² |
| Width | 86mm |
| Height | 86mm |
| Material | |
| Front-plate | Polycarbonate |
| Back-frame | 1.2mm steel with insulation varnish |
| Back-base | Polycarbonate |
| Switch contacts material | Silver |
| Conductive parts | Brass and phosphor bronze |
| Environment | |
Standards
| IEC 60884 |
| Ambient air temperature for operation | -5...40 °C |
| Relative humidity | 0...95 % |
| Environmental characteristic | Indoor use |
| Contractual warranty | |
| Period | 10 YEARS |
Packaging & Shipping
Packaging&Shipping
| Quantity per Carton | 10PCS/Box,100PCS/Carton |
| Carton Dimension | 50.5x33x22.8cm |
| G.W/Carton | |
| N.W/Carton |
