CE Approved 50KW Deutz Diesel Generator Set With Low Fuel Consumption

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

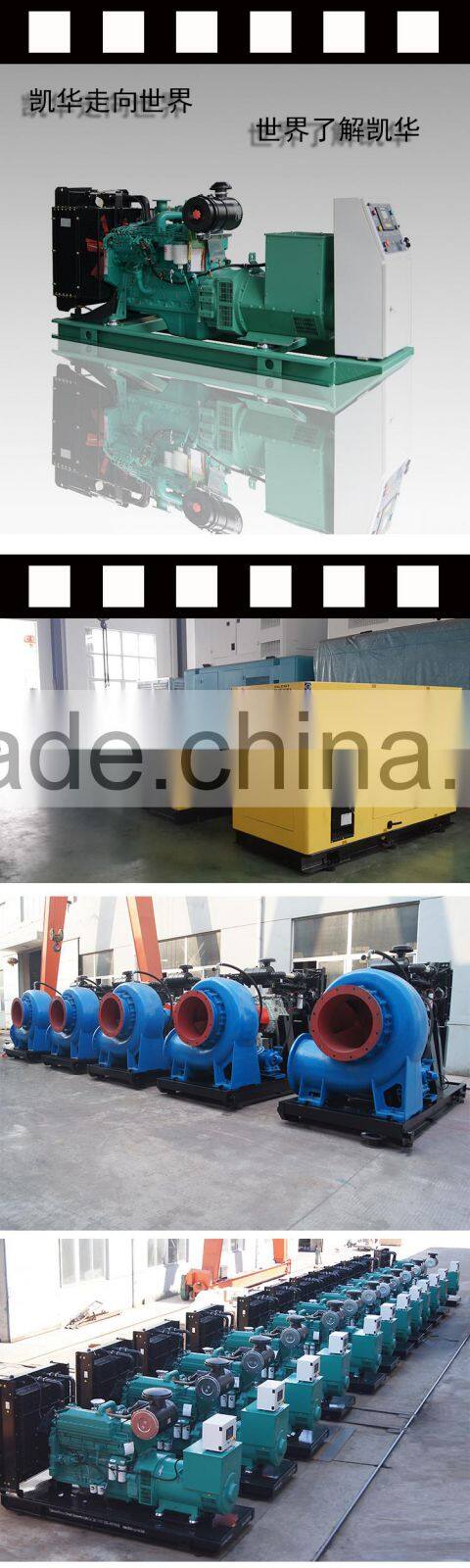

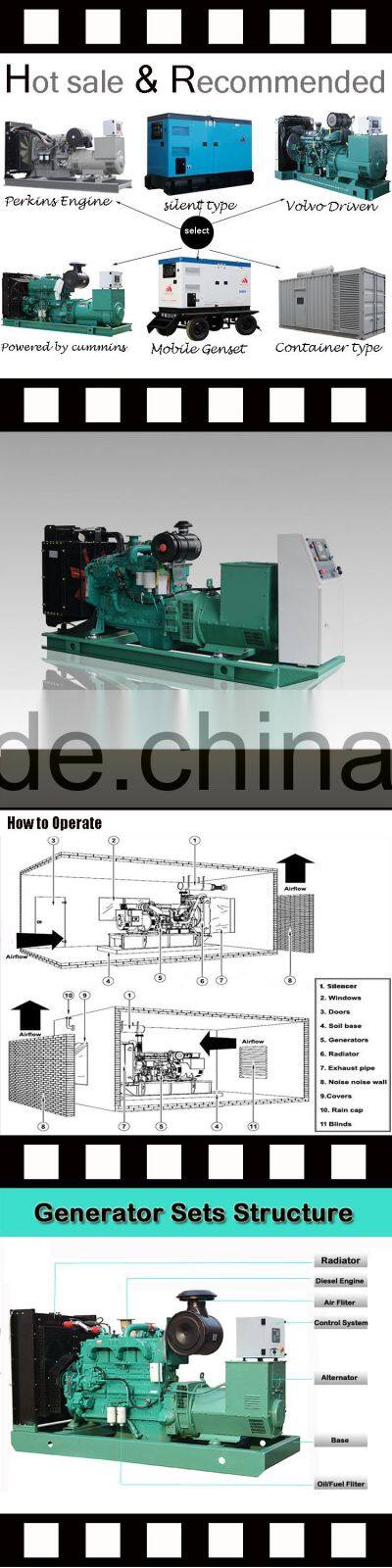

CE approved 50KW Deutz diesel generator set with low fuel consumption

Product Description

Technical Specification
1. Specification of genset
Gensets model				KH-50GF
Prime power				50KW
Rated Voltage				400/230V
Rated frequency(HZ)				50
Rated Speed				1500rpm
Power Factor				0.8(lagging)
Dimensions(mm) (LWH)				19507501650
Net Weight(kg)				950
2. Specification of diesel engine
Engine brand				Deutz
Engine model				TD226B-4D
Number of Cylinders				4
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbo
Bore×Stroke (mm×mm)				105×120
Displacement (Liter)				26.4
Compression Ratio				19.0:1
Speed Governor				Mechanical Governor
Cooling System				Forced Water Cooling Cycle
Fuel Consumption, Stand-by (L/h)				13.8
Starting Method				DC24V Electrical starting
3. Specification of alternator
Alternator brand				Kaihua
Alternator model				KH224E
Connecting Type				3 Phases and 4 Wires
Number of Bearing				1
Protection Grade				IP21
Altitude				≤1000m
Exciter Type				Brushless,Self-exciting,AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%—+20%
4. Specification of control Panel(with Harsen controller)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with alarm of low oil pressure,high water temperature,over speed,over load protection function.
