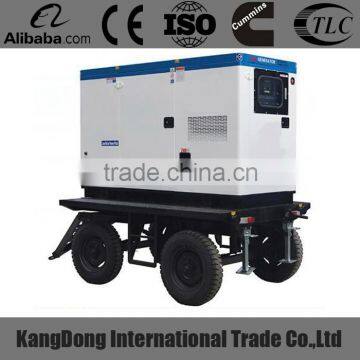

China Original Weichai Deutz 20kW Mobile Silent Type Diesel Generator Sets
US$ 6,500 - 7,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Prime power 125KVA mobile generator trailer for sale
-
China Original Weichai Deutz 20kW Mobile Type Diesel Generator Sets
-
China Assembled 400KW Mobile Silent Type Volvo Penta Diesel Generator Sets
-
30KW Trailer silent power generation equipment best price
-
300KW China assembled Deutz trailer diesel generator
-
125KVA Trailer Industrial Generator Sets
Product Details
| Place of Origin | Jiangsu, China | Brand Name | KangDong | |
| Model Number | KD-20GF | Output Type | AC Three Phase | |
| Speed | 1500RPM | Frequency | 50Hz | |
| Rated Power | 20kW | Rated Voltage | 220/380v | |
| Rated Current | 36A |
Product Description
Product Description
China Original Weichai Deutz 20kW Mobile Silent Type Diesel Generator Sets
| 1. Specification of genset | |||||||
| Gensets Model | KH-20GF | ||||||
| Prime Power(KW) | 20(25KVA) | ||||||
| Standby Power(KW) | 22(27.5KVA) | ||||||
| Rated Voltage(V) | 220 | ||||||
| Rated Current(A) | 36 | ||||||
| Rated Frequency(HZ) | 50 | ||||||
| Rated Speed (rpm) | 1500 | ||||||
| Power Factor(COS) | 0.8(lagging) | ||||||
| Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97;A 10% overload capability is available for a period of 1 hour within a 12-hour of operation. | |||||||
| Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | |||||||
| 2. Specification of diesel engine | |||||||
| Engine brand | Deutz | ||||||
| Engine model | D226B-3D | ||||||
| Number of Cylinders | 3 | ||||||
| Cylinder arrangement | Vertical in-line | ||||||
| Cycle | Four stroke | ||||||
| Aspiration | Naturally aspirated | ||||||
| Fuel System | Direct Injection | ||||||
| Bore×Stroke (mm×mm) | 105x120 | ||||||
| Displacement (Liter) | 3.12 | ||||||
| Compression Ratio | 16.3:1 | ||||||
| Speed Governor | Mechanical | ||||||
| Cooling System | Water Cooled | ||||||
| Total lubrication system capacity (L) | 18 | ||||||
| Fuel Consumption at 100% Load (g/Kw.h) | 208 | ||||||
| Starting Method | DC24V electrical starting | ||||||
| 3. Specification of alternator | |||||||
| Alternator brand | Leroy Somer | ||||||
| Orgin | Fujian | ||||||
| Alternator model | LSAP42C | ||||||
| Number of Phase | 3 | ||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||
| Number of Bearing | 1 | ||||||
| Protection Grade | IP23 | ||||||
| Altitude | ≤1000m | ||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||
| Insulation Class | H | ||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||
| THF | ≤2% | ||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||
| Transient State Voltage | ≤-15%~+20% | ||||||
Packaging & Shipping
Plywood case for option if needs packaging
Our Services
Warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
