meanwell netzteil 24V water proof
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | meanwell | |
| Model Number | lpv-20-24 | Output Type | DC | |
| Connection | Other, connect to wire |
Product Description
Specifications

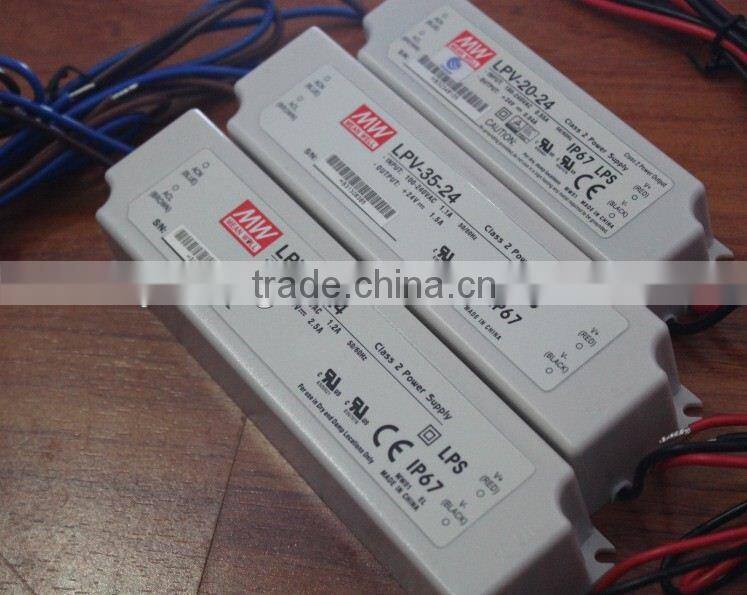

meanwell netzteilmean well power lpv-20-24Water proof IP67
Input:100-240V
Output:24VDC
meanwell netzteil
MeanWell Power supplies
Part Number |
Voltage (max/rated) |
Current (amps) |
Power (watts) |
R&N (mV) |
Efficiency (%) |
|---|---|---|---|---|---|
| LPV-20-24 | 24V | 1A | 20.2W | 150mV | 83% |
General Specifications
| Input Voltage | 90 ~ 264Vac |
|---|---|
| Input Frequency | 47 ~ 63Hz |
| Input Current | 0.55A/115Vac 0.35A/230Vac |
| Inrush Current | 35A/115Vac 70A/230Vac, cold start |
| Leakage Current | 0.25mA/ 240Vac |
| Voltage Tolerance | ±5.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±2.0% |
| Set Up, Rise Time | 500ms, 20ms / 230Vac 500ms, 20ms / 115Vac at full load |
| Hold Up Time | 50ms/230Vac 16ms/115Vac at full load |
| Over Current Protection | 110 ~ 150% rated output power |
| Hiccup mode, recovers automatically after fault condition is removed | |
| Over Voltage Protection | Shut off o/p voltage, clamping by zener diode |
| Working Temperature | -30°C ~ +70°C (Refer to output load derating curve) |
| Working Humidity | 20 ~ 90% RH non-condensing |
| Storage Temperature, Humidity | -40°C ~ +80°C, 10 ~ 95% RH |
| Temperature Coefficient | ±0.03%/°C (0 ~ 50°C) |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Withstand Voltage | I/P-O/P:3KVAC |
| Isolation Resistance | I/P-O/P:>100M Ohms/500VDC 25°C 70% RH |
| Safety Standards | UL879, UL1310 Class 2, CAN/CSA C22.2 No. 223-M91, IP67 approved |
| Design refers toTUV EN60950-1, EN61347-2-13 | |
| EMC | Compliance to EN55022 (CISPR22) Class B; EN61000-3-2 Class A; EN61000-3-3; ENV50204; |
| EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A | |
| MTBF | 786.5Khrs min. MIL-HDBK-217F (25°C) |
| Dimensions | 118 x 35 x 26mm |

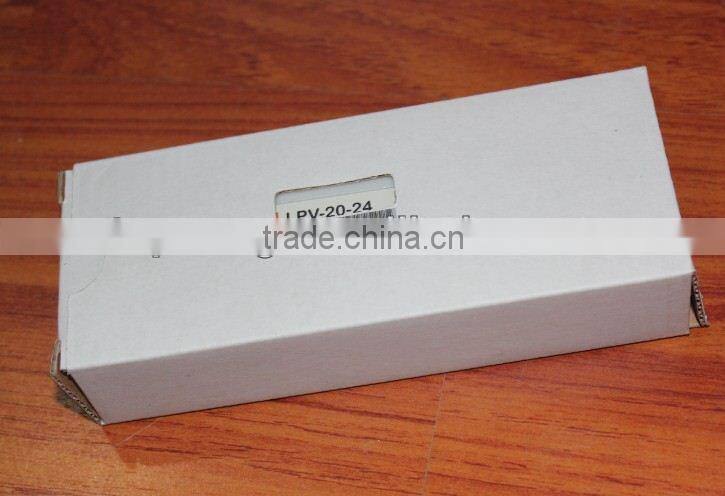

Packing: White box
We, Topsung clarified that all of our Meanwell Power supplies are 100% original which imported from Taiwan.And we have used these power supplies especially for our LED high bay, LED tunnel light, LED streetlight, LED panel light,ect;
And Introduction for more Meanwell Power supplies we can offer:
Meanwell led power supplies from the HLG, CLG, PLC, CEN, ELN, LP, ULP & PLP Series form a complete range of LED power solutions for both indoor and outdoor use. Ranging from 18W to 240W, with or without PFC, and complying with UL1310 & EN61347 regulations, specific to LED related applications, these LED power supply ranges are suitable for LED lighting and moving sign applications. The IP ratings of some of these led power supplies lend themselves for use in other applications where ingress of dust or moisture is a concern with protection levels making them splashproof & waterproof.
Warranty: 3 years provided by Meanwell (need to send to us)
Applications
- moving signs
- Backlighting
- LED-based decorative lighting
- LED-based architectural lighting
- LED stage and theater lighting
- LED electronic displays
mean well power LPV-20-24
