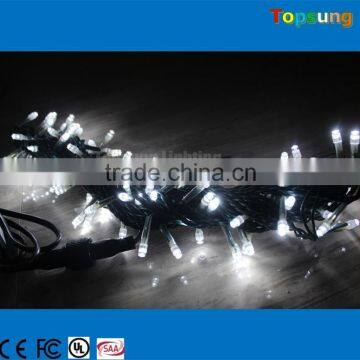

Commodity: Strong PVC 12v white lights wedding connectable

Specification and Features

Connect Up To 20 Sets With Ease

If for 12V/24V, max 5 sets connectable

• Ideal for Parties and Christmas
• Leave Outside All Year

We use high brightness LEDs for our string Lights: Here is the MCD for each bulb:

Red (120-150mcd)

Green (400-700mcd)

Yellow (120-150mcd)

Blue (150-250mcd)

white(550-700mcd)

pink(200-350)

Warm White (550-700) Beam Angle 120°

Strong PVC cables for white lights wedding

1) 1.9mm PVC cable (0.12*9 copper wire)

2) 2.0mm PVC cable (0.12*11 copper wire)

3) 2.9~3.2mm Rubber cables

Anti UV Anti-weather material suitable for cold, web, bad weather

Max Connectable Quantity: 15-20 pcs suggest

Color of white lights wedding

Red, Yellow, Blue, Green, Orange, pink, purple, RGB, Warm White, White

PVC Cable for white lights weddingClear White cable, dark green cable, black cable

INSTRUCTIONS FOR USE

·This product consists of Light Emitting Diodes (LEDs) connected in a series and parallel arrangement and is used to extend connectable series of light sets.

·This product is fitted with a connector suitable for connecting additional sets of LEDs.

·To connect to another connectable light set:

a)Disconnect the light set from the power supply

b)Unscrew the connector cover at the end of the light set being extended.

c)Remove 3 pin plug, (if fitted) from the new light set by unscrewing the connector.

d)Connect the new light set to the end of the light set being extended.

e)Make sure all gaskets are in place and connectors are secure with all the covers screwed on tight.

f)Always make sure the connector cover is in place at the end of the last light set.

·A maximum of 5000 LEDs can be safely connected together to operate from a single plug.

·Make sure that the cable is completely unravelled and that there are no snags in the cable.

·To operate, plug into mains supply indoors not outdoors or in damp conditions.

LEDs

Non-replaceable LEDs - 3V 0.06W

PLUG

EU plug, US plug, Au plug, UK plug available

POWER SUPPLY

Rated Voltage / Wattage: 230V or 110V 50Hz8.2W per100 LEDs
