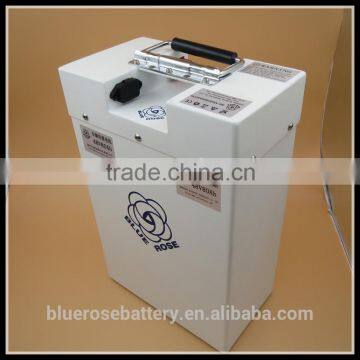

Solar and Wind Power Generation System 48v 80Ah lithium battery
US$ 999.00 - 1189.00
/ Piece
1 Piece(Min. Order)
- Hong Kong/Shenzhen
You May Like
-
48V 30Ah electric scooter vehicle ship yacht portable high current dc power source Rechargeable lithium battery batteries pack
-
led lighting 12v 9Ah LiFePO4 battery pack
-
battery powered led stage lighting 12v 12.8v 15Ah LiFePO4 battery
-
Solar street lamps led lighting 12v 21Ah LiFePO4 battery batteries
-
Solar street lamps 12v 12.8v 30Ah LiFePO4 battery pack
-
Solar street lamps 12v 33Ah 12.8v LiFePO4 battery batteries
Product Details
| Place of Origin | Guangdong, China | Brand Name | BLUE ROSE | |
| Model Number | BR-NR48V80Ah40T01 | Composed Type | Other, 18650 lithium cells pack | |
| Type | Li-Ion | Components | Other, 18650 lithium cells | |
| Size | 255*150*410mm | Voltage | 48V | |
| Weight | 27kg | Nominal Capacity | 80Ah | |
| Application | Solar & Wind Power Generation System |
Product Description
Solar and Wind Power Generation System 48v 80Ah lithium battery
| Battery Pack Specs | BMS Specs | ||||||
| Product Type | BR-NR48V80Ah40T01 | No. | Items | Min. | Standard | Max | Unit |
| Nominal Voltage | 48V | 1 | Absolute Charging Voltage | 54.4 | 54.6 | 54.8 | V |
| Nominal Capacity | 80Ah | 2 | Charging Mosfet Voltage Max. Rating | DC100 | V | ||
| Energy | 3800Wh | 3 | Discharging Mosfet Voltage Max. Rating | DC100 | V | ||
| Absolute Charging voltage | 54.6±0.2V | 4 | Charging Current | 10 | 15 | A | |
| Standard Charging Current | 5A | 5 | Discharging Current | 40 | 45 | A | |
| Max. Continuous Dicharging Current | 40A | 6 | OCP | 80 | 100 | 120 | A |
| Discharge Over Current Protection | 100±10A | 7 | OCP Delay Time | 300 | 400 | 500 | mS |
| Dischage Over Temprature Protection (OTP) | 75±5℃ | 8 | Single Cell Self Consumption Current | 15 | 25 | 32 | μA |
| Weight | <27Kg | 9 | Single Cell OVP | 4.17 | 4.2 | 4.25 | V |
| Dimension | 255*150*410mm | 10 | OVP Recovery Voltage | 4.05 | 4.1 | 4.15 | V |
| Short Circuits Protection (SCP) | Yes | 11 | OVP Delay Time | 0.5 | 1 | 2 | S |
| Cycle Life | ≥800 times | 12 | Single Cell UVP | 2.67 | 2.75 | 2.83 | V |
| Operation Temperature | -10—50℃ | 13 | UVP Recovery Voltage | 2.9 | 3 | 3.1 | V |
| Operation Humudity | 0-90%RH | 14 | UVP Delay Time | 0.5 | 1 | 2 | S |
| Motor Power | ≤1200W | 15 | The recovery of SCP, OVP, OCP | Self Recovery after SCP, OVP and OCP | |||
| Application | AGV,E-scooter, Energy storage | 16 | SCP Delay Time | 300 | 500 | 700 | μS |
| 17 | BMS Internal Resistance | 8 | 15 | mΩ | |||
| 18 | Normal Current of Mosfet Temperature Rising | 45 | 60 | ℃ | |||
| 19 | Operation Temperature | -20 | 25 | 45 | ℃ | ||
Can be customized according to customer's request!
