Hua Ruide-SGCC-HDI-Hot-dipped Galvanized Steel Sheet
- Qingdao Rizhao Tianjing
- T/T
You May Like
-
Hua Ruide-SGCC-HDI-Hot Rolled Galvanized Steel Sheet
-
Hua Ruide-SGCC-Non-pollution Technology-Hot Rolled Galvanized Steel Sheet
-
Factory-Hua Ruide-High Carbon Steel Tape for Packaging
-
Hua Ruide-Stainless Steel Packing
-
Hua Ruide-Stainless Steel Packing Belt
-
Hua Ruide-Stainless Steel Packing Belt Stainless Steel 430
Product Details
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Grade | SGCC, SGCD/DX51D+Z/ DX52D+Z/ DX53D+Z/ S250, 280, 320GD | |
| Thickness | 0.14MM-3.00MM | Place of Origin | Shandong, China | |
| Brand Name | Hua Ruide | Model Number | GI/PPGI/ SGCC, SGCD/DX51D+Z/ DX52D+Z/ DX53D+Z | |
| Type | Steel Coil | Technique | Hot Rolled | |
| Surface Treatment | Galvanized | Application | Other, Building material, the base of ppgi, construction material, warehouse, | |
| Special Use | High-strength Steel Plate | Width | 600MM-1500MM | |
| Length | Depend on the coil weight |
Product Description
Specifications
1.Thickness: 0.14-3.00MM2. Width: 600-1500MM
3. Zinc coating: 40g-265g /m2
4. Color: To your demands
5. ID: 508/610MM
1. Certification
a. Strong corrosion resistance b. Surface quality
c. Conducive to deep processing d. Economy and practicality
2. Product description
1) AVAILABLE DESIGNATION OF (Prepainted galvanized steel coils) printed PPGI coils
Quality | Q/BQB 440-2003 | JIS G3312-1994 | EN 10326-2004 | ASTM A653-02a |
EN 10327-2004 | (BASE PLATE) | |||
(BASE PLATE) |
| |||
Commercial Steel | TDC51D | CGCC | DX51D+Z/AZ | CS Type A/B/C |
Forming Steel | (TSt01,TSt02,TSt03) | CGCD1 | FS Type A, Type B | |
Drawing | TDC52D /TDC53D | - | DX52D+Z/AZ | DDS TYPE A/C |
Steel | DX53D+Z/AZ | |||
Structural | TS280GD(TStE28) | CGC400 | S280D+Z/AZ | SS275 |
Steel | TS350GD(TStE34) | CGC440 | S350D+Z/AZ | SS340 Class1 |
(2)TREATMENT
Type | Steel coil Steel sheets/plates Corrugated steel sheets/plates |
Technique | Hot rolled/cold rolled- galvanized (Zinc/galvalume /Al zinc) - PPGI/PPGL |
Surface treatment | Mini/regular/big/zero spangle, Chromate treatment /chromate-free treatment /untreated unoiled/oiled, |
Tension leveler skin pass | anti-fingerprint/un-anti-fingerprint, Coating, color |
(3)Available Painting OF (Prepainted galvanized steel coils) printed PPGI coils
Category of Painting | Item | Code | |
Polyester | PE | ||
High-durability polyester | HDP | ||
Silicon modified polyesters | SMP | ||
Polyvinylidene fluoride | PVDF | ||
Easy-Cleaning | — | ||
Painting Thickness | Top side: 20+5microns; | ||
Bottom side: 5~7microns. | |||
Color System | Produce according to RAL Color System or as per buyer’s color sample. | ||
Painting structure | Top surface | Bottom surface |
|
Primer coating | No coating | 1/0 | |
Primer coating | Primer coating | 1/1 | |
Primer coating + Finish coating | No coating | 2/0 | |
Primer coating + Finish coating | Primer coating or single back coating | 2/1 | |
Primer coating + Finish coating | Primer coating + Finish back coating | 2/2 | |
Note: Protect film available

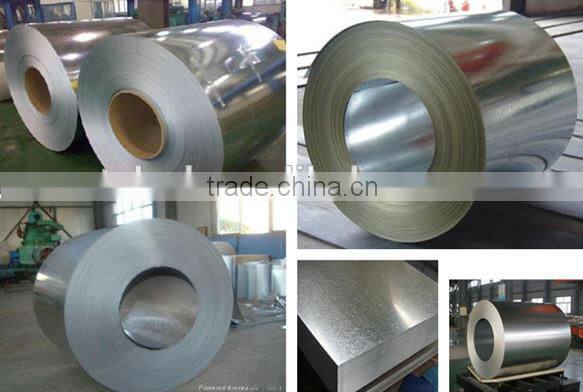

3. Product show:

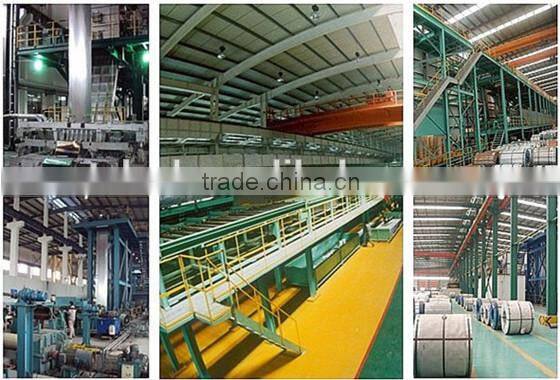

4. Product line:

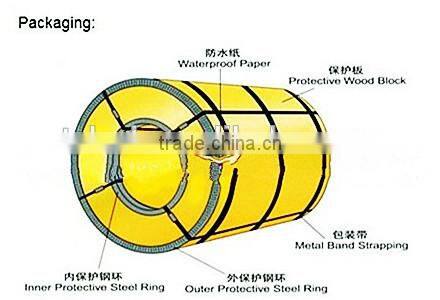

5. Package: exporting seaworthy packing for PPGI/GI

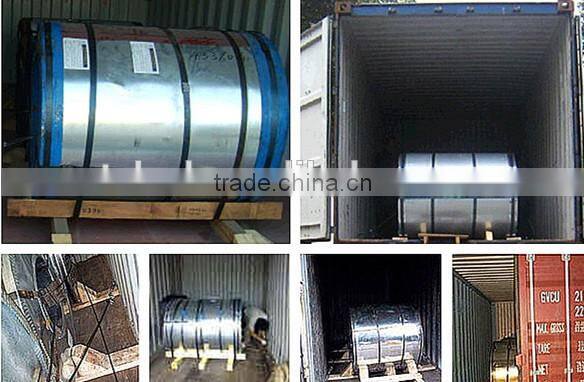

6. Load and transport:

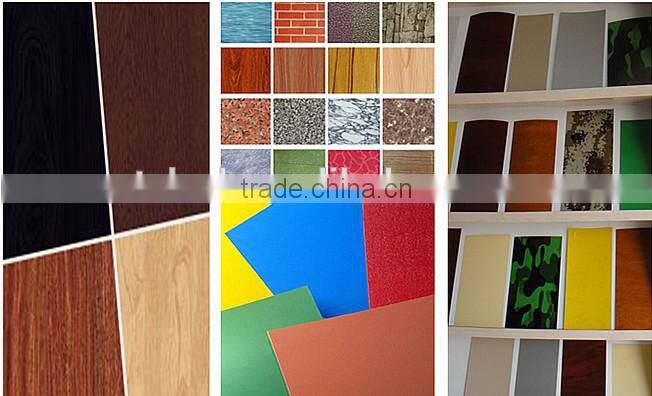

7. Color:

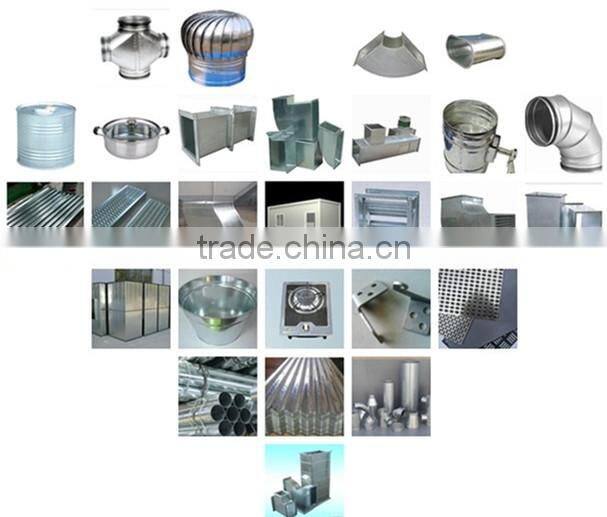

8. Application of our PPGI/GI
Exterior decoration of buildings: Roof and wallboards of industrial, commercial, residential and public facilities
Interior decoration of buildings: Wallboards, ceiling boards, partition boards, fireproof doors,
construction material,furniture
Building accessories: Window panels, signboards
Carrying trade:Container Plate, ship plate, warehouse, Commercial use
9. The superiority of product:
(1).Increased supporting strength (2).Reduced project cost (3).Light weight
(4).Easy and fast for installation (5).Durable: 12-20 years (6).Multifold color choices
(7).Non-pollution technology, Moisture resistance, Corrosion resistance, Weather fastness Beautiful designed
10. Payment terms:20%TT in advance+80% TT or irrevocable 80%L/C at sight
11. Manager :Vicky Yang QQ: 2902130384 Skype:victoria Yang happy
Mobile: 86-18661303123 Tel: 86-0538-7778098 Fax: 86-0538-7063897
