Home > Products > New Products > Factory supply 1.6inch 240*240 transflective screen without touch panel
Factory supply 1.6inch 240*240 transflective screen without touch panel
US$ 8.00 - 20.00
/ Piece
1 Piece(Min. Order)
- EXW Shenzhen
- Credit Card
You May Like
-
graphic 2.4 inch LCD panel display with ILI9341 (240*320) TF24013A
-
manufacturing qvga 2.4 inch touch lcd module 240*320 with resistive touch panel for medical device
-
2.4inch tft lcd screen TF24013A without touch panel
-
2.4" inch tft screen 2.4 inch tft lcd display 240*320
-
2.4 small size tft display 240*320 2.4inch small size tft display
-
2.4inch tft lcd module 2.4inch tft lcd module 240*320
Product Details
| Place of Origin | Guangdong, China | Brand Name | Topfoiosn | |
| Model Number | TF16001A | Type | TFT |
Product Description
Factory supply 1.6inch 240*240 transflective screen without touch panel
Product attribute
Factory supply 1.6inch 240*240 transflective screen without touch panel
| Item: | Factory supply 1.6inch 240*240 transflective screen without touch panel |
| Resolution: | 240*240 |
| Inserting Mode: | Board to Board |
| Viewing Angle: | 6'clock |
| Interface: | MCU Bit capatible 8080 I/F |
| Outline Dimension: | 31.2mm(W)*35.1mm(H)*1.5mm(D) |
| Active Area: | LCD---28.8mm(W)*28.8mm(H) |
| TP---------mm(W)*-----mm(H) | |
| Driver IC: | ST7789S |
| PIN Nos.: | 24 |
| Display Mode: | Transflective LCD |
| Operating Voltage | -0.3~4.6V |
| Operating temperature | -20~70°C |
| Storage temperature | -30~80°C |
| Backlight Luminance: | -4000CD/M2 |
| LCM Luminance: | 100 CD/M2 |
| LCM Brightness Uniformity | 80 |

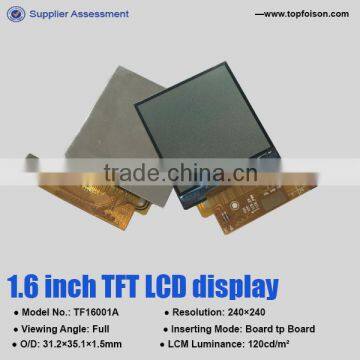

Product display
Factory supply 1.6inch 240*240 transflective screen without touch panel
Factory Show
Product Introduction
| (1)Product Range | |||
| TFT LCD display | Resistive Touch Panel | Plastic Mould | Solution Help |
| TN/STN/FSTN/OLED | Capacitive Touch Panel | Electronic Component | |
(2)Main Size of TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*128 |
| 1.77" | 128*160 |
| 2.0" | 176*220 |
| 2.4" | 240*320 |
| 2.8" | 240*320 240*400 |
| 3.0" | 240*400 |
| 3.5" | 320*240 320*480 |
| 4.3" | 480*272 |
| 5.0" | 800*480 |
| 7.0" | 800*480 |
| 9.7" | 1024*768 |
(3)Customization Items for TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*160 |
| 1.5" | 128*128 round type |
| 2.0" | 220*176,240*320,320*240 |
| 2.2" | 176*220,220*176,240*320,320*240 |
| 2.4" | 320*240 |
| 2.6" | 240*320,320*240,240*400 |
| 2.8" | 240*320,320*240,240*400 |
| 3.0" | 240*320 |
| 3.2" | 240*320,240*400,320*480,480*800 IPS full angle |
| 3.5" | 480*800,480*320,320*480 full angle |
| 4.3" | 480*272 high luminance |
| 5.0" | 800*480 high luminance |
Main Application
Product | Applications |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
Packaging & Shipping
| 1 | MOQ: | 1pcs |
| 2 | L/T: | Samples in stocks,2-4 weeks for mass production |
| 3 | Trade Terms : | EXW |
| 4 | Payment: | 100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
| 5 | Warranty: | 12 months |
| 6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
