Product Details
| Condition | New | Mixer Type | Screw | |
| Product Type | Soap | Application | Other, Powder,Powder or liquid | |
| Additional Capabilities | Drying | Place of Origin | Henan, China | |
| Brand Name | CW | Model Number | CWH | |
| Max. Loading Capacity | 30CBM | Voltage | 110/220/240/380/415/440/460V | |
| Power(W) | various | Dimension(L*W*H) | as per order | |
| Certification | CE&BV&SGS&ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
screw conical mixer1.Cooling,heating
2.Double screws mixing agitator
3.three-dimensional action
4.CE SGS ISO BV
China supplier Stainless steel Double auger & double screw conical mixer, Vacuum conical mixer
Brief Introduction
Jacketed Conical Screw Mixer is a convective mixer with a high mixing efficiency. The VSM treats the product mixture gently and guarantees a high level of mixing accuracy without any material distortion. This machine relies on a combined three-dimensional action produced by a screw suspended from a turning arm inside the conical vessel and the rotation of the screw itself.
Jacketed Conical Screw Mixer is used for applications in which gentle mixing or blending in combination with residue-free material discharge is required. Furthermore, this type of mixer is suitable for intermediate material storage combined with temporary blending.
The Conical Mixer is used for mixing or blending of powders or pastes, for granulation and agglomeration of powders with binding liquid addition, as well as for crystallization.
Feature
1.Short Mixing Time
It achieves a throughly homogeneous mix in 30 to 40% the time of most conventional mixers in the same category such depending on mixing element speeds.
2.Low Power Consumption
Cone screw mixer (Nouta Mixer) require approximately 50% power over conventional blender.
3.Gentle Mixing Action
Fragile filaments and flakes are safe from degradation and mixing is accomplished with minimal heat built up and aeration in the product.
4.Low Floor Space Required
Since mixer occupies less floor space, user can free up space for other plant operations.
5.Full Load Starting
Its screw agitator begins axially rotating and loosens batch material before its orbiting motion starts. This design feature prevents stalling and permits starting under full load in the event of a power failure. Soft starters are available to reduce excessive torque at start up.
6.Fast, Complete Discharge
Its unique cone design provides for gravity unloading, gives cleaner and faster batch discharge.
7.Easy Liquid Addition
Liquids are injected and atomized into the top of the mixer through the hollow shaft of the drive system.
Mixing of Partial Batches
Partial or full load batches are mixing equally well with no reduction in mixing efficiency.
8.Easy to clean
The top entering drive system provides full product protection with no bearing nor seals in direct contact with the product. Its unique obstruction - free cone shaped design allows for quick and easy cleaning
Technical Parameter
Type(m3) | Power(kw) | (kg)(m3)/Batch | Dimension(mm) | Weight |
CWH-0.5 | 3 | <300 | 1150×2320 | 580 |
CWH-1 | 5.5 | <600 | 1480×2850 | 1150 |
CWH-2 | 5.5 | <1200 | 1820×3510 | 1500 |
CWH-3 | 7.5 | <1800 | 2050×3800 | 2300 |
CWH-4 | 11 | <2500 | 2250×4480 | 2500 |
CWH-5 | 15 | <3000 | 2350×4720 | 2800 |
CWH-6 | 15 | <3600 | 2560×4980 | 3000 |
CWH-8 | 18.5 | <4200 | 2780×5360 | 4500 |
CWH-10 | 18.5 | <6000 | 3020×5810 | 5300 |
CWH-15 | 22 | <9000 | 3460×6510 | 6800 |
CWH-20 | 37 | <12000 | 3810×7420 | 9800 |
CWH-25 | 45 | <15000 | 4090×7800 | 10800 |
CWH-30 | 55 | <18000 | 4350×8200 | 12300 |

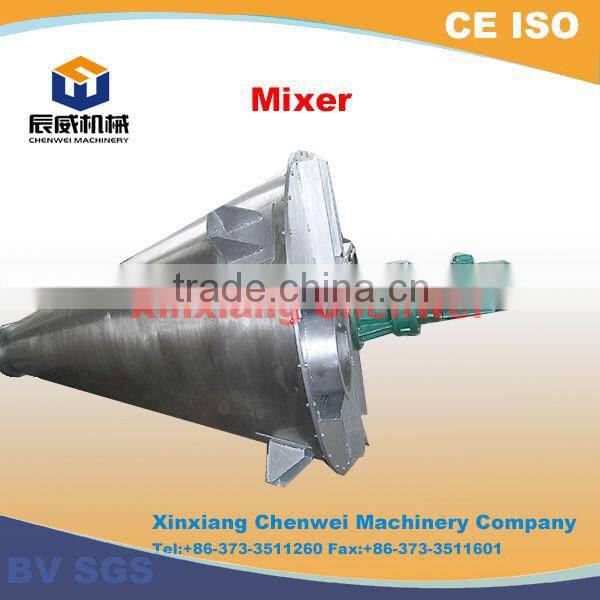

Machine picture
packaging&shipping
Our services
1. Pre-sale service:
In order to let each customer know better about the performance and requirements, we provide these services
l To send each potential customer the detailed production information and company profile
l According the user’s different needs, we work to recommend and guide for them
l To help them select the appropriate equipment
2. Service during sale:
l Do good communication with customers so that each part can exchange the information.
l Deliver on time as per the contract clause.
3. After-sale service
l To track the customer’s feedback after receiving the equipment
l Any product quality we receive, the technical personnel will guide to solve the problem
l All the products have three guarantees
l Provide technical exchanges
l Do well about the work of maintenance and service
