3.0 inch tft lcd screen TFT30006A for media application 3.0 inch
US$ 6.00 - 20.00
/ Piece
1 Piece(Min. Order)
- EXW Shenzhen
- Credit Card
You May Like
-
3.0 inch tft lcd monitor smart mobile 240*400 tft lcd monitor
-
tft lcd display cheapest price 3.0inch tft lcd display China supplier Topfoison 3.0inch
-
3.0inch Smart phones tft lcd roof mounted monitor 3.0inch tft lcd monitor 240*400
-
3.0inch tft lcd transparent tft lcd with driver IC ILI9327 for digital product 3.0tft
-
lcd tft monitor 3.0inch 240*400 power supply very small size for mobile phones 3.0inch
-
3.0 inch2016 China factory supplier Topfoison supply digital240*400 3.0inch tft lcd monitor
Product Details
| Place of Origin | Guangdong, China | Brand Name | Topfoison | |
| Model Number | TF30006A | Type | TFT |
Product Description

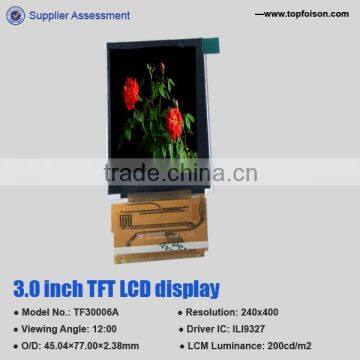

3.0 inch tft lcd screen TFT30006A for media application 3.0 inch
Product display
3.0 inch tft lcd screen TFT30006A for media application 3.0 inch
Product Description
| Item: | 3.0 inch tft lcd screen TFT30006A for media application 3.0 inch |
| Resolution: | 240*400 |
| Size: | 3.0inch |
| Viewing Angle: | 12 O'clock |
| Driving Method: | a-si TFT active matrix |
| Outline Dimension: | 45.04mm(W)*77mm(H)*2.38mm(D)(Typ) |
| Active Area: | LCD: 43mm(W)*64.8mm(H) |
| TP:-----mm(W)----mm(H) | |
| Driver IC: | ILI9327 |
| Pixel Pitch: | 0.612mm(W)*0.612mm(H) |
| Display Mode: | Normally White. |
Contact Us
3.0 inch tft lcd screen TFT30006A for media application 3.0 inch
Company Information
Topfoison covers 6500 sq.m. production workshop area, including 4000 sq.m. dust-free clean workshop with more than 600 staffs working inside. Since the start, our company has focused on the TFT LCD’s R&D, manufacturing and selling. The 6 world-class automatic FOG, COG production lines ensure the daily capacity of 100,000 pcs. We also have our own professional R&D groups specialized in a wide range fromTN/STN/FSTN/OLED/Capacitive touch panel&Resistive touch panel/Plastic moulding customization.
Product Introduction
| (1)Product Range | |||
| TFT LCD display | Resistive Touch Panel | Plastic Mould | Solution Help |
| TN/STN/FSTN/OLED | Capacitive Touch Panel | Electronic Component | |
(2)Main Size of TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*128 |
| 1.77" | 128*160 |
| 2.0" | 176*220 |
| 2.4" | 240*320 |
| 2.8" | 240*320 240*400 |
| 3.0" | 240*400 |
| 3.5" | 320*240 320*480 |
| 4.3" | 480*272 |
| 5.0" | 800*480 |
| 7.0" | 800*480 |
| 9.7" | 1024*768 |
(3)Customization Items for TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*160 |
| 1.5" | 128*128 round type |
| 2.0" | 220*176,240*320,320*240 |
| 2.2" | 176*220,220*176,240*320,320*240 |
| 2.4" | 320*240 |
| 2.6" | 240*320,320*240,240*400 |
| 2.8" | 240*320,320*240,240*400 |
| 3.0" | 240*320 |
| 3.2" | 240*320,240*400,320*480,480*800 IPS full angle |
| 3.5" | 480*800,480*320,320*480 full angle |
| 4.3" | 480*272 high luminance |
| 5.0" | 800*480 high luminance |
Main Application
Product | Applications |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
Packaging & Shipping
| 1 | MOQ: | 1pcs |
| 2 | L/T: | Samples in stocks,2-4 weeks for mass production |
| 3 | Trade Terms : | EXW |
| 4 | Payment: | 100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
| 5 | Warranty: | 12 months |
| 6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
