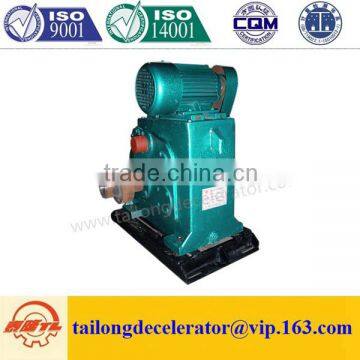

China supplier HT200 boiler tailong gear speed reducer for boiler plant GJ-T

China supplier HT200 boiler tailong gear speed

reducer for boiler plant GJ-T

This series of products boiler gear speed reducers are navel grate driving devices developed by our factory coordinated with boiler research institutions in 1978.Advantage of these commodities include reliability,stablization and durability.Our products were evaluated to be the Top-quality product by Chinese industrial boiler products examination center in 1992.

Advantages:

1.The boiler grate speed reducer can mechanized the coaling,make the precedure equalization.

2.Customers can choose different stalls to achieve different coaling speed.

3.It can reduce labor intensity,conserve energy,reduce coal consumption and chair pollution.

Main specifications and technical parameters:

Operation procedures:

This series of boiler gear speed reducers apply multi-speed motors.Stator winding uses YY connection in four-pole motor,Y coonnection in six-pole motor and delta connection in eight-pole motor.Please strictly adhere to the wiring diagram to avoid possible problems.

Appearance and installation dimension diagram:

                                                                                                                unit:mm

Note:

1.Fix the reducer at the extremity against the grate stoker's stretching direction.When the chain extending,the gear reducer can move vertically with the chain grate transmission shaft and tensioning the chains.

2.Data in above from is standard installation dimensions,and can be customized according to user's requirements.

The suggestions according our professional engineers about how to installation and adjustment and maintenance:

1.Check the electromotor before installation,ensure that the motor is not moistured during transportation or deposition and all bolts and joints are well fastened.

2.Determine the position to cement the gear speed reducer according to the central height of the boiler grate shaft.Vertical deviation between output shaft of the reducer and driving shaft of the boiler grate stoker should less than 2.5mm,angular separation between the two axis should less than 30 degrees.

3.Add gear oil to the central point of the oil scale.Screw off the ring bolt and fill oil to the upper cab.Use the spring oil filler mear the tank cover to refuel the lower cab.Change oil three months later for the first time.and then change it every six months,Check the oil scale periodically.

4.Oil cups near slide gear at the end of the output shaft should be fueled with compound oil reqularly.

5.Do not add too much oil to the lower tank body.Otherwise it will permeate to the electrical motor and cause the motor out of work.

6.Fix the gear speed reducer at the extremity against the grate stoker's stretching direction.When the chain extending,the reducer can move vertically with the chain grate transmission shaft and tensioning the chains.

7.When a new boiler runs the first time,the clutch might be disengaged intermittent due to the friction of the chain grage stoker.In this condition,please tight the safety clutch spring,run several minutes and then turn the safety clutch spring to the scope of nomal use.

8.When the safety clutch is disengaged in operation,turn off the power supply immediately,check and analysis the cause,fix it before run it again.

9.Refuel lubricating oil to the joint of the clutch and the worm shaft regularly to ensure that the clutch axial moves smoothly.

10.Keep the surroundings clean to provent dust.

Sampling detection by Jiangsu reducer Product Quality Supervision and Inspection Center(Authority Testing),ensure the quality before export:

Our company and workshop:

Tailong Group,located in Taixing city along riverside of the Yangzi River,is a national giant enterprise which Taixing People are proud of.It has developed in one of top 500 machinery industrial enterprises in China,playing a leading role in domestic reducer/transmission indutry.

The dominant product,the reducer is available in decades of series and several hundred thousand specifications.Equipped with advanced modular and dot line engagement technology,we have additionally developed series of high tech products such as TL modular gear retarded machine,TXP modular planet reducer,heavy load modular gear retarded machine,dot line engaged reducer,vertical grinder and edge drive grinder gearbox,joint,open-book,take-up gearbox used for aluminum metallurgy industry,three ring gear reducer,planetary wheel speed reducer,wind driven gearbox,transmission for hydro-power generation,nuclear circling pump driven gearbox,and various special non-standard gearboxes.Tailong Industrial Park has become the largest steel cord production base of national wide.Our wto-vane an threevane Roots blowers and high temperature blower are exported to South East Asia,Europe and America in batches.

Our products are certified with safety marks for mining products and recognized pass lifting industry type test.Tailong brand is recognized as the Chinese famous brand by national industrial and commercial bureau and Tailong reducer is awarded as the Chinese famous brand product.

The use range of some real images in boiler fields:

Some well-known partner of our customers:

FAQ:

Q1:What kinds of gearbox can you produce for us?

A1:Main products of our company:

1. Boiler grate speed reducer

2. Helical Gear Box

3. Gear Box

4. Crane Reducer

5. Planetary Gear Box

6. cycloidal pin gear speed reducer

7. Extruder Machine Reducer

8. Three Ring Gear Reducer

9. Sugar Cane Machine Reducer

10. Mixing Mill Gear Box
11. Mill Gear Box

12. Cooling Tower Reducer

13. Gear motor

14. Direct-connected gear reducer

15. Worm Gear Reducer

16. Cylinder Gear Reducer
17. Motorized pulleys

18. Star-wheel speed reducer

19. Brick machine speed reducer

20. Grain and oil machinery speed reducer

21. Backstop for gearbox

22. Soft teeth of gear

23. Moderate-hard teeth of gear

24. Hard teeth of gear, more than one hundred models and thousands of specifications.

Q2: What are the application of the gearbox reducer use?

A2:Products are widely used in ceramic, glass, food, metallurgy, beer & drink, printing and dyeing, textile, petrochemical engineering, warehouse logistics, wood-working machine, environmental protection equipment, printing and packaging, pharmacy, and leather. Products are sold in some countries and regions, such as Europe, America, and Southeast Asia, and it possesses dozens of distributors and after-sale service agents.

Q3: What about the quality control?

A3: We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.

Q4: How about the payment way?

A4: 30% payment in advanc, 70% payment before loading.

Other questions,welcome to write a inquiry and have a visit on our factory discuss the detailed business processes by mutual benefit between both of us!
