Electric scooter DIY conversion kit

Specifications

Electric scooter DIY conversion kit

More quickly let you convert mobility scooter instead of walking,

This is very good mobility scooter d.i.y kit!

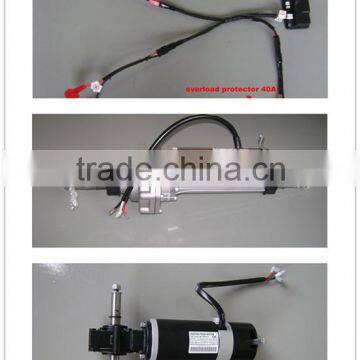

Model: cable-01

Cable specifications: UL1015  10AWG

Connect the terminals of the lead acid battery: T=5.5-6<Φ6mm>

Connect the terminals of the controller:T=99776bs-2&2

Overload protector:40A<30A or 50A>

Model:throttle pot-01                  Automatic reset type
Feature:                                                        electrical:
long cycle life>2,000,000                               electrical angle:±22.5°<45° in total>
self contained & compact package              total resistance:5kΩ±0.1
easy mechanical installation                        linearity:±0.02<point slope linearity>
easy electric connections                              center return accuracy:2.5v±0.15v
no mechanical adjustments                         power dissipation:0.2w at 40°C
no electrical calibrations                               electrical limit max:16VDC
easy actuating lever orientation                  dielectrical styength:500VDC
positive actuating lever attachment
easy field replacement

Model:throttle pot-02                  Automatic reset type
Feature:                                                         electrical:
long cycle life>2,000,000                               electrical angle:±22.5°<45° in total>
self contained  & compact package             total resistance:5kΩ±0.1
easy mechanical installation                        linearity:±0.02<point slope linearity>
easy electric connections                               center return accuracy:2.5v±0.15v
no mechanical adjustments                          power dissipation:0.2w at 40°C
no electrical calibrations                                electrical limit max:16VDC
easy actuating lever orientation                   dielectrical styength:500VDC
positive actuating lever attachment
easy field replacement

Electric scooter motor: BRUSHES GEAR BOX

 Packing in 7 layer carton with foam covered.
