Electric wheelchair DIY kit conversion kits

Specifications

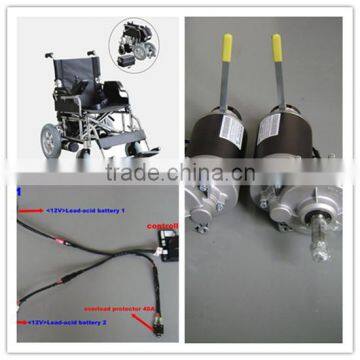

Electric Wheelchair DIY conversion kit

More quickly let you convert mobility scooter instead of walking,

This is very good mobility scooter d.i.y kit!

Model: cable-01

Cable specifications: UL1015  10AWG

Connect the terminals of the lead acid battery: T=5.5-6<Φ6mm>

Connect the terminals of the controller:T=99776bs-2&2

Overload protector:40A<30A or 50A>

Model:throttle pot-01                  Automatic reset type
Feature:                                                        electrical:
long cycle life>2,000,000                               electrical angle:±22.5°<45° in total>
self contained & compact package              total resistance:5kΩ±0.1
easy mechanical installation                        linearity:±0.02<point slope linearity>
easy electric connections                              center return accuracy:2.5v±0.15v
no mechanical adjustments                         power dissipation:0.2w at 40°C
no electrical calibrations                               electrical limit max:16VDC
easy actuating lever orientation                  dielectrical styength:500VDC
positive actuating lever attachment
easy field replacement

Model:throttle pot-02                  Automatic reset type
Feature:                                                         electrical:
long cycle life>2,000,000                               electrical angle:±22.5°<45° in total>
self contained  & compact package             total resistance:5kΩ±0.1
easy mechanical installation                        linearity:±0.02<point slope linearity>
easy electric connections                               center return accuracy:2.5v±0.15v
no mechanical adjustments                          power dissipation:0.2w at 40°C
no electrical calibrations                                electrical limit max:16VDC
easy actuating lever orientation                   dielectrical styength:500VDC
positive actuating lever attachment
easy field replacement

Electric scooter motor: BRUSHES GEAR BOX

 Packing in 7 layer carton with foam covered.
