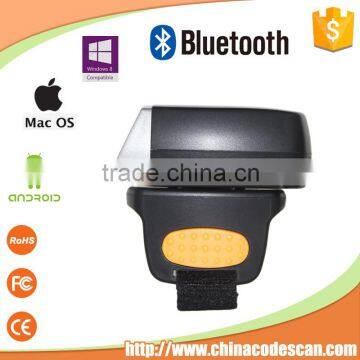

R1mini bluetooth barcode scanner

Data Sheet for R1 1D mini bluetooth barcode scanner

Features:

1. Wearable ring with swivel-head design enables right-handed or left-handed operation

2.Supports 1D barcode

3. Data connection to a smartphone,tablet ,or PC through Bluetooth or USB

4.Stores scanned data locally for batch uploading later ,can match the bluetooth connect .

5. Operating mode can be quickly switched by scanning a pre-defined barcode

6. Rechargeable and replaceable Lithium battery provides 8 hours of continous working time

7.A perfect solution for logistics ,warehouse,asset tracking ,healthcare, library management, and retail

Specification:

Model

NT-F001 RING BARCODE SCANNER

Mechanical Specifications

Dimensions

51(L)× 38(W)× 44(H)mm

Weight

50g(with battery,no AC adapter)

Buttons

Scan Button ( on rotating base ) Power on/off  Button

Battery

(3.7V,300mAh) Rechargeable and replaceable Lithium-Ion Battery

Indicators

Buzzer, LED( 3 colors)

Connections

Micro USB

Ring strap

Nylon strap with Stick buckle belt

Scan English

1D Laser Engine

Supports all common 1D barcode standards

Electrical Specifications

Power Input

DC5± 0.15V

Scanning Amperage

75mA(steady)/85mA(peak)

Standby Amperage

<8μA

Operating Environment

Working Temp

-15℃ ~ +50℃

Storage Temp

-20℃ ~ +60℃

Humidity

5%-95%(non-condensing)

Drop Test

Withstands a 1.5m drop to concrete,within the entire working temperature range

IP

IP54

Communication

Wireless

Supports Bluetooth up to about 20m

Wire

Supports Micro USB data

Working Time

Continuous 8 hours with one scan every 10 seconds

Accessories

Charger , USB cable
