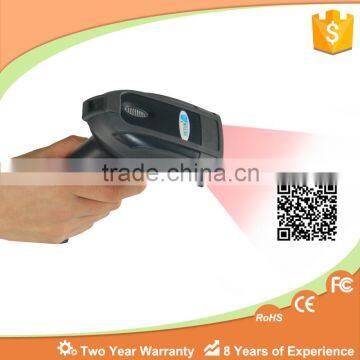

NT-2019R usb wired handheld qr code scanner and reader 2d

Features

1. New design concept,make operation more comfortable.

2. Applying CMOS image technology, easy to scan.

3. Multiple dacode ability, fast to scan 1D/2D barcode and PDF417.

4. Best shape design, anti-knock and quakeproof.

5. Mulitple interface, support USB,RS232 port.

Scannning Performance Characteristics

Light Source

indicator light: 528 nm LED;light: 630 nm

Field of View

34° V x 46° H

Scan Angle

Roll 360°, Pitch ±65°, Yaw ±60°

Scan Performance

5mil(Code 39):

9.0-12.0cm

10mil (PDF417):

5.0-22.5cm

13mil(100% UPC/EAN):

3.0-30.5cm

10mil(Datamatrix):

5.2-24.0cm

Static current20mil(Code 39)

3.0-42.0cm

Symbology Decode Capability

1D

UPC/EAN with supplementals, Code 39, Code 39 Full ASCII, Trioptic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32

PDF417

PDF417, microPDF417 and composite codes

Postal

U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch

2D

MaxiCode, DataMatrix (ECC 200), QR Code

Print Contrast

>25%

Interfaces

RS-232C; USB (Standard, IBM SurePOS, Macintosh)

Imaging Characteristics

Image (Pixels)

0.35 Megapixel ,752 pixels H x 480 pixels V

Graphics Format

Bitmap, Jpeg, Tiff

Image Transfer Speed

USB 1.1: Up to 12 Megabits/s ,RS232: Up to 115 kb baud rate

Image Transfer Time

Typical USB application is 0.2 seconds with a compressed Jpeg of 100 kb

Physical Characteristics/User Environment

Voltage and Current

5±10%V DC/ 350 mA

Operating Temperature

0° - 50° C

Storage Temperature

-40° - 70° C

Humidity

5% -95%

Drop/Shock Specifications

Withstands 2000g to concrete

Safety performance

ROHS, FCC and CE Certificate
