Home > Products > Laminated Glass > 5+5mm extra clear Laminated Glass with CE Certificate
5+5mm extra clear Laminated Glass with CE Certificate
- Ningbo or Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LT | |
| Model Number | LTRL | Shape | Curve, Flat | |
| Structure | Solid | Technique | Clear Glass, Laminated Glass, Tempered Glass | |
| Type | Other, Laminated glass |
Product Description

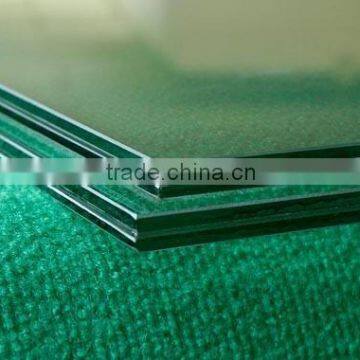

Laminated glass It's made of two or more than two sheets of glass between which one or multi-layers of PVB with strong chesion is sanwiched under high tempered and pressure.
| Laminated Glass | |
| It's made of two or more than two sheets of glass between which one or multi-layers of PVB with strong cohesion is sandwiched under high tempered and pressure. | |
| Features | Specification |
| 1. Safety: When laminated glass is attacked by outside force, it hard to be penetrated because PVB film has strong tenacity and can absorb and weaken a mass of striking energy. Even if it's broken, the splinters will stick to the interlayer and not scatter. | Max Size: 2400*6000mm |
| Single glass thick: 3-12mm | |
| 2. Sound Insulation: PVB film can effectively prevent sound wave. | PVB: 0.38mm and multiple of 0.38 mm (Sekisui/DuPont) |
| 3. Anti-UV: Laminated glass can effectively present UV. | The normal type:3+0.38+3; 4+0.76+4; 5+1.14+5; 8+1.52+8, etc.We could do it according to your requirement. |
| Process: CNC Cutting--Grinding--waterjet cutting for the notch--tempering--glasses rolling--Autoclaving--Packing. | Quality |
| Application | In accordance with CE, AS/NZS certificate. |
| Building, window and door, high grade curtain wall, lighting, skylight, elevated floor, furniture, showcase, counter, automotive glass and aquarium etc. | In accordance with GB9962-1999 |
| Pass Chinese Safety Glass Compulsory Certification (CCC), Australian Certificate AS/NZS2208 | |
Thickness | Container | 1X20GP | 1X40GP | 1X40HQ |
Loading capacity | 18T | 22T | 22T | |
Kg/m² | Square meter | Square meter | Square meter | |
3mm | 7.5 | 2400 | 2900 | 2900 |
4mm | 10 | 1800 | 2200 | 2200 |
5mm | 12.5 | 1440 | 1760 | 1760 |
6mm | 15 | 1200 | 1470 | 1470 |
8mm | 20 | 900 | 1100 | 1100 |
10mm | 25 | 720 | 880 | 880 |
12mm | 30 | 600 | 730 | 730 |
15mm | 37.5 | 480 | 580 | 580 |
19mm | 47.5 | 380 | 460 | 460 |
Note | All the above data is just for your reference | |||
Working line
