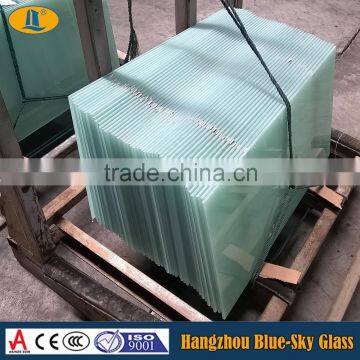

4+0.38+4mm 6+0.76+6mm milky laminated safe glass

FOB Price

US$ 12 - 25 / Square Meter

100 Square Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	LT
Model Number	LTSG	Shape	Flat
Structure	Solid	Technique	Frosted Glass, Laminated Glass, Tempered Glass
Type	Other, Toughened glass

Product	Tempered Glass	Other Name	Toughened Glass
Specification	Flat Tempered Glass Max size 3660mm2800mm Min size 100mm100mm Curved Tempered Glass Min curved radius 550mm Arc of length: Max 2400mm Min300mm Height: Max 3660mm Min300mm T
Authentication	CCC ; GB/T19001-200idtISO9001:2000; AS/NZS 2208:1996
Usage	Glass Door & Window, Balustrade, Stair, Partition, Splashback, Pool fence, Curtain Wall, Showcase, Shower, Cabinet, Furniture, Canopy, etc

*Laminated Glass*
It's made of two or more than two sheets of glass between which one or multi-layers of PVB with strong cohesion is sandwiched under high tempered and pressure.
Features	Specification
1. Safety: When laminated glass is attacked by outside force, it hard to be penetrated because PVB film has strong tenacity and can absorb and weaken a mass of striking energy. Even if it's broken, the splinters will stick to the interlayer and not scatter.	*Max Size: 24003800mm**
	Single glass thick: 3-12mm
2. Sound Insulation: PVB film can effectively prevent sound wave.	PVB: 0.38mm and multiple of 0.38 mm (Sekisui/DuPont)
3. Anti-UV: Laminated glass can effectively present UV.	The normal type:3+0.38+3; 4+0.76+4; 5+1.14+5; 8+1.52+8, etc.We could do it according to your requirement.
Process: CNC Cutting--Grinding--waterjet cutting for the notch--tempering--glasses rolling--Autoclaving--Packing.	Quality
Application	In accordance with CE, AS/NZS certificate.
Building, window and door, high grade curtain wall, lighting, skylight, elevated floor, furniture, showcase, counter, automotive glass and canopy etc.	In accordance with GB/T19001-200idtISO9001:2008
	Pass Chinese Safety Glass Compulsory Certification (CCC), Australian Certificate AS/NZS2208

Packing & Loading

Thickness	Container	1X20GP	1X40GP	1X40HQ
	Loading capacity	18T	22T	22T
	Kg/m²	Square meter	Square meter	Square meter
3mm	7.5	2400	2900	2900
4mm	10	1800	2200	2200
5mm	12.5	1440	1760	1760
6mm	15	1200	1470	1470
8mm	20	900	1100	1100
10mm	25	720	880	880
12mm	30	600	730	730
15mm	37.5	480	580	580
19mm	47.5	380	460	460
Note	All the above data is just for your reference

Working line

Cutiing, cleaning and tempering glass

Laminating glass

Factory show
