EN TPED 5L 150bar Medical Oxygen Cylinder with Good Quality
- Main Port China
- T/T L/C D/P D/A Other
You May Like
-
EN TPED 10L 150bar Medical Oxygen Cylinder with Good Quality and Price
-
Oxygen Cylinder and Acetylene Gas Cylinder for Welding and Cutting
-
20L High Pressure Seamless Steel CO2 Gas Cylinder
-
High Pressure Seamless Steel CO2 Cylinder for Medical Use
-
80L Carbon Dioxide Gas Cylinder CO2 for Fire Fighting Made in China
-
1L - 120L CO2 Cylinder for Fire Fighting with GB ISO EN TPED Standard
Product Details
| Material | Steel | Use | Medical Gas | |
| Pressure | High | Place of Origin | China | |
| Brand Name | SINOCLEANSKY | Model Number | EN140 (TPED) |
Product Description

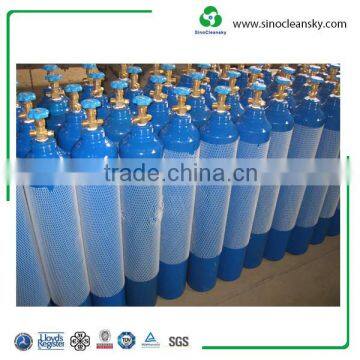

EN TPED 5L 150bar Medical Oxygen Cylinder with Good Quality
| Classification | Medical Cylinder |
Manufacturing STD | GB5099, DOT-3AA, EN1964, ISO9809 | |
Outer diameter | 108mm-159mm etc. | |
Water capacity | 1L-20L | |
Working pressure | 15Mpa, 20Mpa | |
Typical types | 5L, 10L |
Seamless Steel Gas Cylinder
With the world class equipment and advanced technical process, SinoCleansky can produce Large, medium, small sizes high pressure seamless gas cylinders which range from 8-35Mpa in working pressure, 0.5-145L in water liter. “SCS” brand seamless steel cylinders have reliable quality, clear stamping, consistent height and elegant appearance. SinoCleansky’s cylinders have been exported to over 40 countries and areas in four continents. SinoCleansky’s cylinder has got the honors as”Beijing famous brand product” and”Chinese well known products”. If you focus on Seamless Steel Gas Cylinder, especially for medical oxygen cylinder, SinoCleansky will be your excellent professional supplier.
Main types for Seamless Steel Gas Cylinder
Standard | Outside Diameter (mm) | Water Capacity (L) | Height (without valve) (mm) | Weight (without valve, cap) (kg) | Service Pressure (MPa) | Design Wall Thickness (mm) | Material |
GB5099 | 219 | 40 | 1315 | 48 | 15 | 5.7 | 37Mn |
GB5099 | 232 | 47 | 1370 | 52 | 15 | 5.4 | 37Mn |
GB5099 | 267 | 68 | 1500 | 78 | 15 | 6.3 | 30CrMo |
GB5099 | 267 | 68 | 1500 | 76 | 15 | 6.3 | 37Mn |
GB5099 | 229 | 50 | 1500 | 65 | 20 | 6.2 | 30CrMo |
GB5099 | 229 | 50 | 1550 | 75 | 20 | 6.2 | 30CrMo |
GB5099 | 178 | 10 | 555 | 15 | 20 | 4.6 | 30CrMo |
GB5099 | 165 | 10 | 630 | 14.5 | 15 | 4.3 | 37Mn |
GB5099 | 140 | 10 | 840 | 14 | 15 | 3.6 | 37Mn |
GB5099 | 140 | 10 | 840 | 14 | 15 | 3.6 | 30CrMo4 |
GB5099 | 140 | 10 | 840 | 14 | 20 | 3.7 | 30CrMo4 |
GB5099 | 133 | 10 | 900 | 11.1 | 15 | 3 | 30CrMo |
Standard | Outside Diameter (mm) | Water Capacity (L) | Height (mm) | Weight (kg) | Service Pressure (bar) | Test Pressure (bar) | Design Wall Thickness (mm) | Material |
ISO9809 | 219 | 40 | 1315 | 48 | 150 | 250 | 5.7 | 37Mn |
ISO9809 | 232 | 50 | 1460 | 61 | 200 | 300 | 6 | 30CrMo |
EN ISO9809 (TPED) | 267 | 68 | 1500 | 78 | 150 | 250 | 6.5 | 37Mn |
Standard | Type | Outside Diameter in. (mm) | Water Capacity cu. in. (L) | Height in. (mm) | Weight Ibs. (kg) | Service Pressure (psi) | Test Pressure (psi) | Design Wall Thickness in. (mm) | Material |
DOT-3AA | 225CF | 9“(229) | 2640(43.3) | 51.18"(1300) | 110.4(50) | 2015 | 3360 | 0.197(5.0) | 30CrMo (4130X) |
DOT-3AA | 20CF | 5.24“(133) | 220(3.6) | 14.8"(375) | 12.3(5.6) | 2015/ | 3360 | 0.118"(3.0) | 30CrMo (4130X) |
DOT-3AA | 40CF | 7"(178) | 476(7.8) | 17.7"(450) | 263(12) | 2015 | 3360 | 0.157"(4.0) | 30CrMo (4130X) |
