POS Thermal Printer MEFKA 112mm RS232 metal housing

MEFKA PDT

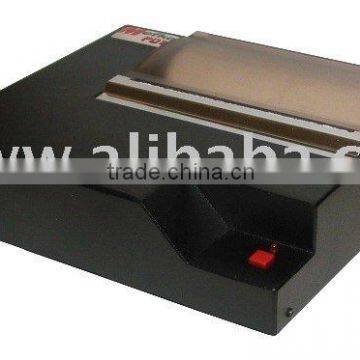

The Mefka PDT printer is the same as Kafka except the housing, weight and dimentions. The housing is made of metal with decreased paper outlet. The pollutions of mechanism are limited and therefore the lifetime of the printer is extended. Printer is designed to work under industrial, dusty conditions.

MEFKA PDT R

Mefka PDT R is the version of Mefka PDT designed to operate in vertical position: paper moves out to bottom, the position of printed lines is different, metal frame is added in order to mount the printer to wall. Every new printed line is positioned above the previously printed one. Therefore the printout is to be read from bottom to top. This is vital when used in constant control systems or security monitoring.

MEFKA PDT SQ

Layout is the same as basic Mefka PDT printer. The printers differ by the software. Full graphic printout can be achieved by the creation of characters using 9x12 and 18x24 dot matrix. Mefka PDT SQ emulates Epson EX-800 printer. By installing EX-800 driver and using Mefka PDT SQ sophisticated printout can be obtained.

Mefka PDT,
Mefka PDT R

Step thermal printer

112 / 89.6

0.75 line/s

69, 83 (draft), 17, 21 (LQ)  [char/s]

8 x 8 dots

(LQ): 18 x 24 dots
(draft): 9 x 12 dots

40, 80

(normal) 44, 52, 75, 88
(condensed) 88, 104, 150, 176

RS232C, RS242 (TTL), RS422A (RS485),
Bluetooth or IrDA

Tear bar

8,5V - 14V DC or 7V - 10V AC 50Hz

3W - 15W (max)

180 (W) x 155 (D) x 50 (H)

0,80 kg (without paper roll)
