2000KG Walkie Half Electric Stacker 3

FOB Price

US$ 1,070 - 1,307 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	JIALIFT	Model Number	SPN20
Type	Other, semi electric stacker	Power Souce	DC Motor
Rated Loading Capacity	2000kg	Max. Lifting Height	2000mm
Min. Lifting Height	85mm	Fork Length	900/1100mm
Fork Width	150mm	After-sales Service Provided	Engineers available to service machinery overseas

Scientific design with strong steel construction.
Simple and convenient lifting operating system.

Identification	1.1	Model		SPN2016	SPN2020
	1.2	Operate type		Pedestrian
	1.3	Drive		Electric
	1.4	Load capacity	kg	2000
	1.5	Load capacity. Fork’s highest point	kg	2000	1600
	1.6	Load center distance	mm	450
Weight	2.1	Service weight	kg	365	370
Wheels	3.1	Tyres		PA
	3.2	Axle loading, laden rear	mm	Φ180×50, 2 pcs
	3.3	Axle loading, laden front	mm	Φ74×70, 2 pcs
Size	4.1	Lift height	mm	1600	2000
	4.2	Height lowered fork	mm	85
	4.3	Overall length	mm	1600/1800
	4.4	Overall width	mm	760
	4.5	Fork length	mm	900/1100
	4.6	Outside width	mm	Short leg truck 550-830, wide leg truck 330-640
	4.7	Single fork width	mm	150
	4.8	Turning radius	mm	1350
Performance data	5.1	Lift speed, laden/unladen	m/s	84/133
	5.2	Lowering speed. Laden/unladen	m/s	94/72
	5.3	Service brake
E-motor	6.1	Lift motor	kw	1.5
	6.2	Battery voltage, nominal capacity	V/Ah	12/120
	6.3	Battery type		Industrial battery
	6.4	Battery weight	kg	32

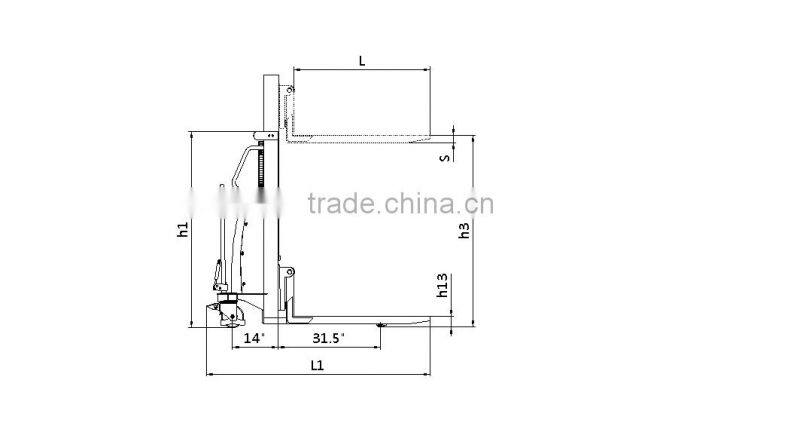

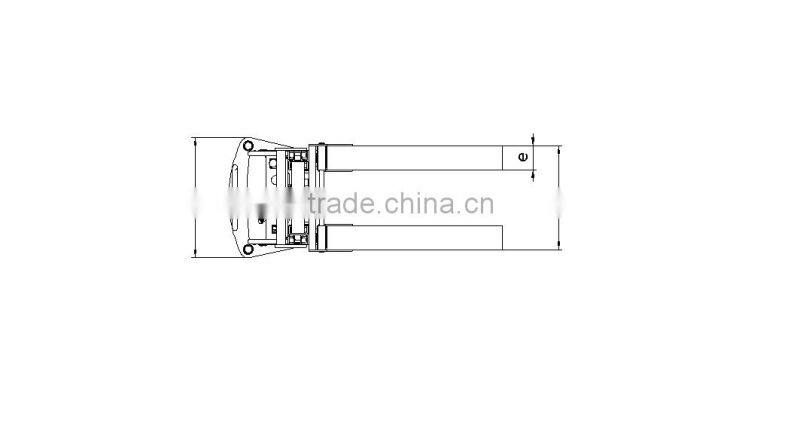

Structure Drawing

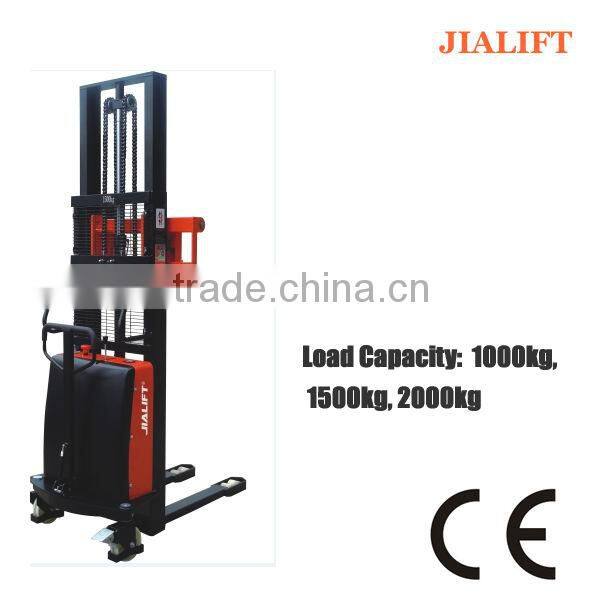

Photo:
