1.5 TON Three mast electric pallet forklift

FOB Price

US$ 5,588 - 5,937 / Unit

1 Unit(Min. Order)

Port Shanghai or Ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	China
Brand Name	JIALIFT	Model Number	CL1546
Type	Other, electric stacker	Power Souce	DC Motor
Rated Loading Capacity	1500kg	Max. Lifting Height	4600mm
Min. Lifting Height	86mm	Fork Length	1150mm
Fork Width	180mm

Product Description

Specifications

High performance hydraulic power unit, combined DC motor, gear pump. Value disc and pipe components.

Three door frame full electric hydraulic stacker 1.5 TON

1, High performance hydraulic power unit, combined DC motor, gear pump. Value disc and pipe components.

2, With small size, high reliability, stable work, energy conservation, noise reduction, environmental protection, etc.

3, Electronic control system which is imported from US Curtis is responsive, good manipulation, automatic regeneration, reverse connect braking and wireless control, and other functions.

Parameter list:

Identification	1.1	Model		CL1546
	1.2	Operate type		Pedestrian
	1.3	Drive		Electric
	1.4	Load capacity	kg	1500
	1.5	Load capacity. Fork’s highest point		800
	1.6	Load center distance	mm	600
Weight	2.1	Service weight	kg	1365
Wheels	3.1	Tyres		Polyurethane wheels
	3.2	Axle loading, laden rear	mm	Φ250×78, 2 pcs
	3.3	Axle loading, laden front	mm	Φ80×70, 4pcs
Size	4.1	Lift height	mm	4600
	4.2	Height lowered fork	mm	86
	4.3	Overall length	mm	1915
	4.4	Overall width	mm	1050
	4.5	Fork length	mm	1150
	4.6	Outside width	mm	570/695
	4.7	Single fork width	mm	180
	4.8	Turning radius	mm	1605
Performance data	5.1	Lift speed, laden/unladen	mm/s	150/105
Performance data	5.2	Lowering speed. Laden/unladen	m/s	95/100
	5.3	Drive speed, laden/unladen	Kw/h	5.5/5.2
E-motor	6.1	Lift motor	kw	3
	6.2	Drive motor	kw	1.2
	6.3	Battery voltage, nominal capacity	v/ah	24/280
	6.4	Battery type		Industrial battery
	6.5	Battery charger	V/A	20/40
	6.6	Battery working time, full charge	h	5

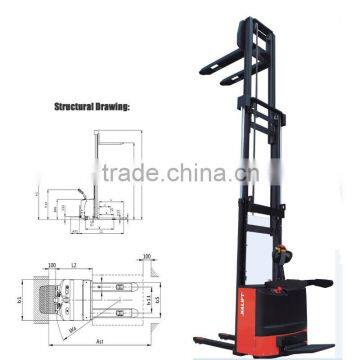

The drawings:
