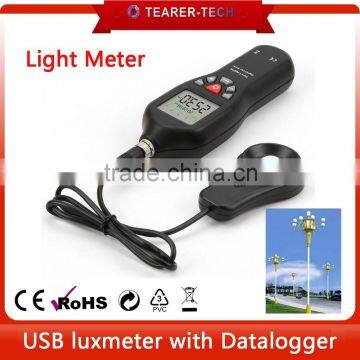

digital lux meter for led photoelectric beam sensor detector 1-200,000 Lux with USB TL-600

digital lux meter for led photoelectric beam sensor detector 1-200,000 Lux with USB TL-600

This Professional Digital Data Logging Lux Meter is an accurate way to check the light levels. It can also be used to check the level of light in your work or school area meets the specified regulations. A guide is included that shows you the levels required. Its is also ideal for checking the light level for photography. Luminous intensity is measured and reported in footcandles (fc) or in lux if using metric measurement.

Features:

• Wide Auto Ranging Measurement Range: 0 to 200,000 LUX or 0 to 20,000 FC

• LCD Extra Large Display with White Backlight

• Lux & FC Switchable

• 32000 Reading Internal Memory (Data Recording Function)

• High Accuracy

• Data Hold Function

• Minimum/Maximum/Average Reading Function

• Detachable Sensor for Replacement Maintenance

• Time Display

• Low Power Consumption with Low Battery Indicator

• Over and Under Alert Function

• Bar Graph Display

• Auto Off Function

• Tripod Mountable (Tripod not included)

• Software, USB Lead, DC 6V Cable, Hard Heavy Duty Case & Batteries Included

• Modern Stylish Colour and Design

• CE Certified & RoHS Compliant

Specifications:

• Standard Applied: CIA Standard & CNS 5119-1988

• Measurement Range: 0 to 200,000 LUX or 0 to 20,000 FC (Switchable)

• Accuracy: ±4% (0 - 10,00 Lux) ±0.5% rdg ±10 d (10,000 - 200,000 LUX)

• Resolution: 1 Lux / 0.1 Fc

• Sampling Time: 0.5 Second

• Analogy Bar Graph: 0-2000 (x10 or x100)

• AC Signal Output: 4Vrms/Full Bar Grap, output impedance is approx. 600 ohs

• DC Signal Output: 33mV/dB

• Operation Temperature: 0 to 50 Deg. C (32 to 122 Deg. F)

• Operation Humidity: 10 to 90% RH

• Storage Temperature: -10 to 60 Deg. C (14 to 140 Deg. F)

• Storage Humidity: 10 to 75% RH

• Power Supply: 6V (4pcs AA Size 1.5V Battery)

• Size (Approx.): Meter: 240x65x35mm / Sensor 110x60x30mm / Lead: 1M Long

• Weight: 290g (inc 4 average AA size batteries)

Set Includes:

• Meter

• Sensor

• Hard Heavy Duty Case

• USB Lead

• 6V DV Cable

• Software

• Batteries

• Manual

Packing:

• Colour box, including English instruction manual

Shipping :

Photos:

Other similar model TL-601  3-in-1 light meter with temperature and Humidity meter
