SPECIFICATIONS

The machine is used for forming and packing the flat lollipops.Continuous Abnormal Lollipop Mold / Packing Machine

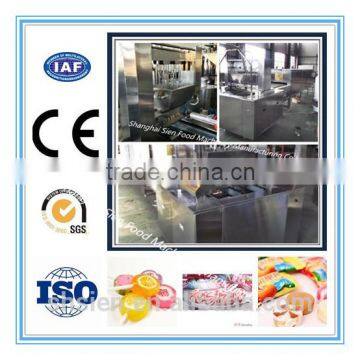

SE150 High quality professional ce special shape lollipop production line candy making machine

PROCESS: COLLECT RAW MATERIAL→→→MIX ALL MATERIAL IN THE SYRUP POT→→→COOKING→→→COOLING IN THE TABLE→→→PULLING THE SUGAR DOUGH→→→DIE FORMING→→→COOLING THE LOLLIPOP IN THE TUNNEL→→→PACKING

MACHINERY:SYRUP TANK→→→SYRUP PUMP→→→STORAGE TANK→→→VACUUM COOKER→→→COOLING TABLE→→→BATCH ROLLER→→→ROPE SIZER→→→DIE FORMING MACHINE→→→COOLING TUNNEL→→→LOLLIPOP BUNCH WRAPPING MACHINE

EXPLAIN ALL THE MACHINERY:.

    SYRUP TANK

THIS MACHINE USED TO MIX ALL THE RAW MATERIALS WITH WATER,AND MAKE THE SUGAR AND GLYCUSE ETC INTO A LIQUID TYPE,SO THAT EASY COOKING.

    SYRUP PUMP

THIS PUMP IS USED TO TAKE THE SYRUP LIQUID FROM THIS TANK INTO THE STORAGE TANK.

    STORAGE TANK

THIS TANK IS USED TO KEEP THE SYRUP FOR A WHILE,AS THERE HAS SOME TIME DIFFERENCE WITH THE MIXING TANK AND THE VACUUM COOKER,SO NEED THIS TANK FOR A BUFFER EFFECT.

     VACUUM COOKER

THIS COOKER IS TO COOKING THE SUGAR MIX WITH THE WATER,AND TAKE THE WATER,ONLY LEFT THE SUGAR ETC,IT IS VACUUM SYSTEM,FAST WORK,CAPACITY IS 350KG/HR.

     COOLING TABLE

THIS TABLE IS DOUBLE LAYER,AND CONNECT WITH THE COLD WATER,SO THAT EASY COOLING THE LIQUID SUGAR COME FROM THE COOKER,AND BECOME THE SUGAR DOUGH.

     BATCH ROLLER

THIS MACHINE IS USE TO ROLLING THE SUGAR DOUGH AND PULLING INTO SMALL AND LONG ROPES,SO THAT EASY GO INTO THE ROPE SIZER.

     LOLLIPOP DIE FORMING MACHINE

THIS MACHINE USED TO PRODUCE THE LOLLIPOP IN DIE FORMING TYPE,THE ROPE WILL COME FROM THE ROPE SIZE AND GO INTO THE DIE FORMING MACHINE,THIS MACHINE HAS A ROUND DIE WHICH HAS 64 PAIRS OF FINGERS,PUNCH WITH EACH OTHER,THE LOLLIPOP SHAPE WILL BE COMPLETE. HIGH SPEED MACHINE, EVERY MINITE MAKE MORE THAN 600PCS LOLLIPOP.

    LOLLIPOP COOLING TUNNEL

THIS TUNNEL IS EFFECT OF COOLING THEN LOLLIPOP FROM WARM INTO COOL,SO THAT NOT EASY TO BE OUT OF SHAPE.IT HAS FAN TYPE AND TEFRON COOLING COMPRESSOR TYPE,IF THE WORKSHOP TEMPRETURE IS AROUND 20 DEGREE,THE FAN TYPE WILL BE ENOUGH FOR USE.

THE COOLING PLATES ARE MADE BY STAINLESS STEEL,AND TOTAL HAVE 5 LAYERS.

    LOLLIPOP BUNCH WRAPPING MACHINE

THIS MACHINE IS A PACKAGING MACHINE IN A SINGAL TWIST TYPE,THE LOLLIPOP GO OUT FROM THE COOLING TUNNEL,AND NEED TO PACK AS WELL,THIS IS A AUTOMATIC PACKING MACHINE,WHICH HAS A DISK TO ARRANGE THE LOLLIPOP INTO THE TWIST HEAD,IF NO LOLLIPOP,THEN THE PAPER WILL NOT GO.SPEED IS 130PCS/MIN,ONE LINE NEED TO FIX ABOUT 3 TO 4 SETS OF THIS PACKAGING MACHINE.(WE ALSO HAS A HIGH SPEED BUNCH WRAP MACHINE WHICH SPEED IS 380PCS/MIN,IF NEED WE WILL GIVE OTHER OFFER AS WELL)
