GSM FWT-8848 GSM GATEWAY / Fixed Wireless Terminal

GSM FWT-8848  GSM GATEWAY / Fixed Wireless Terminal

GSM FWT/GSM Fixed Wireless Terminal

Brand: Etross or OEM
Model no.: Etross-8848G
Product name: GSM Fixed Wireless Terminal/GSM FWT/GSM FCT/GSM WLL/GSM gateway
Frequencies:850/1900Mhz 900/1800Mhz GSM FWT/GSM fixed wireless terminal/GSM gateway

Features and Functions
1) Simple to install and easy to maintain
2) Steady industrial module,reliable design ensures good performance
3) Provides optimized circuit directly connecting the exchange device for Extensions

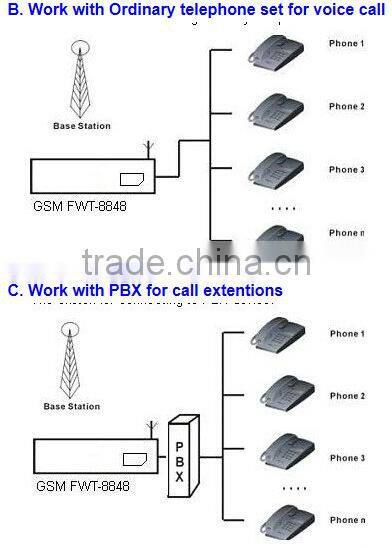

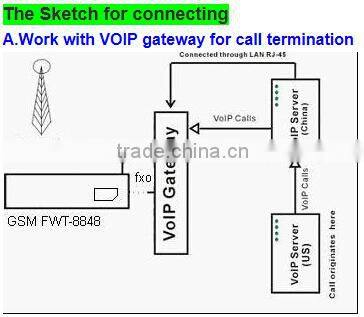

4) Compatible to most telephones, PBX and VoIP gateways (for call Termination)
5) Connect to Alarm systems to realize wireless alarm(for security use)
6) Strong signals,high gain antenna
7) Support SIM card
8) Support DTMF 2'nd dialing out
9) Hide subscriber caller id (been sent out)
10) Provides reversal polarity signal for metering
11) Suitable for wide voltage range and for all kinds of weather

13) Locking PIN / network (optional)
14) Support IMEI change(optional)
15) Back up li-ion battery(optional)

Specifications:
1) Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
2) Frequency ranges:
A) GSM 850                             GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz      I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz        Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900:                            GSM 1800:
I) Transmission: 890 ~ 915MHz          I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz            Ii) Reception: 1, 805 ~ 1, 880MHz
3) Channel space: 200kHz
4) User line, bell signal: In line with GB/T15279
5) Max power: 0.25W / 0.5W
6) Consumption:
A) Immobility: Less than 25mAh
B) Transmission: Less than 400mAh
7) Sensitivity:-105dB
8) Dial tone frequency:450MHz(standard)
9) Surrounding temperature: -10°C ~ +40°C
10) AC power: DC 10V - 20V
11) Input: AC100 - 230V, 50 / 60Hz
12) Output: 12V 1A
13) Connector of power: US or European type
14) Antenna connection: SMA antenna connection
