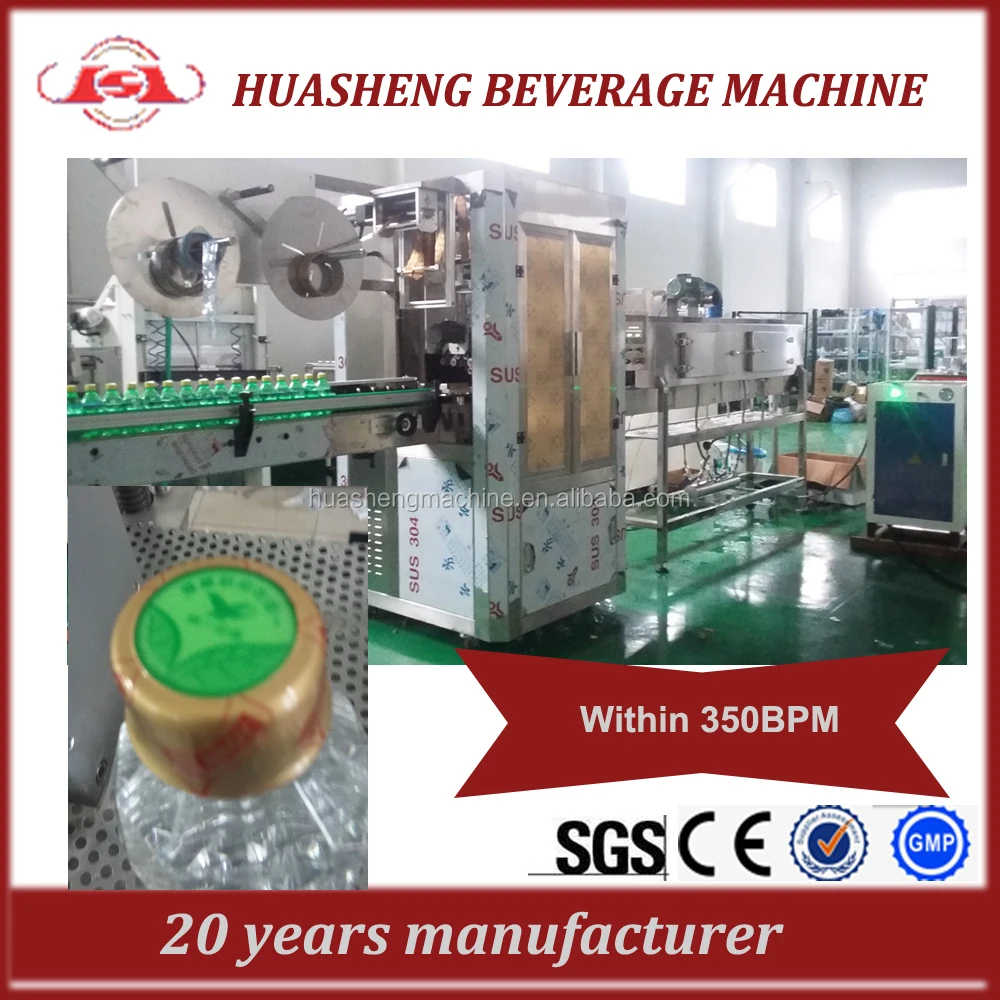

Within 350 BPM Automatic Shrink Sleeve Labeling Machine

Product Application

The sleeve labeling machines is the labeler for PET bottle and sleeve label by shrink label principle
The cap mouth sleeve label, fully body label from mouth to bottle, full body label from neck to bottom, middle body label all can be handled by this shrink sleeve labeling machine.

Main Features

1. General introduction
Shrink labeling machine will carry bottle, separate bottle, sleeve label and shrink label together which is with high speed, accurate position, fewer worker and perfect packing. Our machine can be applied to the packing of beverage, condiment, cosmetic, etc.
2. Driving unit
Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production.
3. Cutter head unit
The new style cutting knife drived by servo motor, with high speed, more stable and precise, shrinks perfectively. Synchronous locating device enables the tolerable error to 1mm.Unit cutter head plane design in China which applies to the container of ∮30mm—∮130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you don’t need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.
The new design of cutter adopt step motor with high speed, stable and exact movement, trim cut place and perfect shrink. Compatible with the label synchronous location structure, the error of cutting place is within 1mm.
4. Label feeding unit
Single material shelf with reasonable height in order to make it convenient to install label. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label. It will stop automatically and give alarm light and also display on the touch screen.
5. Clean down unit
Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.
6. Bottle carrying system
Adopted with mechanical transmission to drive the positioning belt on both sides. While changing the whole bottle carrying unit, the down and up, width are all controlled by one hand wheel aiming to synchronously and swiftly adjust.
7. Machine head up and down unit
It adopts motor to up and down which enable the operation more convenient.

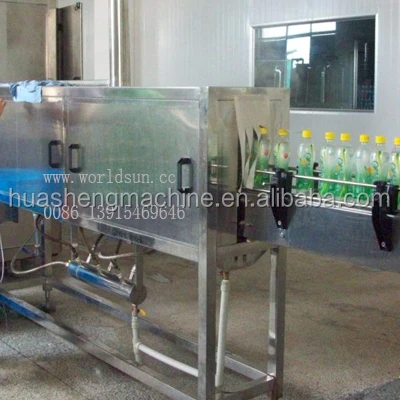

8. New steam shrinking tunnel
The new style steam shrink tunnel improves the efficiency highly. The adjustment and maintain is convenient, the shrink is in order. The spout of steam uses the separation style which makes the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .The low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing is very convenient. The whole machine is made of stainless steel, so it is heat preservation and save energy sources. Besides, it accord with the international safety standard. The stainless steel plane at the bottom cans condensate water and drainage them and working environment cannot be influenced. There are two eye windows in front and at the back of the box body. The waterproof design of the whole machine is made of stainless steel which makes the operation and maintain convenient.
9. New hot air shrinking tunnel
It adopts high pressure blower machine. Special designed hot air circle tunnel saves more energy and make the shrinked bottle more beautiful. Compare with the traditional shrinking tunnel, this kind of tunnel can do better for curved bottle.

Machine Parts

Name: LCD touch screen

Brand: Schneider

Original: Germany

LCD touch screen control the whole process：bottle carrying、bottle separation、material carrying、clean down、label cutting、label sleeving and shrink. The operation is very convenient and technologies.

Main Features

Name: Sensor
Brand: SICK
Original: Japan
Label cutting place is controlled by photoelectricity and human machine in order to check the label cutting place and enable the cutting more accurate.

Machine Parts

Name: electrical cabinet
Brand: Schneider
Original: Germany
Electrical appliance control system：in order to increase the efficiency and based on the mechanical structure, circuit design ,intelligent control which is important to label sleeving machine for beverage, we have developed advanced electrical appliance.

Front of double drive unit

Name: Front of Double drive unit
Brand: HUASHENG
Original: CHINA
The new developed structure of our company in order to avoid unsteady, low speed and label obstruction in the feeding process of hot shrinking label sleeving and make the process fluent and feeding label swiftly.
