Home > Products > Roller Bearings > Track Roller Bearing LFR 50/5 KDD

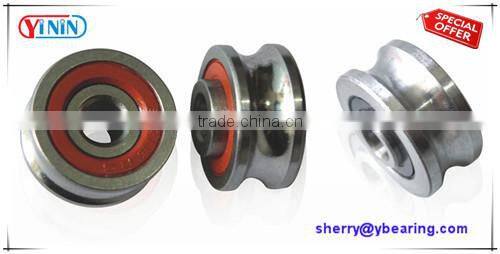

Track Roller Bearing LFR 50/5 KDD
Negotiable
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
-
Bronze sleeve bearing with oil dot bimetal bush
-
LME 20 UU Linear Ball Bearing Guide And Screw Actuator
-
Hot Sale KH 1228 Linear Actuator Ball Bearing guide
-
POS 6 Joint Rod Ends Sliding Bearing
-
High quality linear motion ball bearing LM 8 UU/LM 8 UUAJ
-
Hot sale sliding bearing LM 6 UU/LM 6 UUAJ linear Bearing
Product Details
| Brand Name | YNN OR OEM | Bore Size | 5, 40 | |
| Outside Diameter | 17, 98 | Model Number | LFR 50/5 KDD | |
| Precision Rating | ABEC-1 | Number of Row | Single Row | |
| Place of Origin | China |
Product Description
Specifications
Track Roller Bearing LFR 50/5 KDD1.superior quality long life
2.trust worthy
3.precision level:P4 P5 P6 P0
4.quality stand
Track Roller Bearing LFR 50/5 KDD
SG15~SG35N series, LR series, LFR 50/5~LFR50/8,LFR5201~5208, series, V track ect.
| Principal Dimensions(mm) | Bearing Designations | Basic Ratings | Mass(kg) | ||||||
| d | D | c | B | dLW | D1 | Cr(N) | Cor(N) | ||
| 5 | 17 | 7 | 8 | 6 | 27 | LFR 50/5 KDD | 1610 | 890 | 0.01 |
| 8 | 24 | 11 | 11 | 6 | 34 | LFR 50/8 KDD | 4100 | 2280 | 0.02 |
| 12 | 35 | 15.9 | 15.9 | 10 | 51.3 | LFR 5201 KDD | 8500 | 5100 | 0.08 |
| 12 | 35 | 15.9 | 15.9 | 12 | 55.5 | LFR 5201-12 KDD | 8300 | 5000 | 0.08 |
| 12 | 42 | 19 | 19 | 10 | 58 | LFR 5301 KDD | 13000 | 7700 | 0.1 |
| 15 | 47 | 19 | 19 | 10 | 63.3 | LFR 5302 KDD | 14500 | 9200 | 0.17 |
| 20 | 52 | 20.6 | 22.6 | 16 | 79 | LFR 5204-16 KDD | 14600 | 9500 | 0.23 |
| 25 | 72 | 23.8 | 25.8 | 20 | 102 | LFR 5206-20 KDD | 23400 | 16600 | 0.25 |
| 25 | 72 | 23.8 | 25.8 | 25 | 112 | LFR 5206-25 KDD | 23100 | 16400 | 0.25 |
| 30 | 80 | 27 | 29 | 30 | 132 | LFR 5207-30 KDD | 28500 | 20800 | 0.66 |
| 40 | 98 | 36 | 38 | 40 | 155 | LFR 5208-40 KDD | 38500 | 29000 | 1.36 |
| Shanghai YiNiN Bearing | |||
YNN Bearings is a leading bearing exporter & manufacturer with a wide range of Bearings & related components, we're committed to providing our customers with only the best service. | |||
| Brand | YNN or OEM service | ||
| Name | Shanghai YiNiN Bearing | ||
| Model | Track roller bearing | ||
| Material | chrome steel,stainless steel | Certificate | ISO9001:2008,ISO/TS16949 |
| Precision | abec-1, abec-3, abec-5, abec-7, abec-9 | ||
| Bore Size | 1-1000mm | Outside diameter | 3-3000mm |
| Clearance | Co, C2, C3, C4 | ||
| Cage Type | Steel Cage,Brass Cage,Nylon Cage etc. | ||
| Seals Type | Shielded, Sealed | ||
| Features | The bearings have low friction and very little noise or vibration, These characteristics make them to be available for situations of high speed, high precision, low friction and low noise operations. | ||
| Application | widely used in winding machine, linear guide, Agriculture, Automotive, Chemical, General industrial. | ||
| Package | pallet, wooden case,industrial package or as customers' requirement | ||
| Price | USD,EUR,RMB(FOB, CFR, CIF) | Delivery Time | 5-20 days |
YOU CAN ALWAYS COUNT ON US!
Contact Us
- Shanghai Yinin Imp. & Exp. Co., Ltd.
- Contact nameAlex Lin Chat Now
- Phone86-21-68551627
- AddressRm. 905, No. 2123, Pudong Ave.
