Home > Products > MANUAL HOIST > triangle type manual chain block ZHC-C type

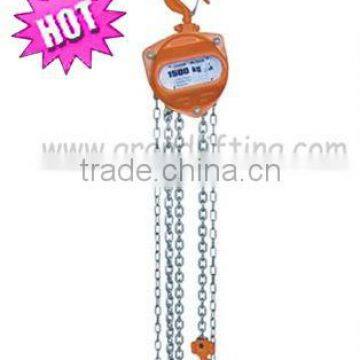

triangle type manual chain block ZHC-C type
US$ 28 - 150
/ Piece
20 Pieces(Min. Order)
- Ningbo China
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SEA EAGLE | |
| Model Number | ZHC-C | Usage | Construction Hoist | |
| Power Source | Hand Chain | Sling Type | Chain | |
| Maximum Lifting Weight | 500KG-20000KG | Maximum Lifting Height | 3M,5M,6M, | |
| Lift Speed | 0.5M/MIN |
Product Description
Specifications
1. Similar like Japan model2. with 3m or 6m chain
3. Design with double stripper ring to enhance the operation capability.
1. Similar like Japan model
2. Design with double stripper ring to enhance the operation capability.
3. Adopt the double guide link structure
| Item No. | ZHC-C-0.5T | ZHC-C-1T | ZHC-C-1.5T | ZHC-C-2T | ZHC-C-3T-S | ZHC-C-5T | ZHC-C-10T | ZHC-C-20T | |
| Capacity(kg) | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 10000 | 20000 | |
| Standard lift(m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| No.of load chain falls | 1 | 1 | 1 | 1 | 1 | 2 | 4 | 8 | |
| Load Chain Dia. | mm | 5*15 | 6*18 | 7*21 | 8*24 | 10*30 | 10*30 | 10*30 | 10*30 |
| Effort required to lift Max. load(N) | 249 | 284 | 380 | 343 | 372 | 372 | 382 | 389X2 | |
| Dimension(mm) | A(mm) | 148 | 148 | 196 | 210 | 255 | 280 | 463 | 840 |
| B(mm) | 132 | 132 | 173 | 175 | 205 | 189 | 189 | 200 | |
| C(mm) | 23 | 23 | 33 | 35 | 39 | 45 | 54 | 82 | |
| D(mm) | 35 | 35 | 45 | 50 | 55 | 65 | 75 | 106 | |
| Hmin(mm) | 345 | 376 | 442 | 470 | 548 | 688 | 765 | 950 | |
| Net weight(kg) | 9.6 | 12.2 | 16.5 | 19.5 | 31.7 | 43.5 | 78.5 | 192 | |
