Home > Products > TVI Camera > New Design Camera Kit IR Night Vision Mini Video Camera

New Design Camera Kit IR Night Vision Mini Video Camera

FOB Price

US$ 92.00 - 92.00 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	CCDCM
Model Number	TVKIT3104

Product Description

Cameras features:

4* 720P TVI Camera

1/4 inch 1 Megapixel CMOS sensor

High resolution : 1280*720

TVI DVR Features:

Support embedded Linux OS

4CH 720P Simultaneous playback

Support 4TB HDD, all channels support Main stream

TVKIT3104

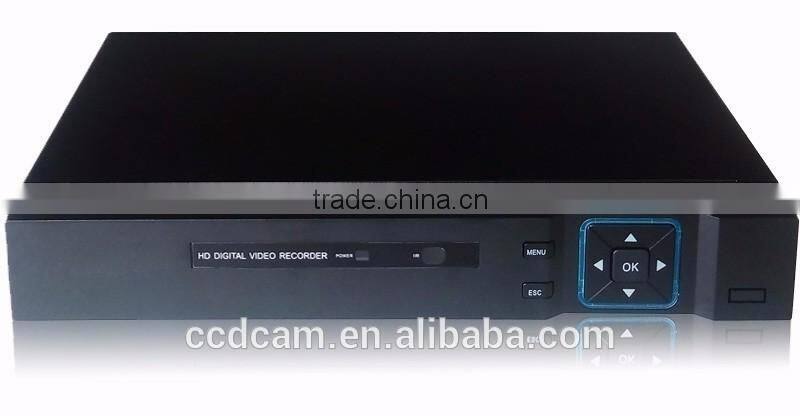

TVI DVR
System	Main processor	High performance embedded microprocessor HI3520D V200
	Operating system	Embedded LINUX operating system
	System resources	Pentaplex function: Live, recording, playback, backup& remote access
	Control mode	USB mouse, Network
Video	Input	4CH,TVI/AHD/Analog input BNC(1.0Vp-p, 75Ω)
	Output	1HDMI, 1 VGA
	Standard	PAL / NTSC
Audio	Input	4CH, RCA(200-2800mV,30KΩ)
Display	Display split	1CH 720P / 4CH 960H
	Resolution	720P(1280*720),960H,D1,CIF
	OSD	Camera title, time, video loss, camera block, motion detection, recording
Record	Video resolution	H.264
	Audio resolution	adpcm,G711
	Image resolution	720P(1280x720),960H(960x576,960x480),D1(704 X 576/704 X 480)
	Encoding speed	Main stream: CH1~4 720P/960H(1~25/30FPS)
	Encoding speed	Sub stream: CIF(1~5FPS),QCIF(1~5FPS)
	Image quality	1~6 level (level 6 is the best),VBR effectively
	Record mode	Manual,always, motion detection, alarm
	Record sequence	Manual>Alarm>Motion detection>General
Alarm	Triggering event	Record, Snapshot, Alarm, Email
	Motion detection	Area: 192(16*12), Sensitivity: 1-6 level
	Video loss	Support
Playback and backup	Playback channel	4ch 720P/960H
	Playback speed	960H 100/120FPS ,720P 100/120FPS
	Search mode	Time/Date, Alarm, Motion detection Exact search(accurate to second)
	Playback function	Play, Pause, Stop, Fast play, Slow play, full screen, backup
	Back mode	Flash drive/USB HDD/CD-DVD RW/Network download
Network	Interface	RJ-45 port(10/100M)
	Network functions	TCP/IP,UDP,DHCP,DNS,IPFilter,DDNS,FTP,Email,UPNP,P2P
	Remote operation	Monitor, PTZ control, Playback, System setting, File download, Log information
Hard disk	Interface management	1 SATA ports, each port support max 4TB HDD.
Auxiliary interface	USB Ports	2 USB Ports: 1 for mouse control, 1 for backup
Environment	Power supply	DC 12V

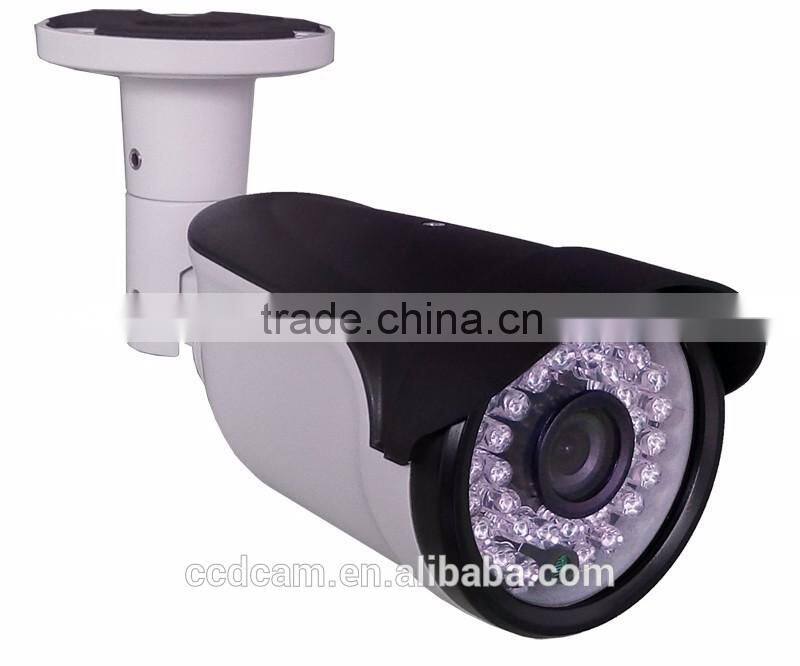

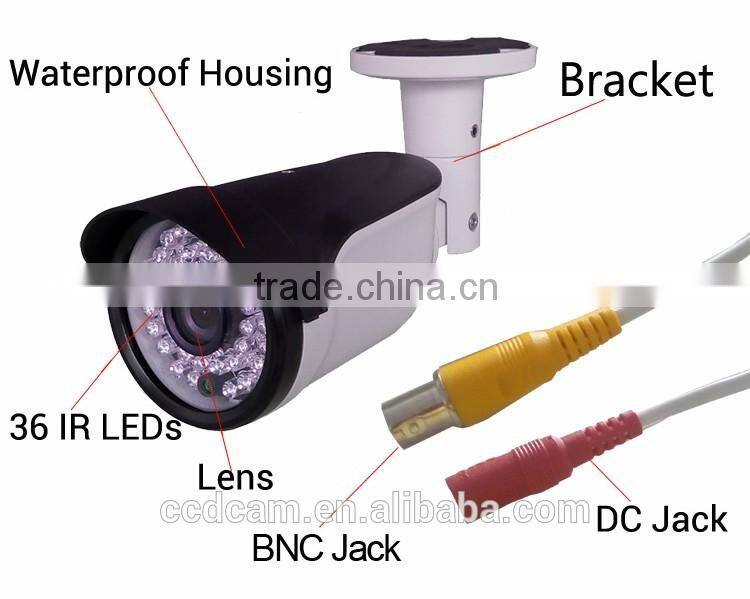

4*TVI Camera
Camera Type	720P TVI camera 1.0 megapixel 1/4 CMOS
Effective Pixels	PAL:1280x720@25fps NTSC:1280x720@30fps
IR-LED	36pcs IR led 30m IR Distance
Day/Night	IR-CUT filter Color 1.0Lux/F1.2,B/W 0.1Lux/F1.2
Electronic Shutter	4/25-1/45,000s
Lens	3.6/6mm Fixed Lens
Lens Mount	M12/C/CS
Output	1CH TVI Video output
Waterproof Criterion	IP66
Power	DC 12V
Image	Auto BLC,Auto White Balance
Max tansmission	common 75-3 lines can be up to 500 m

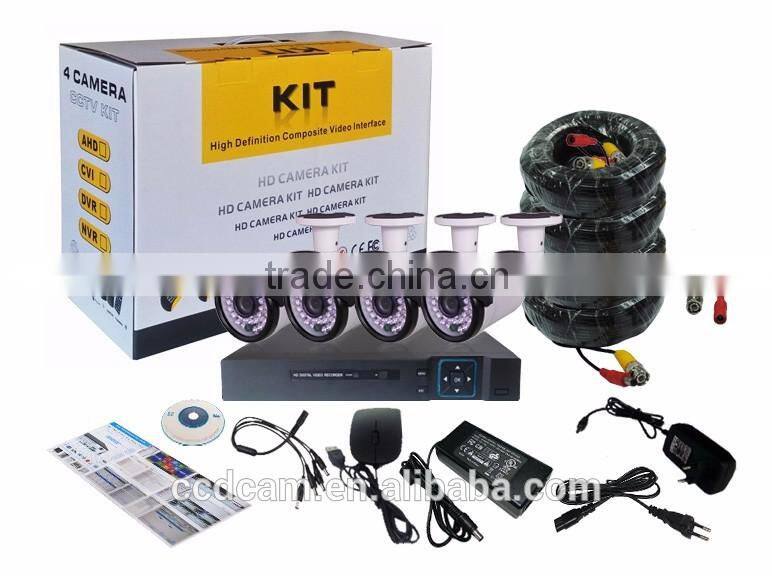

Kits
Pcaking list	1TVI DVR; 41.0MP TVI cameras;420M (BNC+DC) cables; 1quick start guide; 1mouse; 1CD;
Pcaking list	1power for DVR; 1power for cameras; 1* one split four DC cable
Work environment	-10℃~60℃90%RH
Package Size	209185280mm
Gross weight

KIT

Packing

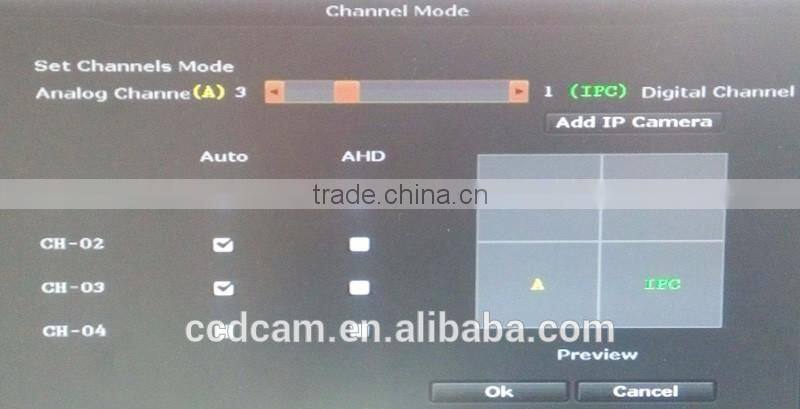

DVR Mode

A(TVI/AHD/Analog) 1080H/720P/960H/D1

IPC(IP camera) 1080P/960P/720P

A+IPC=4CH

P2P

P2P WEB:

Phone Client

App named: Eseecloud ,support Android and iPhone/iPad

Installation Guide

Application

About Factory

Exhibition

Our Company

Cetificate

How to contact us:

1. send inquiry to me

2. add my skype: ccdcamp
