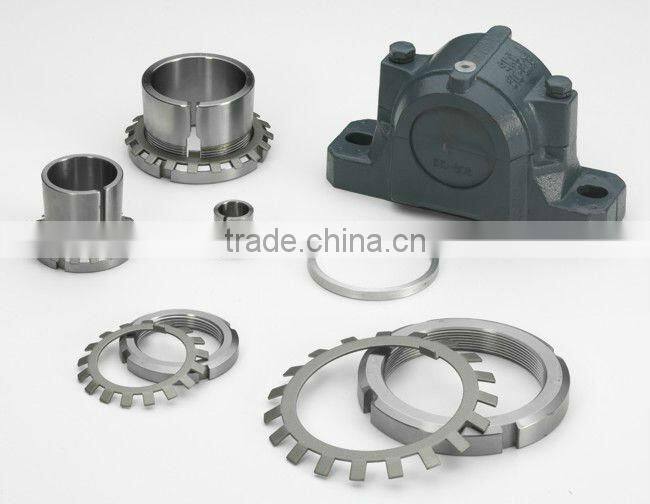

Bearing adapter sleeve H2308
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | YNN OR NETURAL | |
| Model Number | H2308 | Type | Other, Sleeve, adapter sleeve H2308 | |
| Material | CHROME STEEL |
Product Description
Specifications
adapter sleeve H23081. Model: H2308
2.chrome steel
3.over 10 years experience
4.good quality

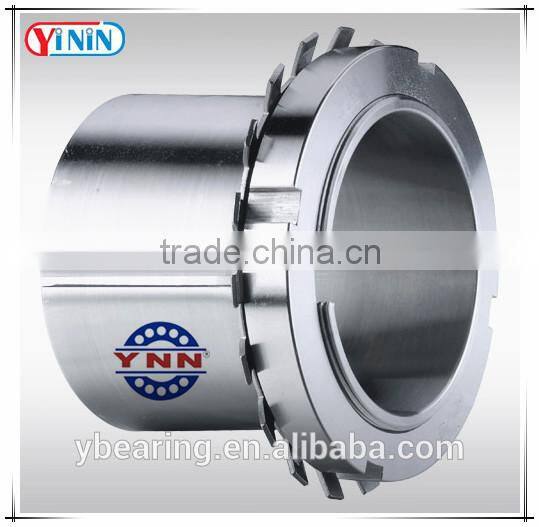

adapter sleeve H2308
Adapter sleeve H2308 catalogue:
| Ltem NO | Dimensions mm | W.1(kg) | lOCK NUT | Lock washer | No | |||||
| d1 | d | d2 | B1 | B2 | G | |||||
| H202 | 12 | 15 | 25 | 19 | 6 | M15×1 | 0.24 | KM2 | MB2 | H202 |
| H302 | 12 | 15 | 25 | 22 | 6 | M15×1 | 0.026 | KM2 | MB2 | H302 |
| H2302 | 12 | 15 | 25 | 25 | 6 | M15×1 | 0.032 | KM2 | MB2 | H2302 |
| H203 | 14 | 17 | 28 | 20 | 6 | M17×1 | 0.03 | KM3 | MB3 | H203 |
| H303 | 14 | 17 | 28 | 24 | 6 | M17×1 | 0.036 | KM3 | MB3 | H303 |
| H2303 | 14 | 17 | 28 | 27 | 6 | M17×1 | 0.042 | KM3 | MB3 | H2303 |
| H204 | 17 | 20 | 32 | 24 | 7 | M20×1 | 0.36 | KM4 | MB4 | H204 |
| H304 | 17 | 20 | 32 | 28 | 7 | M20×1 | 0.04 | KM4 | MB4 | H304 |
| H2304 | 17 | 20 | 32 | 31 | 7 | M20×1 | 0.05 | KM4 | MB4 | H2304 |
| H205 | 20 | 25 | 38 | 26 | 8 | M25×1.5 | 0.064 | KM5 | MB5 | H205 |
| H305 | 20 | 25 | 38 | 29 | 8 | M25×1.5 | 0.071 | KM5 | MB5 | H305 |
| H2305 | 20 | 25 | 38 | 35 | 8 | M25×1.5 | 0.085 | KM5 | MB5 | H2305 |
| H206 | 25 | 30 | 45 | 27 | 8 | M30×1.5 | 0.086 | KM6 | MB6 | H206 |
| H306 | 25 | 30 | 45 | 31 | 8 | M30×1.5 | 0.095 | KM6 | MB6 | H306 |
| H2306 | 25 | 30 | 45 | 38 | 8 | M30×1.5 | 0.11 | KM6 | MB6 | H2306 |
| H207 | 30 | 35 | 52 | 29 | 9 | M35×1.5 | 0.12 | KM7 | MB7 | H207 |
| H307 | 30 | 35 | 52 | 35 | 9 | M35×1.5 | 0.14 | KM7 | MB7 | H307 |
| H2307 | 30 | 35 | 52 | 43 | 9 | M35×1.5 | 0.16 | KM7 | MB7 | H2307 |
| H208 | 35 | 40 | 58 | 31 | 10 | M40×1.5 | 0.16 | KM8 | MB8 | H208 |
| H308 | 35 | 40 | 58 | 36 | 10 | M40×1.5 | 0.17 | KM8 | MB8 | H308 |
| H2308 | 35 | 40 | 58 | 46 | 10 | M40×1.5 | 0.22 | KM8 | MB8 | H2308 |
| H209 | 40 | 45 | 65 | 33 | 11 | M40×1.5 | 0.21 | KM9 | MB9 | H209 |
| H309 | 40 | 45 | 65 | 39 | 11 | M40×1.5 | 0.23 | KM9 | MB9 | H309 |
| H2309 | 40 | 45 | 65 | 50 | 11 | M40×1.5 | 0.27 | KM9 | MB9 | H2309 |
| H210 | 45 | 50 | 70 | 35 | 12 | M45×1.5 | 0.24 | KM10 | MB10 | H210 |
| H310 | 45 | 50 | 70 | 42 | 12 | M45×1.5 | 0.27 | KM10 | MB10 | H310 |
| H2310 | 45 | 50 | 70 | 55 | 12 | M45×1.5 | 0.34 | KM10 | MB10 | H2310 |
Adapter sleeve H2308 introduction:
Adapter sleeves are used for securing tapered bore bearings on to the cylindrical shafts, it easy mounting and dismounting
1. Adapter sleeves are used for securing tapered bore bearings on to the cylindrical shafts. They facilitate easy mounting and dismounting. They are suitable for both smooth and stepped shafts. The sleeves can easily adapt to the shaft diameter.
2. The adapter sleeves have slotted design and an external taper. They are usually not surface treated but oiled and are supplied with a lock nut and a locking device. They have an oil duct, distribution groove, and a threaded side. For stepped shafts, they have two supply ducts and distribution grooves on the outer surface.
3. Withdrawal sleeves are used for mounting tapered bearings on to the cylindrical shafts. They facilitate easy mounting, securing and dismounting. They are suitable for both smooth and stepped shafts. Bearing sleeve can easily adapt to the shaft diameter. They are usually coated with a preservative, are slotted and have an external taper. This allows the sleeve to be used with wide spherical roller bearings. Withdrawal sleeves for oil injection have oil ducts and distribution grooves, on the threaded side.
4. We supply the Adapter Sleeves in accordance with ISO H3/1-1979, both Metric and Inch.

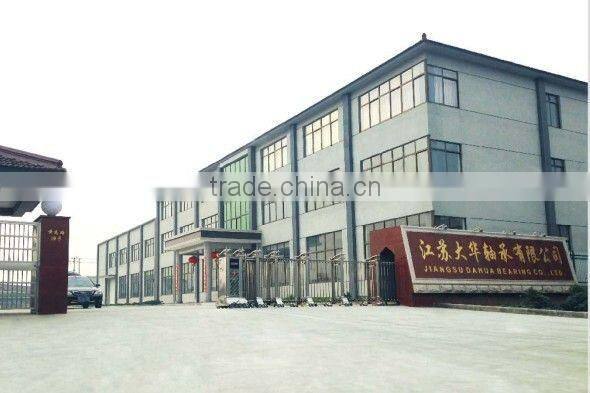

Adapter sleeve H2308 factory:
If there is anything I can do for you, feel free to contact me please. :)
Contact Us
- Shanghai Yinin Imp. & Exp. Co., Ltd.
- Contact nameAlex Lin Chat Now
- Phone86-21-68551627
- AddressRm. 905, No. 2123, Pudong Ave.
