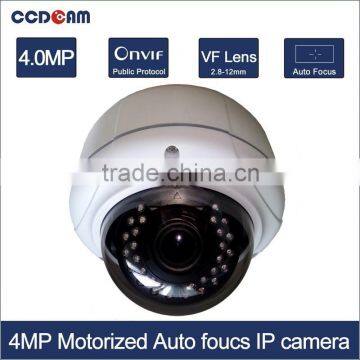

Night vision infrared 4mp CCTV motorized ip camera cmos sensor

Model

EC-IV7423Z

Camera Type

4.0MP real-time DWDR IP Camera

Camera

Image Sensor

1/3" CMOS  OV4689 + HI3516D

Effective Pixels

2592(H)x1520(V)

Day/Night

IR-CUT filter

Min.Illumination

Color 0.05Lux/F1.2 , B/W 0.01 Lux/F1.2

Electronic Shutter

1/50(1/60)s-1/100,000s

Lens

2.8-12mm Auto focus Motorized Lens

Lens Mount

CS Mount

IR-LED

30pcs 5 IR LED

Illuminate Distance

30m IR distance

Compression

Compression Standard

H.265/ H.264 Main Profile/ MJPEG

Video Frames

Real-time PAL/NTSC 2MP/3MP/4MP@1~30FPS

Video stream output

Support adjustable stream 0.1M ~ 10Mpbs


Quality

3D-DNR,BLC,AWB,auto ISO

Resolution

Main Stream:

2592×1520 22fps(4MP),2304×1296(3MP) 25fps

1920×1080 25fps(2MP),1280×720(1MP) 25fps

Sub Stream:640×360,720×480(1-25fps)

Network

Parameter Settings

WEB configure and OSD supported, Real time recording,
Transmission and playback, Download;Motion detection

Privacy Mask

Support 4 area can be set

Basic

Anti-flicker, Dual stream, Heartbeat, Password protection

Protocol

HTTP/Onvif/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/P2P

Alarm

Support Motion Detection, Linkage Alarm, Linkage recording,
 Sensor trigger alarm functions

Interface

Video Output

RJ45

Network Interface

1 RJ45 Ethernet interface, 10/100M adaptation

Audio interface

Audio encord

G.711

Audio input

1ch

Audio output

1ch
