Home > Products > permanent magnet > 38SH Industrial Application Cheap Ndfeb Magnets for Rare Earth Motor

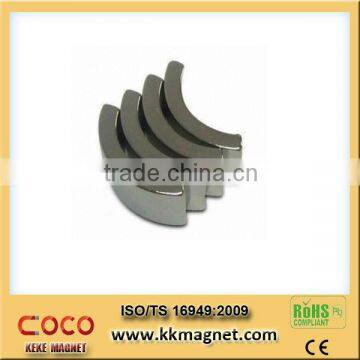

38SH Industrial Application Cheap Ndfeb Magnets for Rare Earth Motor
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
Sintered Ndfeb Magnet Frame
-
35M/38M/40M/42M/45M/48M Round Disc Shape Neodymium Monopole Magnet With Screw Hole
-
40H Round Disc Sintered Neodymium Magnet With Screw Hole
-
N38 Round Disc Sintered Neodymium Magnet With Screw Hole
-
Round Disc Sintered Neodymium Magnet With Screw Hole
-
Various Size Arc Shape Sintered Neodymium Magnet for Motor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | COCO | |
| Model Number | HY-014 | Type | Permanent | |
| Composite | Neodymium Magnet | Application | Industrial Magnet |
Product Description
ndfeb magnet for rare earth motor
Grade
| Item | Grade | Remanence;Br | Coercive Force;bHc | Intrisic Coercive Force;iHc | Max Energy Product;(BH)max | Working Temp. | ||||||||
| kGs | T | kOe | KA/m | kOe | KA/m | MGOe | KJ/m3 | |||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | |||||||
| N | N54 | 15.1 | 14.5 | 1.51 | 1.45 | ≥10.5 | ≥836 | ≥11 | ≥876 | 55 | 51 | 438 | 406 | ≤80 |
| N52 | 14.8 | 14.2 | 1.48 | 1.42 | ≥10.5 | ≥836 | ≥11 | ≥876 | 53 | 49 | 422 | 390 | ≤80 | |
| N50 | 14.5 | 14.0 | 1.45 | 1.40 | ≥11.0 | ≥876 | ≥12 | ≥955 | 51 | 47 | 406 | 374 | ≤80 | |
| N48 | 14.3 | 13.7 | 1.43 | 1.37 | ≥11.0 | ≥876 | ≥12 | ≥955 | 49 | 45 | 390 | 358 | ≤80 | |
| N45 | 13.8 | 13.2 | 1.38 | 1.32 | ≥11.0 | ≥876 | ≥12 | ≥955 | 46 | 42 | 366 | 334 | ≤80 | |
| N42 | 13.5 | 12.9 | 1.35 | 1.29 | ≥11.0 | ≥876 | ≥12 | ≥955 | 44 | 40 | 350 | 318 | ≤80 | |
| N40 | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.0 | ≥876 | ≥12 | ≥955 | 41 | 38 | 334 | 302 | ≤80 | |
| N38 | 13.0 | 12.2 | 1.30 | 1.22 | ≥11.0 | ≥876 | ≥12 | ≥955 | 40 | 36 | 318 | 287 | ≤80 | |
| N35 | 12.2 | 11.7 | 1.22 | 1.17 | ≥10.9 | ≥868 | ≥12 | ≥955 | 36 | 33 | 287 | 263 | ≤80 | |
| M | N52M | 14.8 | 14.2 | 1.48 | 1.42 | ≥13.3 | ≥1059 | ≥14 | ≥1114 | 43 | 49 | 422 | 390 | ≤100 |
| N50M | 14.5 | 14.0 | 1.45 | 1.40 | ≥13.1 | ≥1043 | ≥14 | ≥1114 | 41 | 47 | 406 | 374 | ≤100 | |
| N48M | 14.3 | 13.7 | 1.43 | 1.37 | ≥12.8 | ≥1019 | ≥14 | ≥1114 | 49 | 45 | 390 | 358 | ≤100 | |
| N45M | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.4 | ≥987 | ≥14 | ≥1114 | 46 | 42 | 366 | 334 | ≤100 | |
| N42M | 13.5 | 12.9 | 1.35 | 1.29 | ≥12.1 | ≥963 | ≥14 | ≥1114 | 44 | 40 | 350 | 318 | ≤100 | |
| N40M | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | ≥939 | ≥14 | ≥1114 | 41 | 38 | 334 | 302 | ≤100 | |
| N38M | 13.0 | 12.2 | 1.30 | 1.22 | ≥11.7 | ≥915 | ≥14 | ≥1114 | 40 | 36 | 318 | 287 | ≤100 | |
| N35M | 12.2 | 11.7 | 1.22 | 1.17 | ≥10.9 | ≥868 | ≥14 | ≥1114 | 36 | 33 | 287 | 263 | ≤100 | |
| H | N50H | 14.5 | 14.0 | 1.45 | 1.40 | ≥12.9 | ≥1027 | ≥16 | ≥1274 | 51 | 47 | 406 | 374 | ≤120 |
| N48H | 14.3 | 13.7 | 1.43 | 1.37 | ≥12.7 | ≥1011 | ≥16 | ≥1274 | 49 | 45 | 390 | 358 | ≤120 | |
| N46H | 14.0 | 13.4 | 1.40 | 1.34 | ≥12.5 | ≥995 | ≥17 | ≥1353 | 47 | 43 | 374 | 342 | ≤120 | |
| N44H | 13.7 | 13.1 | 1.37 | 1.31 | ≥12.3 | ≥979 | ≥17 | ≥1353 | 45 | 41 | 358 | 326 | ≤120 | |
| N42H | 13.5 | 12.9 | 1.35 | 1.29 | ≥12.1 | ≥963 | ≥17 | ≥1353 | 44 | 40 | 350 | 318 | ≤120 | |
| N40H | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | ≥939 | ≥17 | ≥1353 | 42 | 38 | 334 | 302 | ≤120 | |
| N38H | 13.0 | 12.2 | 1.30 | 1.22 | ≥11.5 | ≥915 | ≥17 | ≥1353 | 40 | 36 | 318 | 287 | ≤120 | |
| N35H | 12.4 | 11.7 | 1.24 | 1.17 | ≥11.0 | ≥876 | ≥17 | ≥1353 | 37 | 33 | 295 | 263 | ≤120 | |
| N33H | 11.7 | 11.3 | 1.17 | 1.13 | ≥10.5 | ≥836 | ≥17 | ≥1353 | 34 | 31 | 271 | 247 | ≤120 | |
| SH | N45SH | 14.0 | 13.4 | 1.40 | 1.34 | ≥12.5 | ≥995 | ≥20 | ≥1592 | 47 | 43 | 374 | 342 | ≤150 |
| N44SH | 13.7 | 13.1 | 1.37 | 1.31 | ≥12.3 | ≥979 | ≥20 | ≥1592 | 45 | 41 | 358 | 326 | ≤150 | |
| N42SH | 13.5 | 12.9 | 1.35 | 1.29 | ≥12.1 | ≥963 | ≥20 | ≥1592 | 44 | 40 | 350 | 318 | ≤150 | |
| N40SH | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | ≥939 | ≥20 | ≥1592 | 42 | 38 | 334 | 302 | ≤150 | |
| N38SH | 12.9 | 12.2 | 1.29 | 1.22 | ≥11.5 | ≥915 | ≥20 | ≥1592 | 40 | 36 | 318 | 287 | ≤150 | |
| N35SH | 12.4 | 11.7 | 1.24 | 1.17 | ≥11.0 | ≥876 | ≥20 | ≥1592 | 37 | 33 | 295 | 263 | ≤150 | |
| N33SH | 12.1 | 11.4 | 1.21 | 1.14 | ≥10.7 | ≥852 | ≥20 | ≥1592 | 35 | 31 | 279 | 247 | ≤150 | |
| UH | N42UH | 13.5 | 12.9 | 1.35 | 1.29 | ≥12.1 | ≥963 | ≥25 | ≥1990 | 44 | 40 | 350 | 318 | ≤180 |
| N40UH | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | ≥939 | ≥25 | ≥1990 | 42 | 38 | 334 | 302 | ≤180 | |
| N38UH | 12.9 | 12.2 | 1.29 | 1.22 | ≥11.5 | ≥915 | ≥25 | ≥1990 | 40 | 36 | 318 | 287 | ≤180 | |
| N35UH | 12.4 | 11.7 | 1.24 | 1.17 | ≥11.0 | ≥876 | ≥25 | ≥1990 | 37 | 33 | 295 | 263 | ≤180 | |
| N33UH | 12.1 | 11.4 | 1.21 | 1.14 | ≥10.7 | ≥852 | ≥25 | ≥1990 | 35 | 31 | 279 | 247 | ≤180 | |
| N30UH | 11.6 | 10.8 | 1.16 | 1.08 | ≥10.2 | ≥812 | ≥25 | ≥1990 | 32 | 28 | 255 | 223 | ≤180 | |
| EH | N38EH | 12.9 | 12.2 | 1.29 | 1.22 | ≥11.5 | ≥915 | ≥30 | ≥2388 | 40 | 36 | 318 | 287 | ≤200 |
| N35EH | 12.4 | 11.7 | 1.24 | 1.17 | ≥11.0 | ≥876 | ≥30 | ≥2388 | 37 | 33 | 295 | 263 | ≤200 | |
| N33EH | 12.1 | 11.4 | 1.21 | 1.14 | ≥10.7 | ≥851 | ≥30 | ≥2388 | 35 | 31 | 279 | 247 | ≤200 | |
| N30EH | 11.5 | 10.8 | 1.15 | 1.08 | ≥10.2 | ≥812 | ≥30 | ≥2388 | 32 | 28 | 255 | 223 | ≤200 | |
| AH | N33AH | 12.1 | 11.4 | 1.21 | 1.14 | ≥10.7 | ≥852 | ≥35 | ≥2786 | 35 | 31 | 279 | 247 | ≤230 |
| N30AH | 11.5 | 10.8 | 1.15 | 1.08 | ≥10.2 | ≥812 | ≥35 | ≥2786 | 32 | 28 | 255 | 223 | ≤230 | |
| N28AH | 11.2 | 10.4 | 1.12 | 1.04 | ≥9.70 | ≥772 | ≥35 | ≥2786 | 30 | 26 | 239 | 207 | ≤230 | |

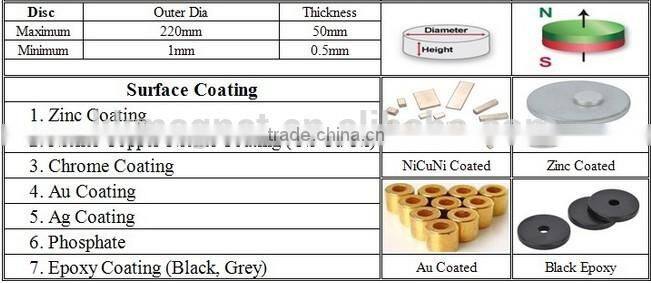

Shape,dimension,magnetic direction and coating
Application
Production process
Melting => Pulverizing => Aligning&Pressing => Sintering => Machining => Plating/Coating => Inspecting => Magnetization => Packing&Shipping
Packing
1. By Sea: They will be packed in a white box of pieces each, several boxes to a carton. (Detailed package quantity should be made upon the real products)
2. By Air: If the goods will be shipped by air, all the magnetic should be degaussed and we will use Iron sheet to shield.
Buyer Guide
In order to quote you the best price quickly . please provide the following information:
1. Product size . grade . coating. magnetic direction,quantity
2. Attached the drawing if customized
3. Any special packing or other requirement
