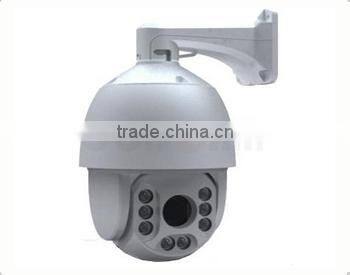

650 TVL 1/3'' SONY Effio DSP 7"High Speed Dome IR Camera

FOB Price

US$ 220 - 270 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

650 TVL 1/3'' SONY Effio DSP 7"High Speed Dome IR Camera

Feature:

EC-SP3025

[Product Features]
Image recognition technology, automatic search and track moving targets; identifi--cation and tracking number of targets can be set
tracking fast, sensitive, target multiples automatic zoom, motion,and the loss of target Parameters can be set;
tracking mode and multi-scene patrol tracking;the number of identification tracking and moving targets can be set
Some of cameras can callout menu display,DSP design,good Stablity.
Built-in memory to store the setting data, which can not be lost after power off
Continuous 360°pan turning, 90° tilt turning (180° auto flip).
Variable pan speed-between0.01-300°/s,Variable tilt speed-between0.01-300°/s
256 presets, 6 tour routes
Speed between preset points:Horizontal 300°/sec,Vertical300°/Sec
SONY,HITACHI,SANYO,SAMSUNG,LG,CNB,CANON optional
Protocol compatible;RS-485 interface
Weather proof design, protection grade IP65
Built-in power surge/lightning protection
Abnormal automatic recovery, network outages automatically connect function
1/3"SONY Effio DSP,650TVL 30x Optical Camera inside

Specification

[Product Parameters]
Pan Movement:	360 °continuous pan rotation
Vertical Movement:	180°turn over automatically ,no shadow region
Pan:	0.01 ° - 300 ° / S; Tilt: 0.01 ° - 300 ° / S
Presets:	256; Address range:0-255
Cruising route:	5,16 presets each route
Guarding point:	duration adjustable limit point scan speed adjustable
Scan automatically:	speed adjustable
Camera recognition:	HITACHI SONY SANYO SAMSUNG LG CNB CANON
Baud Rate:	(RS-485)2400/4800/9600/19200bps
IR distance :	1-120m
[Structural Parameters]
Upper shield:	high strength double layer aluminum alloy, high temperature resistance, corrosion resistant
Lower shield:	high class acrylic bubble
Installation method:	wall mounting/lifting/inseting/ceiling
Environment:	indoor/outdoor
Input Voltage:	DC12V
Power Consumption :	10W IR OFF, 50W IR ON
Operating Temperature:	0-60℃indoor,-40--60℃outdooor

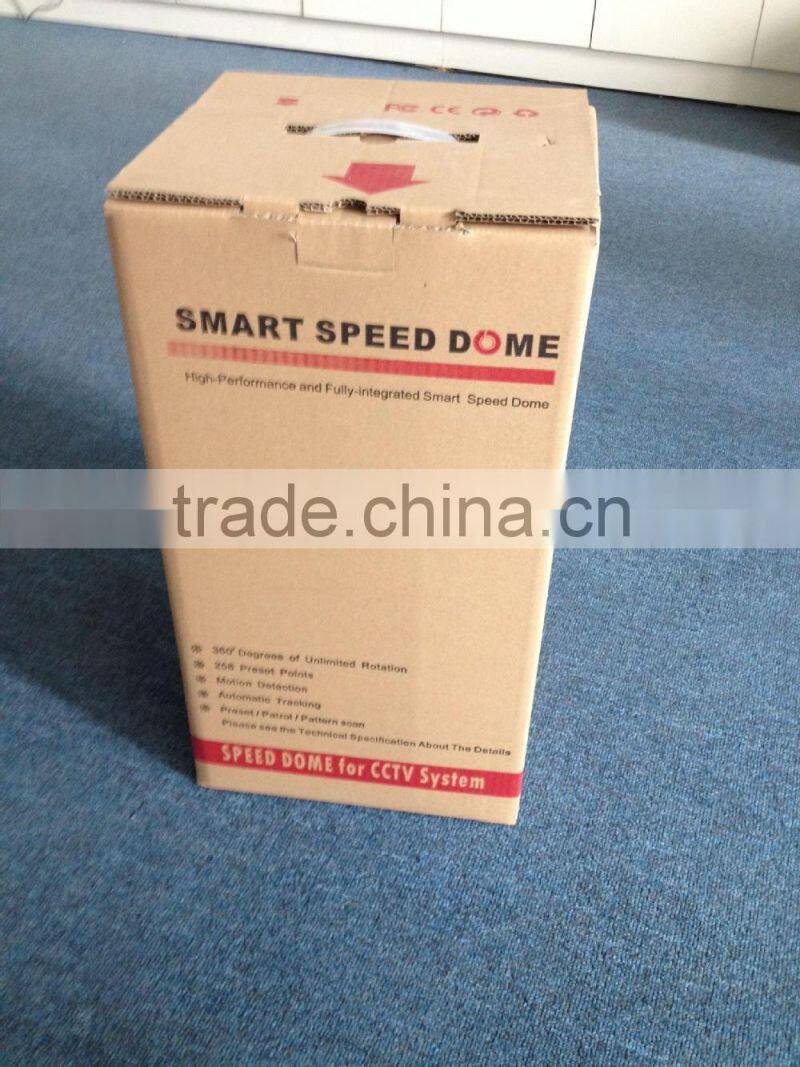

ptz 6-7'' packaging

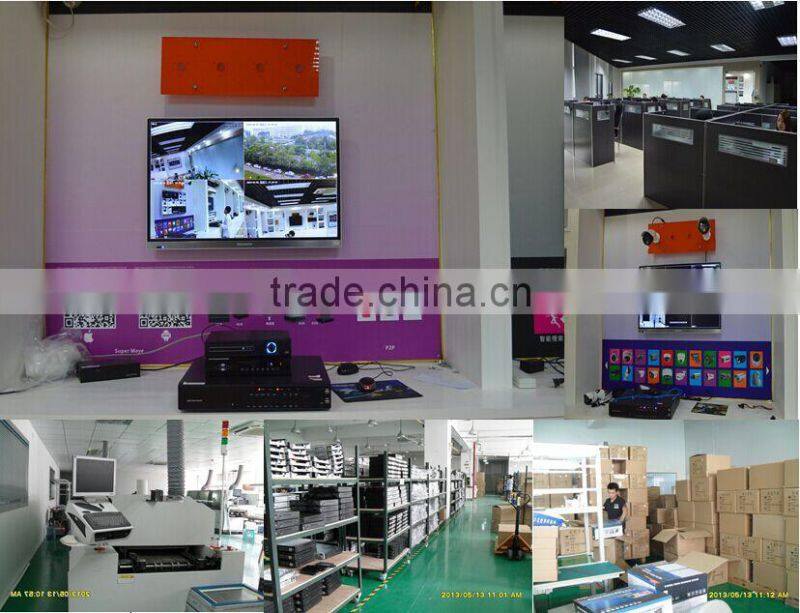

Factory Picture
