Surveillance 4ch 960P P2p Cctv Dvr Kit Camera System

AHKIT3114

AHD DVR

System

Main processor

High performance embedded microprocessor

Operating system

Embedded LINUX operating system

System resources

Pentaplex function: Live, recording, playback, backup& remote access

Control mode

USB mouse, Network

Video

Input

4CH,AHD/Analog input BNC(1.0Vp-p, 75Ω)

Output

1HDMI, 1 VGA

Standard

PAL / NTSC

Audio

Input

4CH, RCA(200-2800mV,30KΩ)

Display

Display split

1CH  960P / 4CH 960H

Resolution

1080P(1920*1080), 1080H(960*1080) ,720P(1280*720), 960H, D1, CIF

OSD

Camera title, time, video loss, camera block,

motion detection, recording

Record

Video resolution

H.264

Audio resolution

adpcm,G711

Image resolution

1080P(1920*1080), 1080H(960*1080) ,

960P(1280x960)

960H(960x576,960x480),D1

CIF(352 X 288/352 X 240)

Encoding speed

Main stream: CH1~4  960P/960H(1~25/30FPS)

Sub stream: CIF(1~5FPS),QCIF(1~5FPS)

Image quality

1~6 level (level 6 is the best),VBR effectively

Record mode

Manual, schedule(always, motion detection, video lost,

video blind, alarm), stop

Record sequence

Manual>Alarm>Motion detection>General

Alarm

Triggering event

Record, Snapshot, Alarm, Email

Motion detection

Area: 192(16*12), Sensitivity: 1-6 level

Video loss

Support

Playback and backup

Playback channel

4ch 960P/960H

Playback speed

960H 100/120FPS ,D1 100/120FPS

Search mode

Time/Date, Alarm, Motion detection Exact search(accurate to second)

Playback function

Play, Pause, Stop, Fast play, Slow play, full screen, backup

Back mode

Flash drive/USB HDD/CD-DVD RW/Network download

Network

Interface

RJ-45 port(10/100M)

Network functions

TCP/IP,UDP,DHCP,DNS,IPFilter,PPPoE,DDNS,FTP,Email,UPNP,P2P

Remote operation

Monitor, PTZ control, Playback, System setting, File download, Log information

Hard disk

Interface management

1 SATA ports, each port support max 4TB HDD standby technology ,HDD failure alarm

Auxiliary interface

USB Ports

2 USB Ports: 1 for mouse control, 1 for backup

Environment

Power supply

DC 12V,3A

Environment

-10°C~+55°C/10~90%RH/86~106kpa

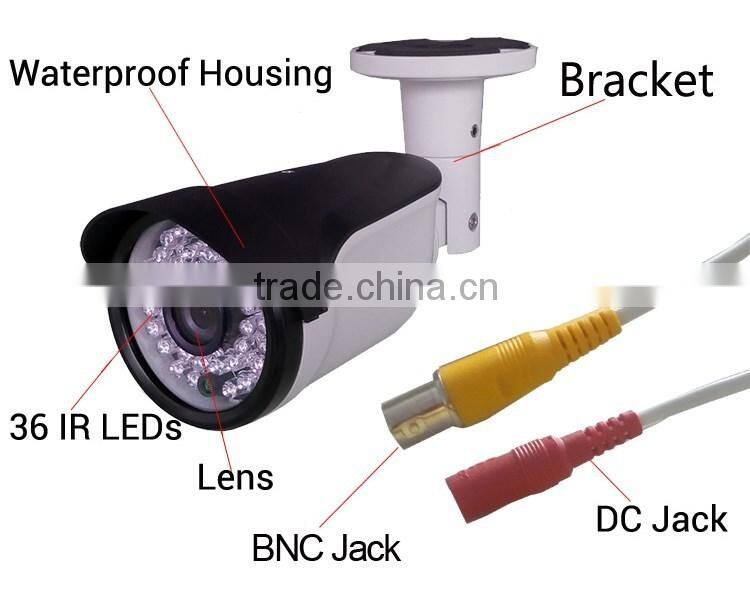

4*AHD Camera

Camera Type

960P AHD camera 1.3 megapixel 1/4 CMOS

Effective Pixels

PAL:1280x960@25fps NTSC:1280x960@30fps

IR-LED

36pcs IR led 30m IR Distance

Day/Night

IR-CUT filter Color 1.0Lux/F1.2,B/W 0.1Lux/F1.2

Electronic Shutter

4/25-1/45,000s

Lens

3.6/6mm Fixed Lens

Lens Mount

C/CS

Output

1CH   AHD Video output

Work environment

-10°C~60°C90%RH

Power

DC 12V±10%


Auto BLC,Auto White Balance

Max tansmission

common 75-3 lines can be up to 500 m
