Stainless steel and IP20 used street light poles

Specifications

 OPERATION INSTRUCTION

                FOR

       SPOT LIGHT

 MUST BE INSTALLED BY REGISTERED ELECTRICIAN

NOTE:

Before starting of installation ,please read this OPERATION INSTRUCTION carefully.

If the glass is broken during transport ,please change it immediately.

INSTALLATION DIRECTION:

1.Cut off the power before installation

2.Check all these spare part of the light ,make sure all of them are completely well.

3.Connect the wires,pls be noted that this light must be connected with earth wire.

4.Install light base. use the screws and other spare parts to finish the installation of the light base.

5.Open the light cover, if there is no bulb supplied by manufacturer ,user must fix a GU10 or MR16 ,MR11 bulb by yourself.

6.Close the light cover.

7.Turn on the power.

8.This is the end of the total installation.

SPECIAL ATTENTION:

  IF THE BASE IS GX5.3 or G4 THE LIGHT MUST BE CONNECTED WITH A SUITABLE TRANSFORMER.

CHANGING BULB DIRECTION:

1.Turn off the power.

2.Remove the light cover and the cooled bulb carefully

3.Install the new bulb carefully

4.Connect the light cover with the light carefully.

5.Turn on the power.

            IMPORTANT

 Must be installed by a qualified

      electrical contractor.

 Install in accordance with AS/NZ3000

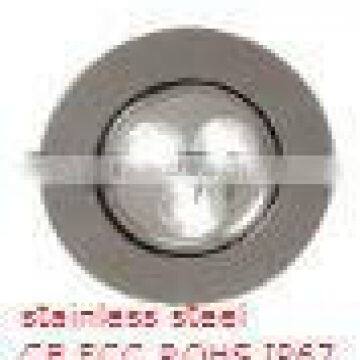

Product information

1.Stainless steel wax moulding casting body

2.Protection class is IP20

3.Special remark:

•Stainless steel grade includes 316 marine grade and 304 stainless steel

•Stainless steel body is electrophoresis finishing

Picture information:
