Aluminum Enclosure Junction Box Explosion Proof IP65

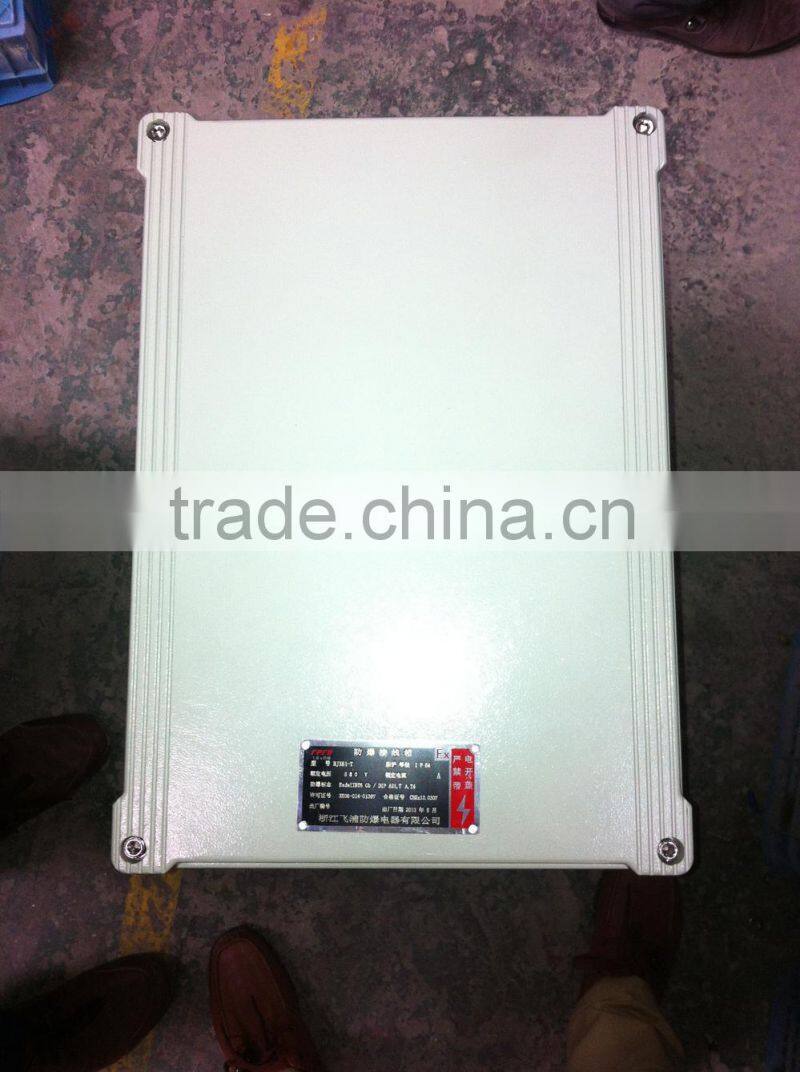

 Aluminum enclosure Junction box explosion proof IP65

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category IIA, II B and II C where the temperature classification is T1-T6.

3. Hazardous zone : 20. 21. and 22

4. Flammable dust atmosphere.

5. Widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T6.
• Various types terminals for options.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0,  IEC60079-1,  IEC60079-7,  IEC61241-1,  EN60079-0, EN60079-1, EN60079-7, EN61241-1
• Ex-proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, Exe II T6 Gb, DIP A21 TA, T6.
• Rated voltage: AC380V
• Protection grade: IP54,IP65
• Corrosion-proof grade:WF1
• Inlet Thread: G¹/₂"~G3"

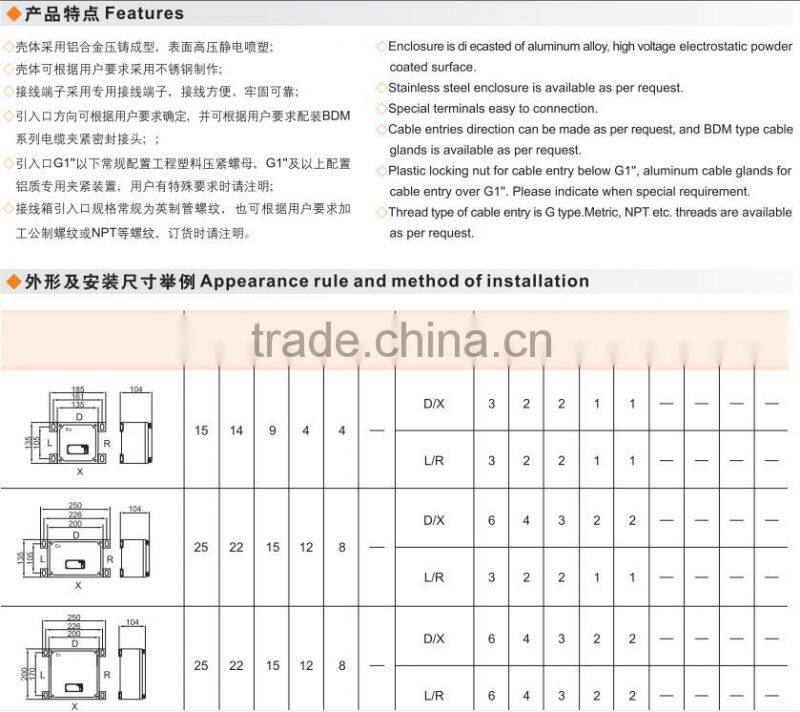

Product Features:

• Aluminium alloy Enclosure,high-pressure electrostatic powder coated after shot plastic.
• Stainless steel enclosure can be available on clients' request.
• Exclusive terminals, easy to connection.
• Cable entries direction can be made as per request, BDM type cable glands are available on request.
• Plastic locking nut for cable entry below G1", aluminum cable glands for cable entry over G1". Please indicate If special requirements.
• G type  Cable entry thread, also Metric, NPT etc. threads are available If request.

Welcome to visit FPFB online marketing display.

To serve you in a better and efficient way, please browse our products  and contact us with following information.

1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?

2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.

3. Your preference on light source, power and installation methods etc.

We will offer our best products and prices according to your actual demand.
