BHY Industrial Recessed Emergency Light Double Tube 2*18w 2*36w

BHY industrial recessed emergency  light double tube 2*18w 2*36w

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T5.

3. Lamp options: high light, fluorescent lamp.

4. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.

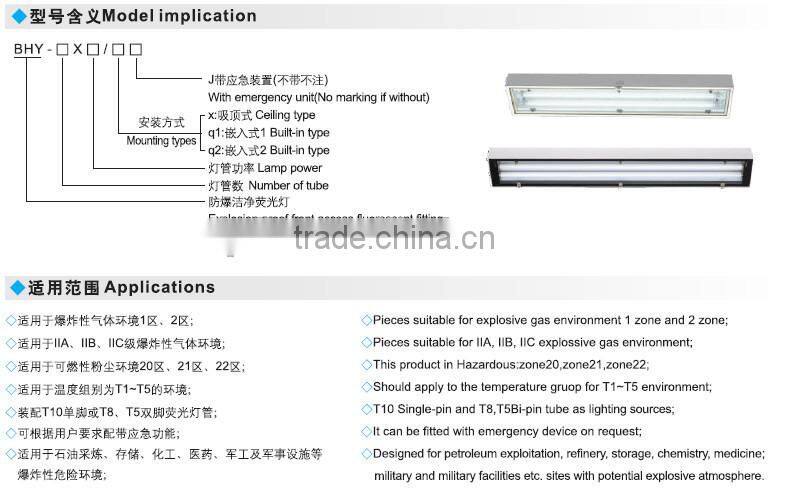

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T5.
• T10 Single-pin and T8, T5Bi-pin tube as lighting sources.
• It can be fitted with emergency device on request.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

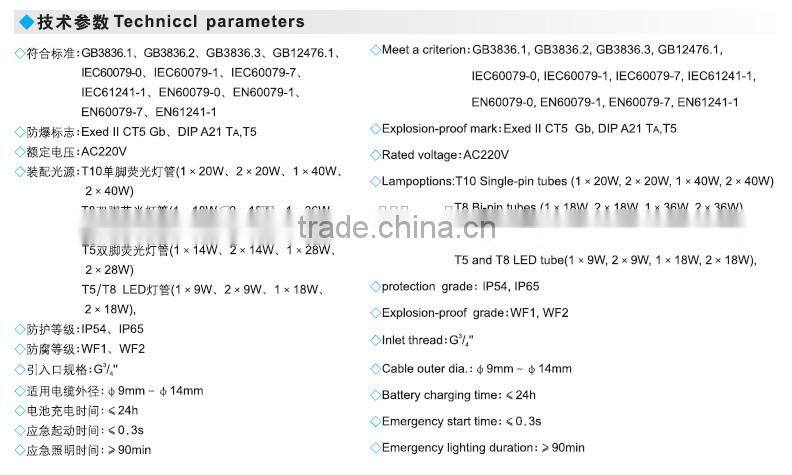

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3,  GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1,EN60079-7, EN61241-1,
• Ex-proof Mark:Exed II CT5 Gb, DIP A21 TA, T5.
• Rated voltage: AC220V
• Ligting Source: T10 Single-pin tubes(1×20W,2×20W,1×40W,2×40W)
                        T8 Bi-pin tubes(1×18W,2×18W,1×36W,2×36W)
                        T5 Bi-pin tubes(1×14W,2×14W,1×28W,2×28W)
                        T5 and T8 LED tube(1×9W, 2×9W,1×18W,2×18W)
                        Detail Plz refer the blew table.
• Protection grade:IP54,IP65
• Corrosion-proof grade:WF2,WF1
• Inlet Thread: G3/4"
• Cable outer dia:9mm~14mm
• Battery charging time:≤24h
• Emergency Start time:≤0.3s
• Emergency lighting duration:≥90min

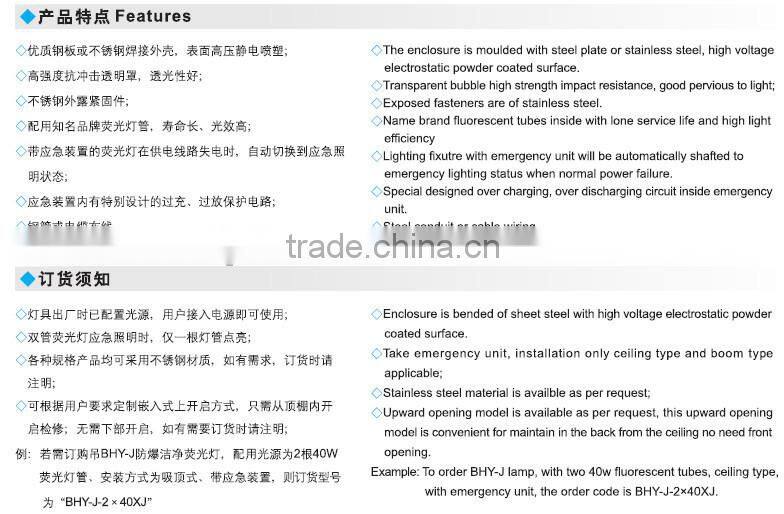

Product Features:

• Steel plate or stainless steel Enclosure, high voltage electrostatic powder coated surface.
• Transparent bubble high strength impact resistance, good pervious to light
• Exposed fasteners are of stainless steel.
• Take name brand fluorescent tube with long service life and high light efficiency.
• For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
• Inside the emergency unit designed with over charging and over discharging protection circuit.
• Steel conduit or cable wirings.

Order Information :

• Lamps has factory configuration light source, can be used directly access power;

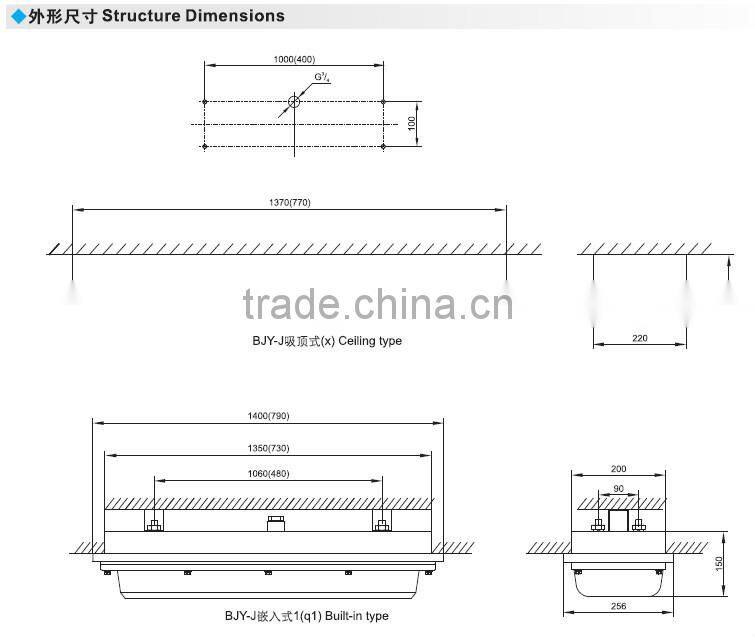

• Take emergency unit, installation only ceiling type and boom type applicable;
• When double tube fluorescent lamp start emergency unit, Only one tube work.
• Stainless steel material is available as per request,

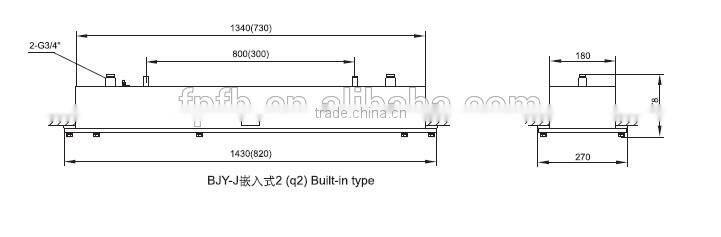

• Upward opening model is available as per request, this upward opening model is convenient for maintain in the back from the ceiling no need front opening.

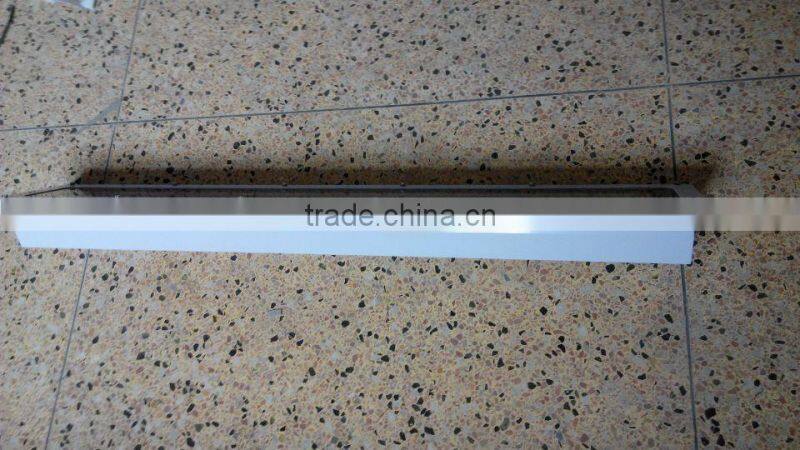

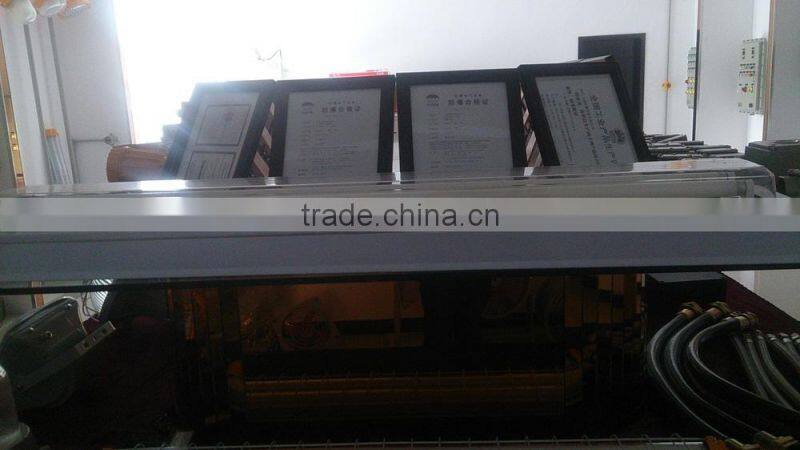

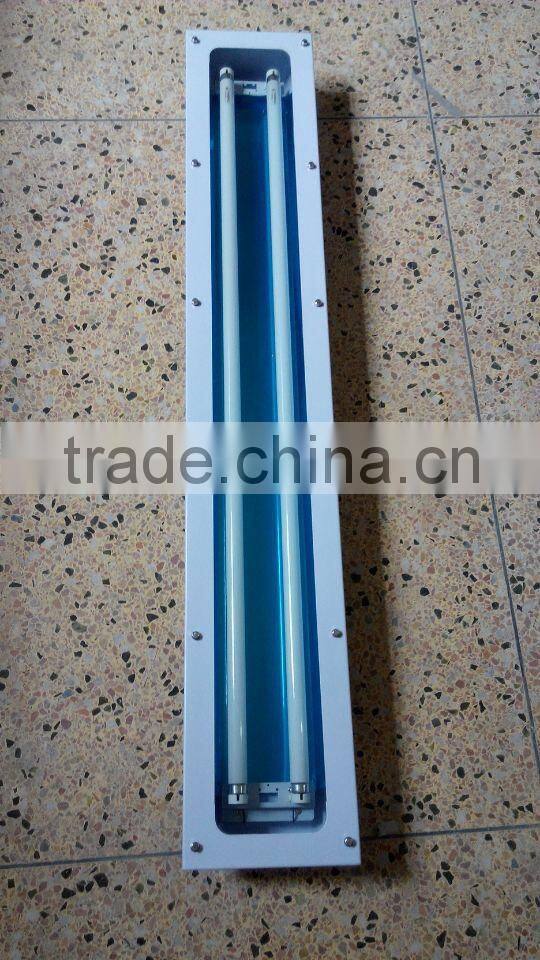

                                                                      SAMPLE  PICTURE

Welcome to visit FPFB online marketing display.

To serve you in a better and efficient way, please browse our products  and contact us with following information.

1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?

2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.

3. Your preference on light source, power and installation methods etc.

We will offer our best products and prices according to your actual demand.
