Home > Products > HDMI Cables > HDMI CABLE

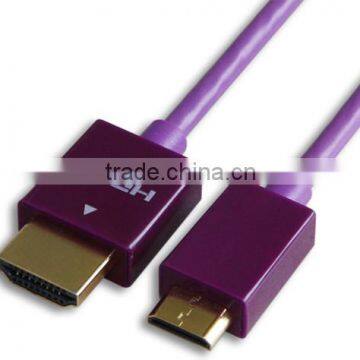

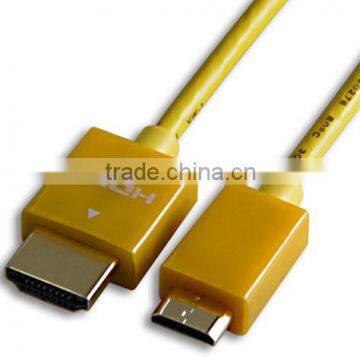

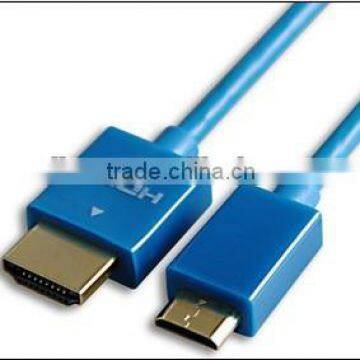

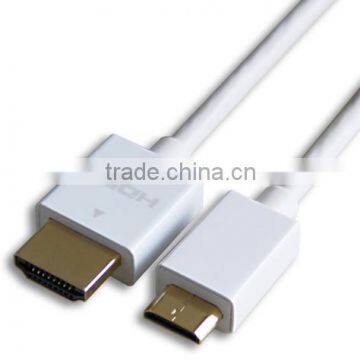

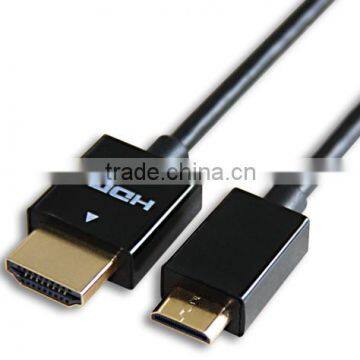

HDMI CABLE
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Type | Twisted Pair | |
| Application | DVD Player | Color | Black | |
| Packing | Polybag | Outer Diameter | 4.0 | |
| Connector Color | Gold | Connector Type | HDMI | |
| Shielding | Braid | Gender | Male-Male |
Product Description
Specifications
1)34awg2)L=3FT TO 15FT(1M TO 15M)
3)COLOR :BLACK/WHITE/BLUE/RED/GRAY
4)OD=4.0mm
Specifications
High Definition HDMI cable 1.4 Version
1.24 K Gold plated HDMI Cable
2.10.2Gbps,ARC,2160P
3.1080P,4K*2K,3D,Ethernet
4.R
High Definition Flat HDMI cable 1.4 Version
High definition picture from HYX HDMI cable
Specification for HDMI cable 1.4V
Version | 1.4V, (1.3V is available) |
Connector | 19-pin male to male,24K gold-plated |
Shell | Full metal (zinc) shell or PVC Shell |
Conductos | High quality 99.99% pure oxgen-free copper |
Available gauge | 24/26/28/30/32AWG |
Lengths: | 0.5m to 50m |
Certification | RoHS,UL,CE,FCC,ATC |
Main Function | 1080P,10.2Gbps Max , 4K*2K, 3D, Ethernet, ARC(Audio Return Channel) |
Shielding | Aluminum foil+mylar+copper braiding |
Cable | 3.8*13.8mm |
Ferrite | optional |
Nylon sleeve | optional |
Main features for HYX HDMI cable

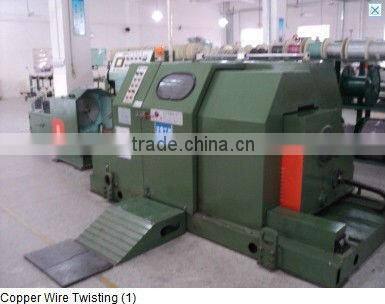

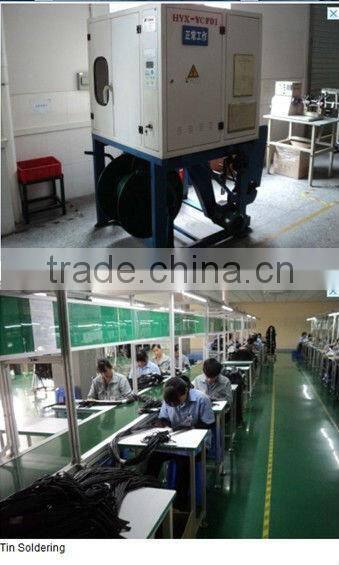

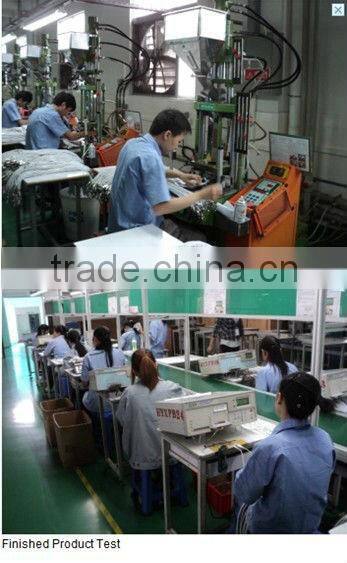

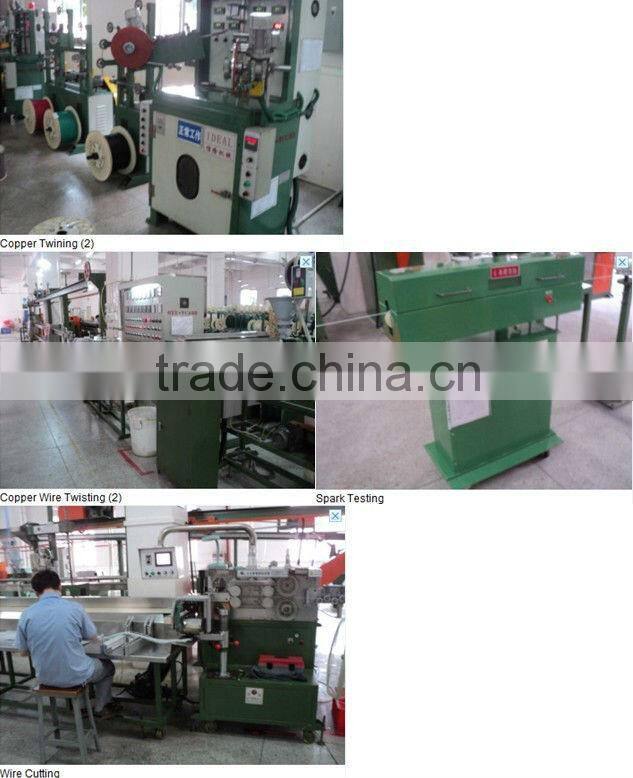

Test flow control during production
Comparision Chart 1.3V & 1.4V
HDMI version | 1.3V | 1.4V |
sRGB | √ | √ |
YCbCr | √ | √ |
8 channel LPCM, 192 kHz, 24 bit audio capability | √ | √ |
Blu-ray Disc and HD DVD video and audio at full resolution | √ | √ |
Consumer Electronic Control (CEC) | √ | √ |
DVD-Audio support No | √ | √ |
Super Audio CD (DSD) support | √ | √ |
Deep Color | √ | √ |
xvYCC | √ | √ |
Auto lip-sync | √ | √ |
Dolby TrueHD bitstream capable | √ | √ |
DTS-HD Master Audio bitstream capable | √ | √ |
Updated list of CEC commands | √ | √ |
3D Over HDMI (see following picture A) | × | √ |
Ethernet Channel (see following picture B) | × | √ |
Audio Return Channel (see following picutre C) | × | √ |
4k × 2k Resolution Support (see following picture D) | × | √ |
Picture A: 3D Over HDMI
Picture B: Ethernet Channel
Picture C: Audio Return Channel
Picture D: 4k × 2k Resolution Support
Why Hoyxn is specail?
