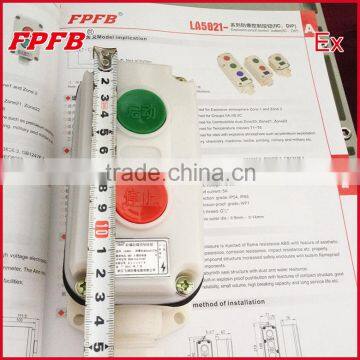

IIC DIP Explosion proof control pushbutton

 IIC DIP Explosion proof control pushbutton

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category IIA and II B IIC where the temperature classification is T1-T4.

3. Steel conduit or cable wiring.

4. Flammable dust atmosphere.

5. widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for explosion zone20,21,22.
• Can be used in the environment of  temperature group for T1~T6.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion: GB3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079-0, IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1, EN60079-7, EN61241-1.
• Ex-proof mark: Exde II BT6 Gb, DIP A21 TA,T6.
• Rated voltage: AC220/380V
• Rated current: 5A
• Protection grade: IP54, IP65
• corrosion-proof grade: WF2
• Inlet thread: G3/4"
• Cable outer dia:Φ9mm~Φ14mm

Product Features:

• Flame resistance ABS enclosure, Features of nice appearance, corrosion resistance, impact resistance etc. property.
• Compound structure increased safety enclosure with built-in flameproof components.
• Labyrinth seal structure with dust and water resistance.
• Built-in explosion proof pushbutton with features of compact structure, good reliability, small volume, high breaking capacity and long service life etc.
