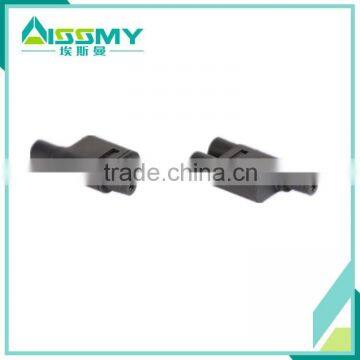

2.5mm2-6mm2 wire mc3 solar assembly connector
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Aissmy | |
| Model Number | MC3 | Type | Other, mc3 solar assembly connector | |
| Application | Other, PV Solar system | Gender | Other, Male and female |
Product Description
2.5mm2-6mm2 wire mc3 solar assembly connector
2.5mm2-6mm2 wire mc3 solar assembly connector description:
Mating safety provided bykeyed housings.
High current carrying capacity.
Acomodates PV cable with different insulation diameters.
Simple on-site processing.
Multiple plugging and unplugging cycles .
TUV and UL approved
2.5mm2-6mm2 wire mc3 solar assembly connector technical parameters:
| Model No. | Part P/N | Cable sepcial | ||
| Connector | Terminal | Conductor size (mm²) | Cable OD (ΦDmm) | |
| MC3-CMMM-14 | MC3-CMMM-H | MC3-CM-T14 | AWG 14 (2.5 mm²) | Φ4.5- Φ6.5 |
| MC3-CMMM-12 | MC3-CM-T12 | AWG 12 (4.0 mm²) | ||
| MC3-CMMM-10 | MC3-CM-T10 | AWG 10 (6.0 mm²) | ||
| Model No. | Part P/N | Cable special | ||
| Connector | Terminal | Conductor size (mm²) | Cable OD(mm) | |
| MC3-CFPM-14 | MC3-CFPM-H | MC3-CF-T14 | AWG 14 (2.5 mm²) | Φ4.5- Φ6.5 |
| MC3-CFPM-12 | MC3-CF-T12 | AWG 12 (4.0 mm²) | ||
| MC3-CFPM-10 | MC3-CF-T10 | AWG 10 (6.0 mm²) | ||
| Rated current | 30A(2-6mm²) | |||
| Rated voltage | 1000V DC | |||
| Test voltage | 6000V(50Hz,1min) | |||
| Overvoltage type/pollution degree | CAT III/2 | |||
| Contact resistance of plug connector | Im Ω | |||
| Contact material | Copper, Tin-plated | |||
| Insulation material | PPO | |||
| Degree of protection | IP2X/IP67 | |||
| Flame class | UL94-VO | |||
| Safety class | II | |||
| Suitable cable | OD 4.5-6.5 (2.5-6.0mm²) | |||
| Insertion force/withdrawal force | ≤50N/≥50N | |||
| Connecting system | Crimp connection | |||
| Temperature range | -40℃~+90℃ | |||
Company profile:
Aissmy is a company which designs, researches and develops energy-saving products, at promotion for energy-saving technology, specially manufactures intelligent permanent high and low voltage electrical equipments and accessories,intelligent solar power generation system (suitable for outdoor environment with solar module monitoring function) and electrical automation equipment.
Aissmy has set up R&D center, manufacturing department, marketing department, foreign trade department, quality department and other core institutions. We surely can design contactors according to your demands.
Sincerely wish hearing from you soon!
