Steel Structure With Good Price Steel Structural Project Cost

Opinions

1)We can supply all kinds of steel structures, steel building, metal building, modular house,   steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts

2)We can also make and develop new parts according to customers' drawings and detailed dimensions

Specifications

1)Size: MOQ is 200m2, width X length X eave height, roof slope

2)Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors

3) Base: Cement and steel foundation bolts

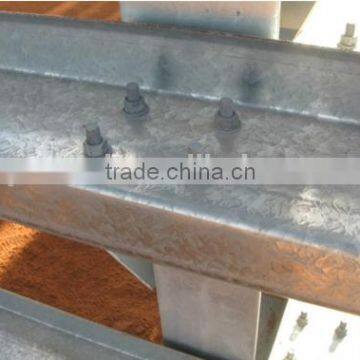

4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section

5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc

6) C or z purlin: Size from C120~C320, Z100~Z200

7) Roof and wall panel: Single colorfull corrugated steel sheet0.326~0.8mm thick,(1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm

8)Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Glavanized gutter, etc

9)Surface: Two lays of Anti-rust Painting

10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ

Design Parameters

If you need we design for you, pls supply us the following parameter together with detail size

1)Live load on roof(KN/M2)

2)Wind speed(KM/H)

3)Snow load (KG/M2)

4)Earthquake load if have

5) Demands for doors and windows

6)Crane  (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure and min wheelpressure!
