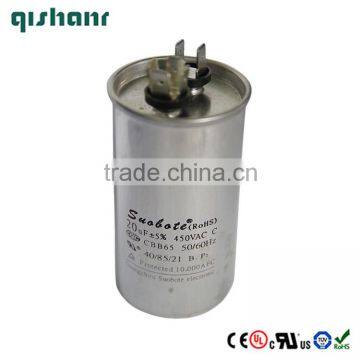

Air Conditioner AC 450V 20uF 50/60Hz Motor Run Film Capacitor CBB65
Negotiable
/ Piece
10 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Guangzhou/Shenzhen/Hong Kong
- T/T Credit Card
You May Like
-
Electric Fan Capacitor CBB61 450VAC 50/60Hz 10uF Though Hole Package
-
CBB65 AC 450V 15uF 5% 50/60Hz Cylinder Polypropylene Film Motor Capacitor
-
Fan blower start capacitor CBB61 450V 9uF 50/60Hz good price
-
8uF 450VAC CBB61 AC Motor Capacitor with Pins factory price
-
CBB61 Sh Polypropylene Capacitor (plastic case) 7uF 450VAC
-
CBB65A AC 450V 10uF Non Polar Polypropylene Film Motor Capacitor
Product Details
| Place of Origin | China | Model Number | CBB65 | |
| Type | Polypropylene Film Capacitor | Application | Other, air-conditioners, refrigerators, generators, illuminating lamps | |
| Package Type | Surface Mount | Capacitance | 20uF | |
| Rated Voltage | 450VAC 50/60Hz | Operating Temperature | 40/70/21 40/85/21 |
Product Description
Product Description
CBB65 Metallized polypropylene film dielectric ac capacitors (round)
1)The product has low loss, high insulation resistance, good self-healing properties;
2)Stable, resistant to impact current, overload capacity and other characteristics;
3)Is equipped with an internal explosion devices, use of safe and reliable3. Is equipped with an internal explosion devices, use of safe and reliable;
4)It is widely used for air-conditioners, refrigerators, generators, illuminating lamps, etc.
Technical Data
Technical data and performance indicators:
1)Detailed specification: GB/T3667.1-2005 ; IEC252;
2)Climatic category: 40/085/21 ; 40/070/21
3)Frequency: 50/60Hz ;
4)Capacitance tolerance: ± 5%;
5)Leads to the head and shell: ≥ 1000 MΩ;
6)Loss tangent: tg6≤ 0.002 （100Hz）
7)Test voltage: the first between the leads: 2 UR, 60s no breakdown, leads to the head and shell 2000 VAC, 60s no breakdown;
8)Security level: P2;
9)Certification: CQC, TUV, CE, UL.
Overall Size
Detailed Images
