GJ-60A high speed CNC spring coiling machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Shenzhen Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Guangjin
Model Number	GJ-60A		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

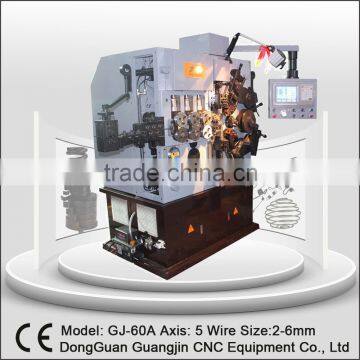

GJ-60A cnc spring coiling machine

Features

1, The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improving greatly.

2, Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine

3, Simple repetitive programming cooperates with the probe speed can be set for producing flat springs etc., manifold cycles

4, ensure that the 100% Taiwan imported, superior quality

GJ-60A spring coiling machine

Technical Parameters

Product name	cnc spring coiling machine
Model	GJ-60A
Axis Count	5 axis
Wire Size Range	Φ2mm~Φ6mm
Max Feeding Length	Unlimited
Wind direction	Right and Left Hand
Max Feeding Speed	150m/min
Min Setting Value	0.01mm
Max Setting Value	9999.99mm
Outside Diameter	≤ Φ120mm
Min Cam Seting Value	0.1°
Max Cam Setting Value	359.9°
Wire Feed Servo Motor	15kw
Cutter servo motor	4.5kw *2
Pitch Servo motor	2.0kw
Cam Motor	4.5w
Dimension(LxWxH)	1300x1200x2100mm
Weight	5000kg

Samples

Service and Order

Our Advantages

1, 12 years' experience in this area

2, Experienced employee and international famous components make the machine high stable and accuracy.

3, We research and develop new machines or modify machines according to clients' products.

4, Get trusted by famous company, Midea, TK, etc. And, our machines art exported to more than 10 countries.

Service

1, Making samples for free after getting your order

2, 1 year warranty

3, Free training to your engineer

4, Lifetime maintenance

Packaging & Shipping

Packaging

The spring machine are packed in a very fir wood case, and the machines are protected by plastic film inside.

Company profile

Dongguan city guang jin CNC equipment co., LTD Is engaged in the computer spring machine, compression spring machine, professional production, research and development, design, sales, service as one of the famous high-tech enterprises in guangdong province, product marketing in Europe and southeast Asia and other countries and regions,deeply domestic and foreign customers favor!"Guang jin" can be the development and manufacture according to customer's personalized needs of different specifications of the models.

OUR MACHINES

CERTIFICATES
